Acquiring and Displaying Waveforms
3–20
TDS 500D, TDS 600B, & TDS 700D User Manual
To set the probe attenuation to its default value, press VERTICAL MENU ➞
Probe Functions (main) ➞ Set to Unity External Attenuation (side).
Attaching a probe also sets the probe attenuation to its default value.
Check the Record View to determine the size and location of the waveform
record and the location of the trigger relative to the display. (See Figure 3–7.)
Check the Time Base readout at the lower right of the display to see the
time/division settings and the time base (main or delayed) being referred to. (See
Figure 3–7. Also see Figure 3–5 on page 3–16.) Since all live waveforms use the
same time base, the oscilloscope only displays one time base and time/division
setting for all the active channels.
Record View Readout
Time Base Readout

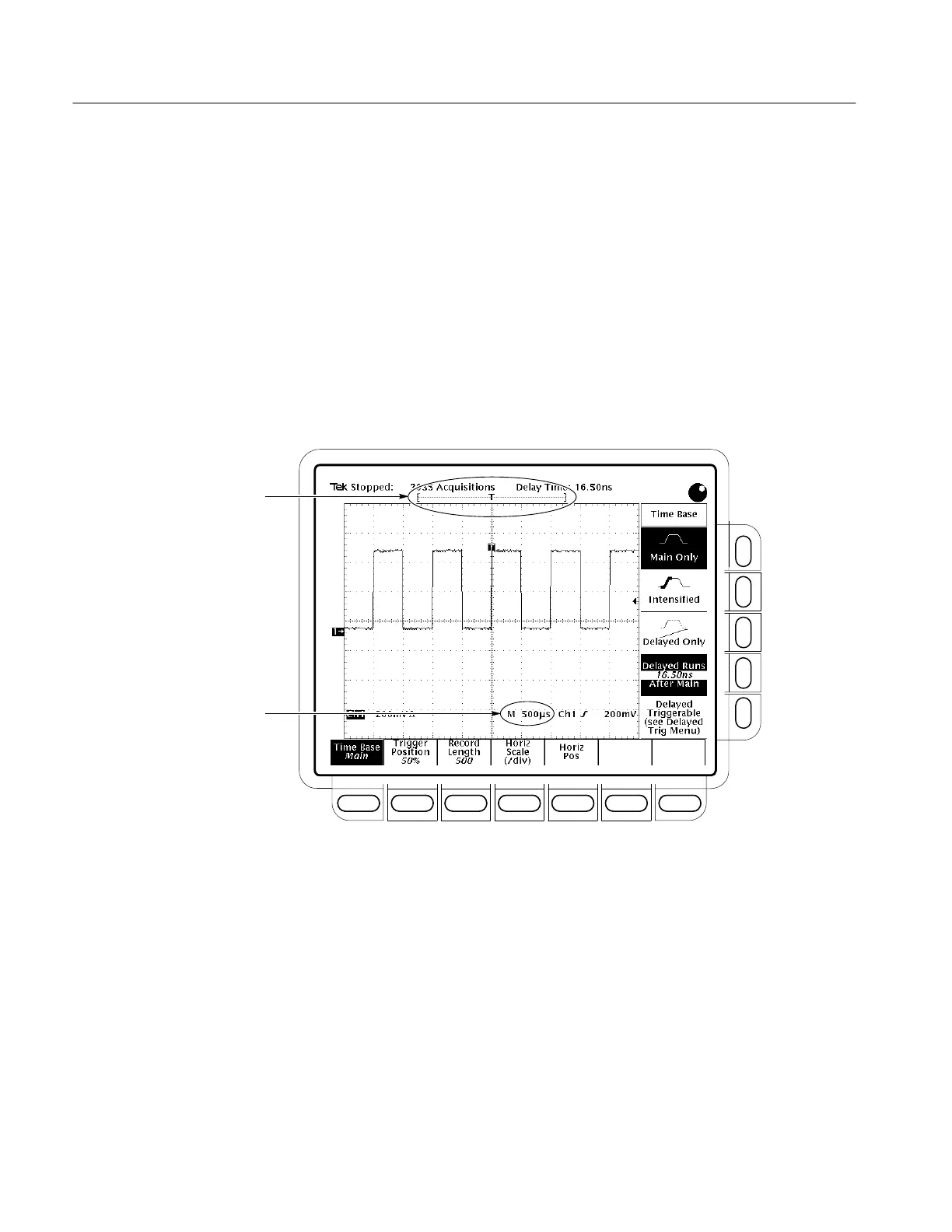

Figure 3–7: Record View and Time Base Readouts
