Triggering on Waveforms
TDS 500D, TDS 600B, & TDS 700D User Manual
3–115
To select which source you want for the trigger:
Press TRIGGER MENU ➞ Type (main) ➞ Comm (pop-up) ➞
Source (main) ➞ Ch1, Ch2, Ch3, or Ch4 (side).
To select the code, press TRIGGER MENU ➞ Type (main) ➞ Comm
(pop-up) ➞ Code (main) ➞ AMI, CMI, or NRZ (pop-up).
You can set mode and holdoff for all standard trigger types and classes. To set
mode and holdoff, refer to Set Mode & Holdoff on page 3–85. To learn more
about trigger mode and holdoff, see Trigger Modes and Trigger Holdoff on
page 3–75.

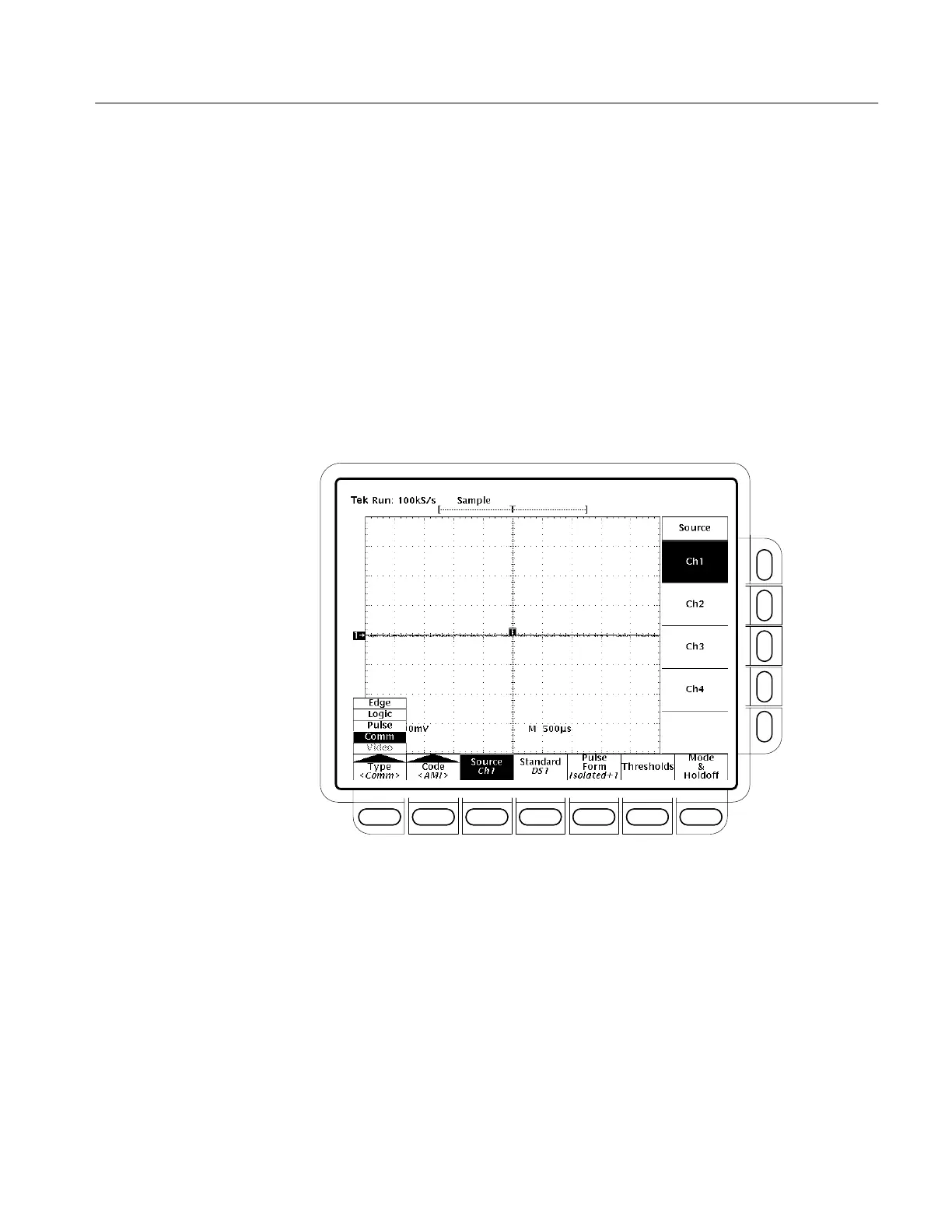

Figure 3–53: Main Trigger Menu — Comm Type
To Select a Source
To Specify Code
To Set Mode & Holdoff
