Using Logo Genera tor
Reset Values bu
tton resets all of the settings to the values that were in effect
when the dialog box was first displayed.
Default Value
s button resets all of the settings to their default values.
Update Display button enables all of the settings with the dialog box opened.
Miscellaneous Settings dialog box. The Miscellaneous Settings dialog box
(following figure) appears after you click the Miscellaneous ... command.

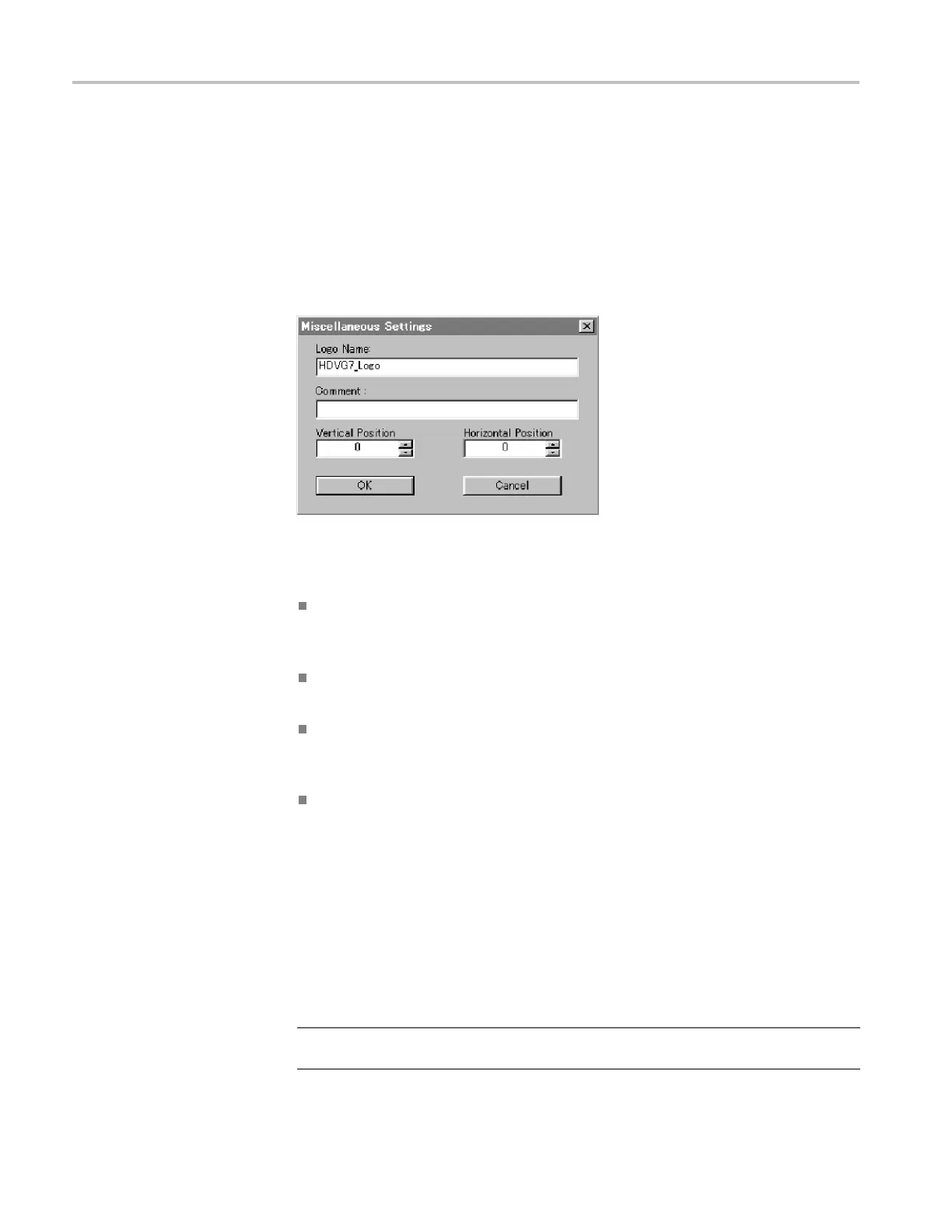

Figure 10: Miscellaneous Settings dialog box
In this dialog box, you can set the following parameters:
Logo Name: Sets t he logo name. This logo name is used when you select a
logo from the LOGO OVERLAY submenu of the DVG7 or HDVG7 module.
The default logo name is the file name.
Comment: Sets the user c omment described in the logo file. You need not
enter any comments in gene ral use.
Vertical Position: Sets the vertical position where the logo is displayed on the
monitor. You can set the value from -100% to 0%. The vertical position can
be set from the LOGO OVERLAY submenu of the DVG7 or HDVG7 module.
Horizontal Position: Sets the horizontal position where the logo is displayed
on the monitor. You can set the value from -100% to 0%. The h orizontal
position can be set from the LOGO OVERLAY submenu of the DVG7 or
HDVG7 module.
Help menu
The Help menu contains a command that displays the Logo Generator application
version information. The following table describes the Help menu command.
Table 13: Logo Generator Help menu command
Command
Function
About LogoG en... Displays information including the Logo Generator software
version number and copyright information.
22 TG8000 Multiformat Test Signal Generator PC Tools Technical Reference
