4.11 Router mode
In Router mode, this device serves as a router to provide a wireless network.
Application scenario
The CPE is used to provide a wireless network and assign IP addresses to your wireless devices.

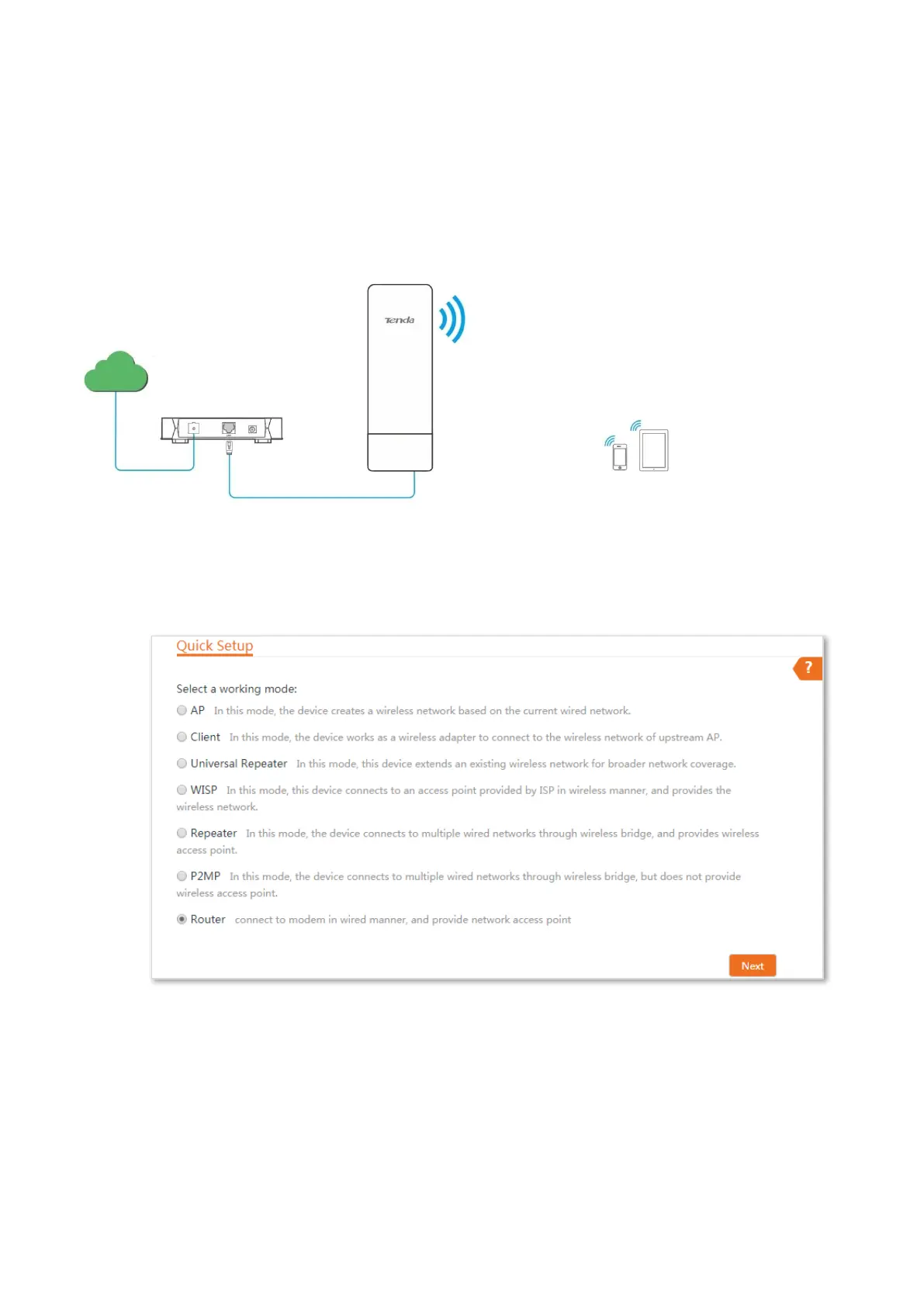

The network topology is shown as below:
Configuration procedures:
Step 1 Log in to the web UI of the CPE, and choose Quick Setup to enter the configuration page.
Step 2 Select Router mode, and click Next.
Step 3 Select your internet connection type, and set the related parameters. Take PPPoE as an
example here.
1. Select PPPoE.
2. Enter the PPPoE User Name and Password provided by your internet service provider,
which are both admin in this example.
3. Click Next.
