TermaTech A/S, Gunnar Clausens Vej 36, DK-8260 Viby J www.termatech.com 21-12-2023 LP Item no. 99-274
8 Drawings with explanatory captions

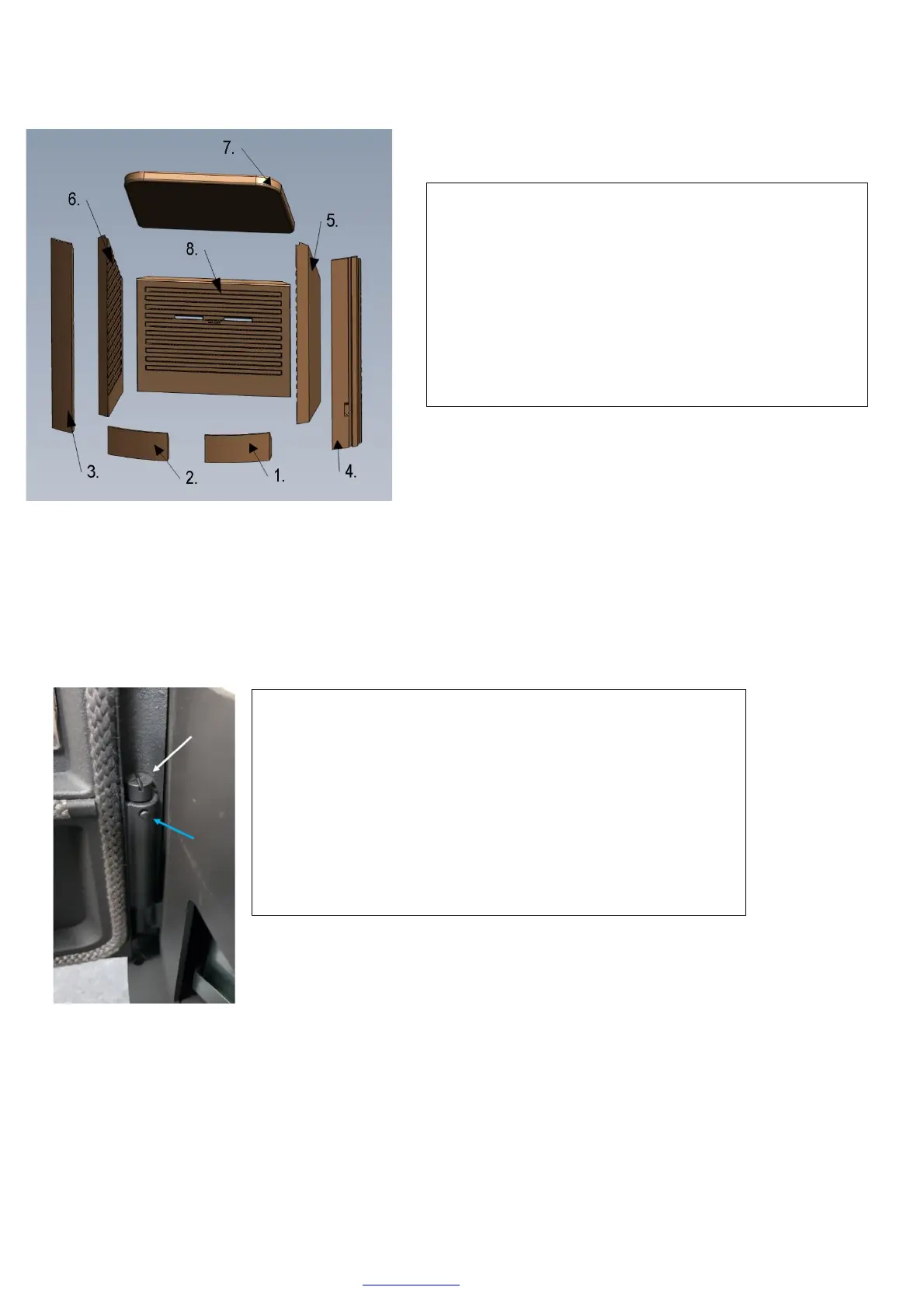

8.1 Replacement of insulation panels
Type: All models in the series
8.2 Adjusting the self-closing door mechanism (Bauart 1)
Type: All models in the series
In the door/hinge of your wood stove, there is a spring that causes the door to close automatically when you release the handle. If
you wish to disable this function, you can remove the cotter pin with the lens head (in the lower hinge), which will release the
tension from the spring. This can be easily done using a flathead screwdriver and a pair of pliers. Please be cautious as there is a
significant amount of tension on the spring. It's important to note that self-closing is not a requirement in all countries.
1. First, remove the two vermiculite pieces at the front,
labeled as Nr.1 and Nr.2.
2. Next, remove the two vermiculite pillars on the left
and right sides, labeled as Nr.3 and Nr.4.
3. Then, remove the two vermiculite sides, labeled as
Nr.5 and Nr.6.
4. Finally, remove the vermiculite smoke deflector plate
labeled as Nr.7 and the vermiculite back plate labeled
as Nr.8.
Installation of Vermiculite: This is done in the reverse
order. Start with Nr.8, then Nr.7, and so on...
Disabling Auto-Close function:
Tighten the screw (indicated by the white arrow) slightly (clockwise)
and remove the pin (indicated by the blue arrow). Slowly and gently
release the screwdriver due to the spring tension.
Activating Auto-Close / Bau-art function:
Tighten the screw appropriately (clockwise) and reattach the pin
(indicated by the blue arrow). The screw should be adjusted as
needed based on how quickly you want the door to close.
