8.10 Installation of air intake for connection of external combustion air, item number 09-162
8.11 Smoke control area – Damper Control unit installation
Type: All models in the series if installed in a “smoke control area” in England.
Installation in a smoke control area requires the additional assembling / installation of the ”Damper
control unit” which must be installed by the installer. Make sure that the damper control unit is placed and mounted like below. The
damper control unit works as a “stop for closing combustion air” and there must be 23mm distance between handle of damper and
the upper grill (see illustration below)

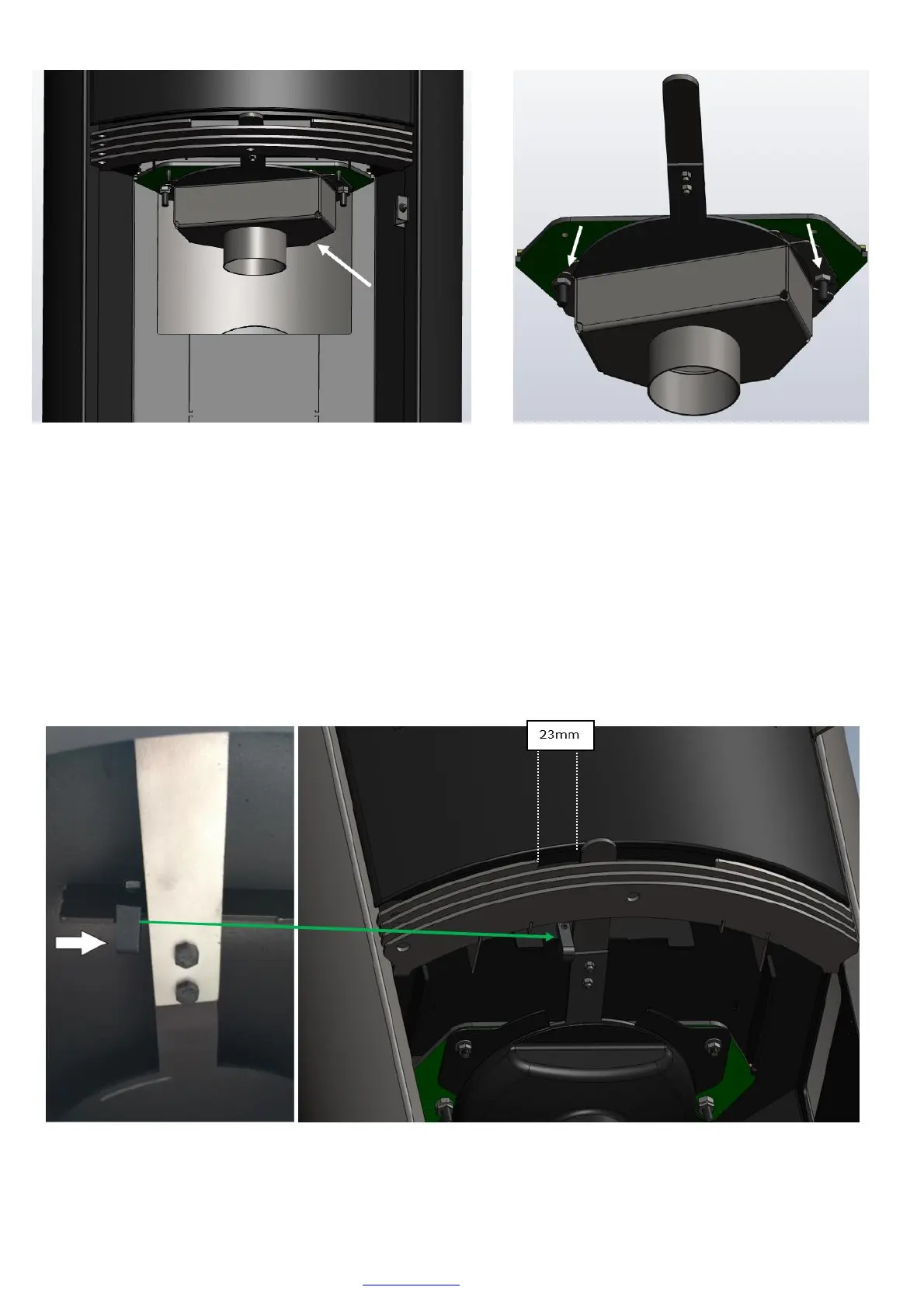

1. Open the door to the wood compartment. Remove the heat
shield and install the air nozzle here. Refer to the white arrow.
2. Mount the air intake as shown in the picture
above. Use the two nuts and two flat washers
provided in the cardboard box. First, attach the
flat washer, then the nut. Use one nut and one
flat washer for each threaded rod. Refer to the
white arrows.
