8.6 Assembly of Heat Storage Stones
Type: TT21RHT
5. To ensure that the stones do not
tilt when the door is opened and
closed, tighten the 4 Allen screws at
the top lightly. Refer to the black
rings.
7. The stove is now ready for use. The approximately 48 kg heat
storage stones will ensure that the stove remains warm for a long
time, even after the fire has gone out.

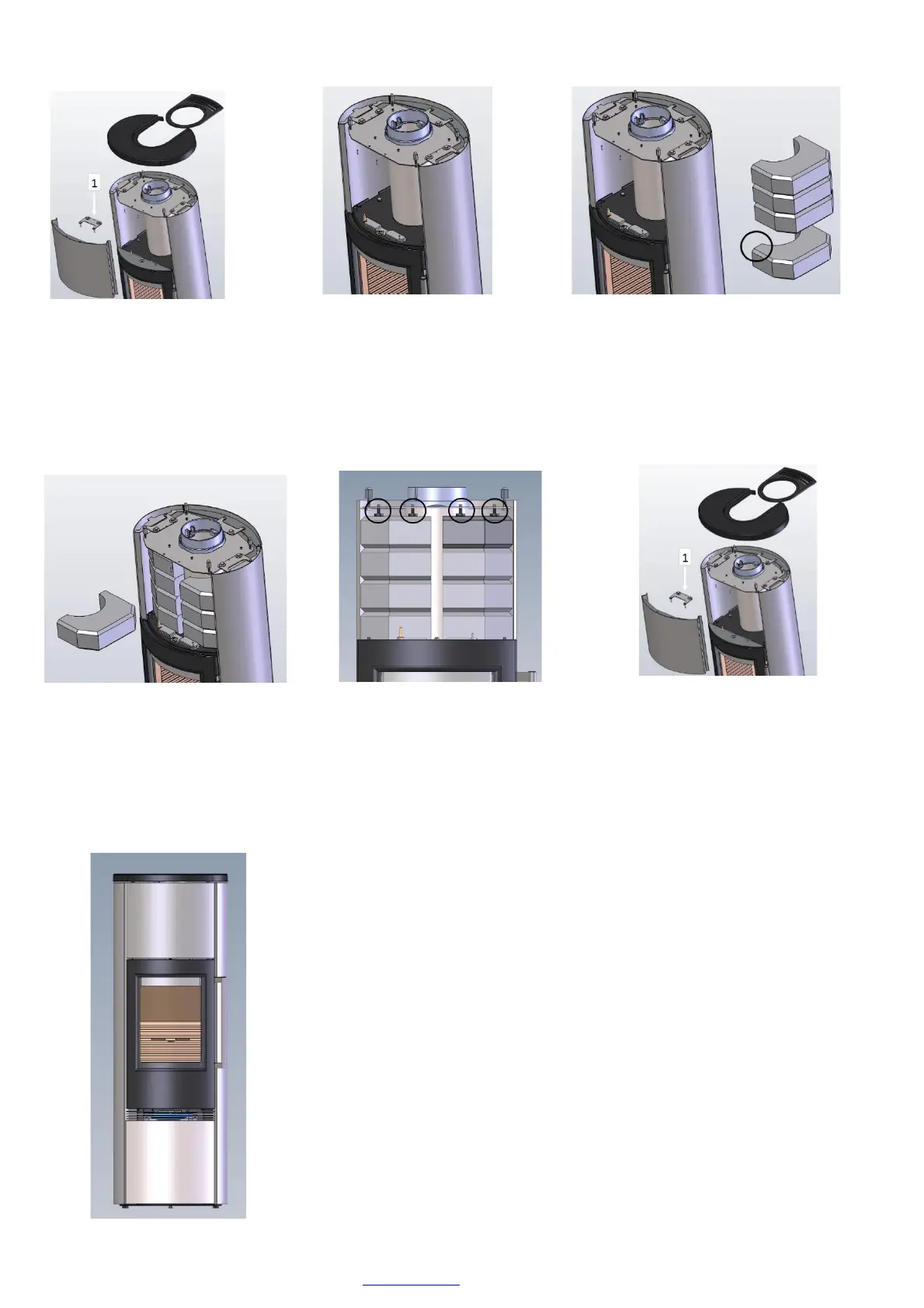

1. Lift the top plate. Then,
remove bracket no. 1. Lift
the front plate clear of the
yellow assembly cones -
move the front plate
towards the left and then
pull it free on the right
side.
2. Once the front is
removed, the heat storage
stones can be assembled.
3. Note that the widest part of the
stone should face forward. Refer to
the black ring in the image.
4. Insert the stones alternately on the
left and right - rotate the stones 7+8
into place. Ensure an appropriate
distance to the inner smoke pipe as
well as to the back plate and to the left
and right sides of the stove.
6. The front plate is now ready
to be assembled. Slide the left
edge into the left side panel
and then adjust it into the
right side. Then lower the
front plate over the yellow
assembly cones. Adjust the
front to the sides and then
mount bracket 1.
NOTE: Stones may have stone dust - therefore, it's
always a good idea to wear gloves.
