4. Display and control elements
10
4.2 LED functions
The LED functions can be switched on/off via
testo ComSoft software.
In all modes:
The Alarm led flashes three times every 15 seconds if the
remaining battery capacity is less than10% (even if Alarm led is
deactivated).
Wait
mode and
Key start
start criterion programmed:
The status led flashes five times if the
GO
button is kept pressed
for approx. 3 s (even if the Status led is deactivated).
It is confirmation that the measuring program was started and
that the data logger is now in the
Record
mode.
Record
mode:
The Alarm led flashes once every 15 s if alarm values have been
exceeded (only if Alarm led is activated).
The Status led flashes once every 15 s (only if the Status led is
activated).
It is confirmation that the measuring program is running.
The Status led flashes five times if the
GO
button is kept pressed
for approx. 3 s (even if Status led is deactivated).
It is confirmation that a time mark has been set.
2
Reference values (See 11.6 Battery
life, P. 33)
3
The battery symbol is updated
when:
- the wraparound memory is full
- measurement program is
started/ended
- In
Record
mode:
Once a day
- the
GO
button is pressed:
if last measurement was more than
24 hours ago

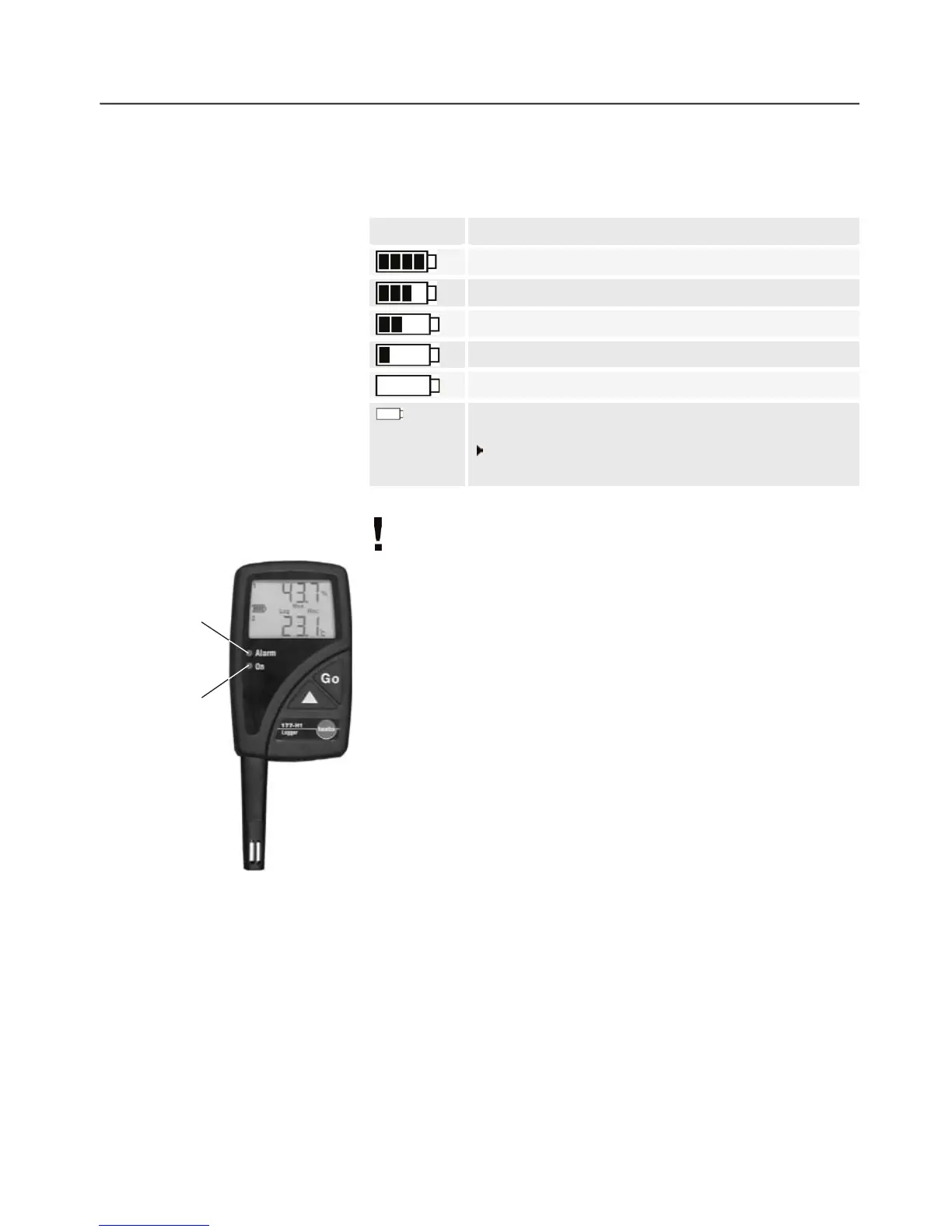

Alarm led
(red LED)
Status led
(green LED)
Symbol
3
OFF
Capacity
75-100%
50-75%
25-50%
10-25%
<10%
Battery empty (measuring program was stopped)
Reading out data and changing battery (See
9. Changing battery, P. 26)
