3.3 Machine base frame (optional)
Various machine base frame versions are possible.
Consult the general arrangement drawings.
Setting up
The machine base frames are set up with insulation elements (see Chapter 8
Machine insulation) on a machine support in the plant room or directly on the
plant room floor.
Location and arrangement of isolation elements

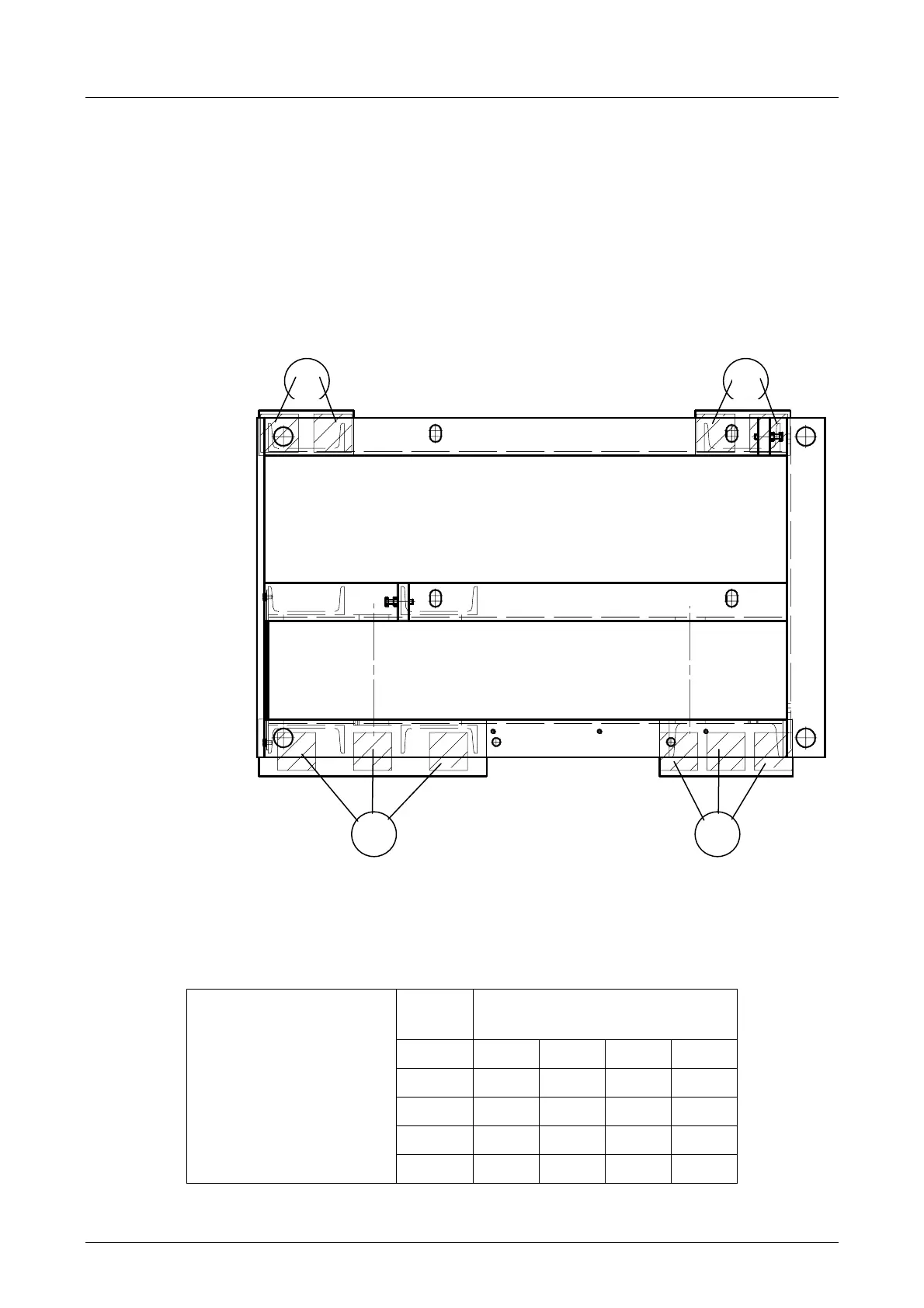

Machine base frame DAF380 with number and location of isolation
elements
Static total load
on all isolation
elements
Number and location of
isolation elements
kN G1 G2 G3 G4
to 95 2 2 3 3
to 80 1 2 3 3
to 65 1 1 2 3
to 50 1 1 2 2
Fig. 3.3.3
G1
G3
G
4
G2
16
08-2011
