7.8 Replacing the encoder
Disassembly:
• Pull off the plug connector for the encoder connection at the control
system.
• Unscrew the encoder cover from the rear bearing bracket of the machine
and pull it off in an axial direction.
• Use a hexagon socket spanner M 2.5 to loosen the clamping screw on
the locking ring.
• Grip the encoder by the housing and carefully pull it off the shaft end.
1 Locking screw
2 Mounting sleeve
3 Locking ring
4 Fixing pin
5 Encoder housing
6 Supporting bolt seat
7 Cable gland

Technical data,
see Chapter 3

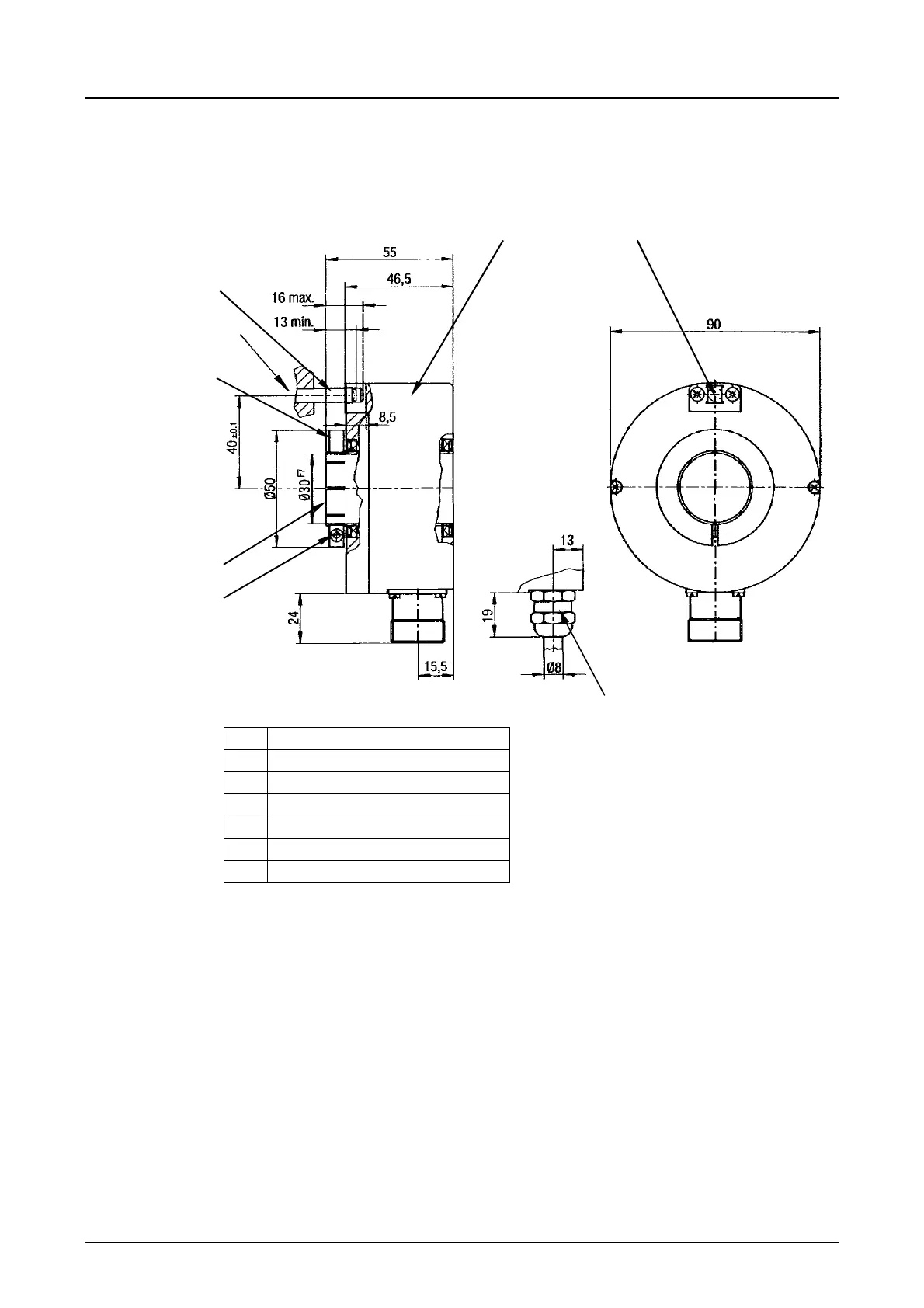

Fig. 7.8.1

6
1
2
3
4
5
7
Onshaftend

42
08-2011
