O PERATING M ANUAL DAF380 T ECHNOLOGY
ThyssenKrupp Aufzugswerke GmbH

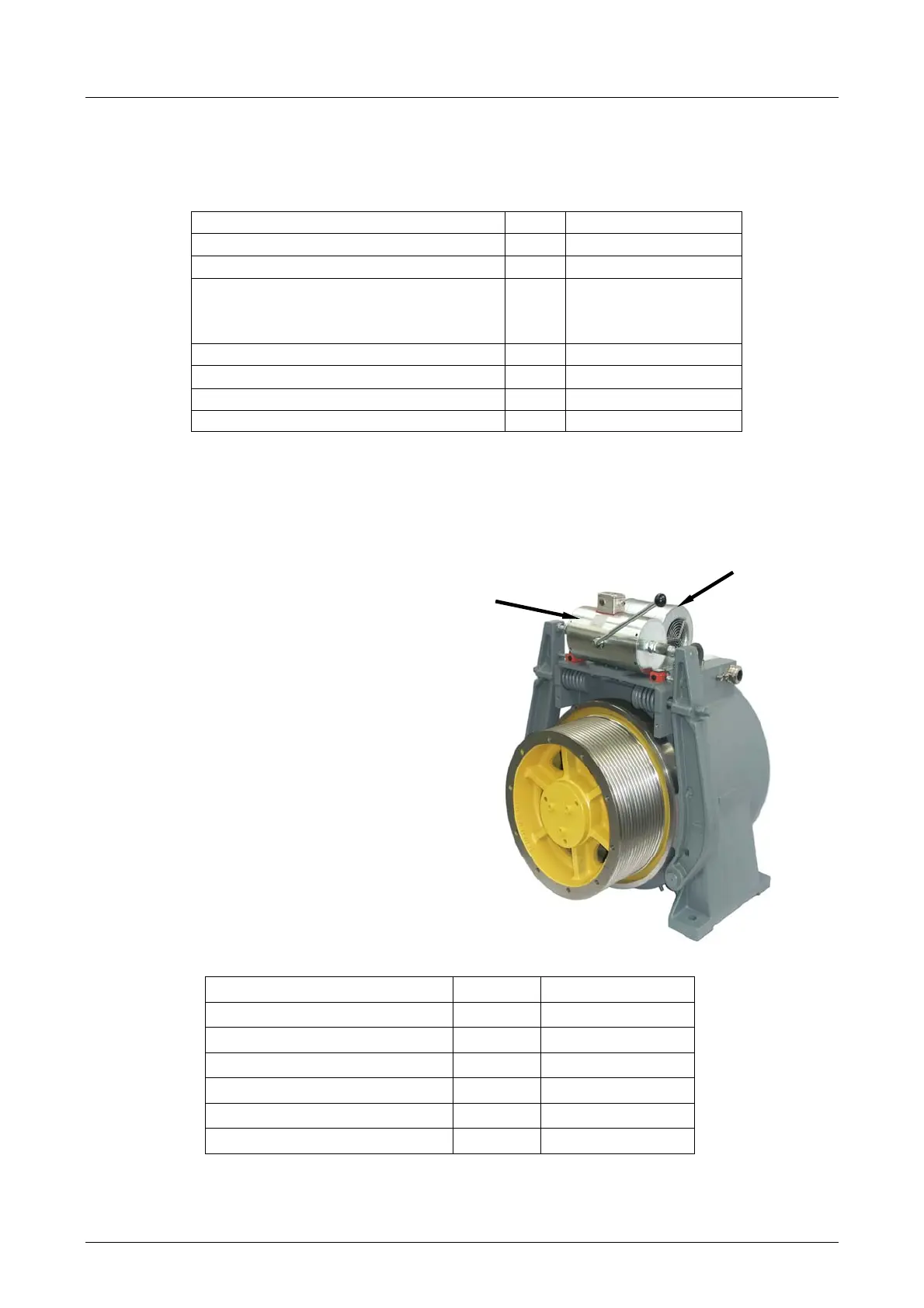

3.5 Double-vane magnet
The two magnet coils are connected in series.
3.6 Forced ventilation
Double-vane magnet DAF380 Unit
Manufacturer Kuhse
Type Gsd180.01-99
Operating voltage [VDC]
180 / 90 –
Overexcitation /
retentive voltage
Operating current - overexcitation
1)
[A] 3.2
Operating current - retention
1)
[A] 1.5
Performance data - overexcitation [W] 576
Performance data - stopping [W] 135
1)
with magnet at operating temperature and
overexcitation time of 1 - 1.2 s
Forced ventilation DAF380 Unit
Forced ventilation type Centrifugal fan
Frequency [Hz] 50 / 60
Operating voltage [V] 230
Max. currents [A] 0.44 / 0.51
Nominal output [kW] 0.100 / 0.116
Air flow rate [m
3
/h] 835 / 765
Table 3.6.1
Table 3.5.1
Forced
ventilation
Double-vane magnet
20
08-2011
