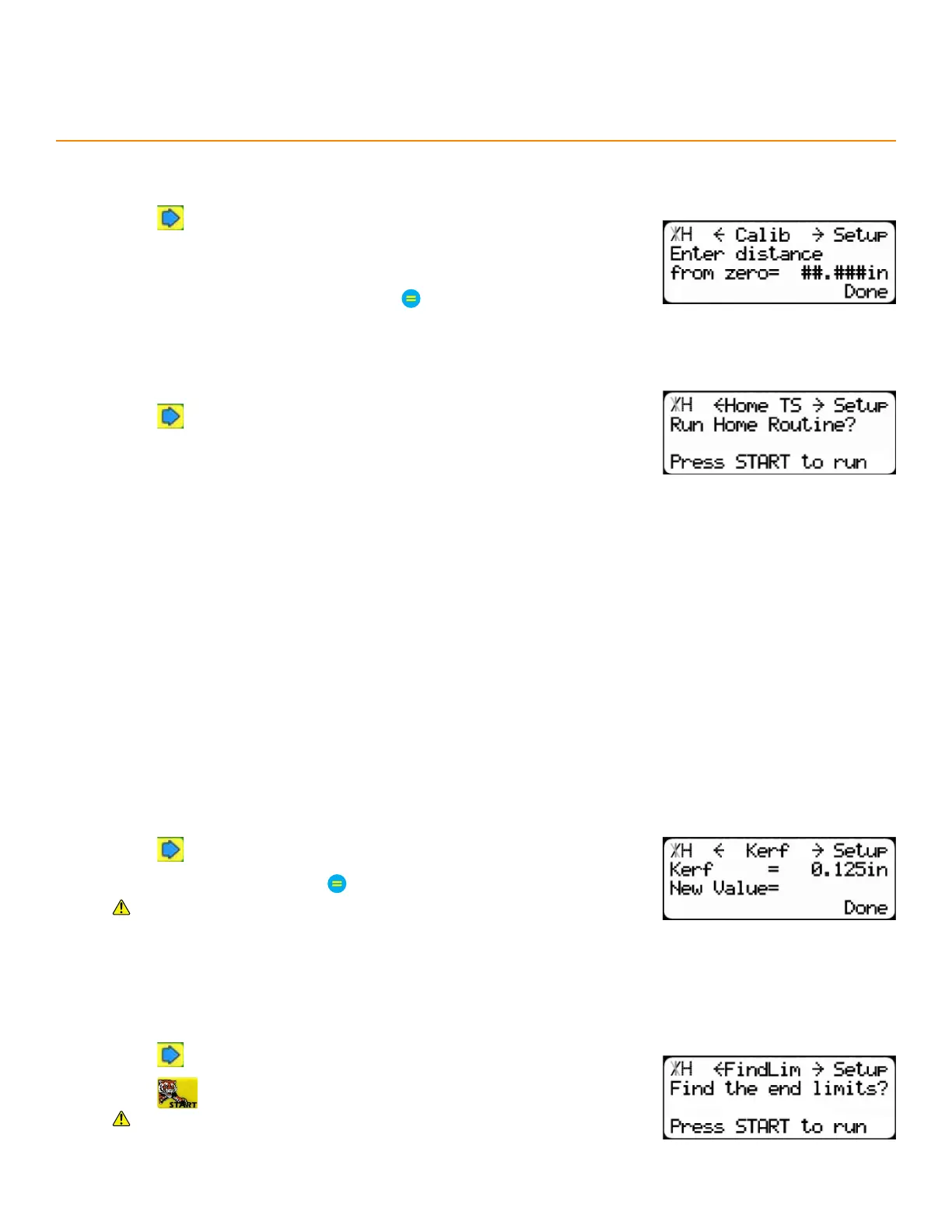

Setup Menu
calibRate
1. Press until reaching the Calib screen.
2. Precisely measure the distance between the TigerStop
®
’s current
pusher attachment and the tool’s zero point.
3. Enter this measurement and then press
keRF
Necessary for cutting tools only. The kerf is the measure of how much material is destroyed by the saw blade
during a cut.
meaS u Re keRF
1. Cut a sample piece and measure it with a caliper. Record this measurement.
2. Cut the sample piece in two.
3. Put the two pieces together as if they were one piece and re-measure with a caliper.
4. The dierence between the measurement from step 1 and the measurement from step 3 is the kerf.
Set ke R F
1. Press until reaching the Kerf screen.
2. Enter the kerf and then press
Measure and then reset the kerf with every saw blade change.
Home Routine
1. Press until reaching the Home TS screen.
2. See page 3.
Find tHe end limitS
1. Press until reaching the FindLim screen.
2. Press to run the Find End Limit routine.
Ensure the TigerStop
®
can move its entire length without obstruction.
Automatically sets the minimum and maximum limits.
