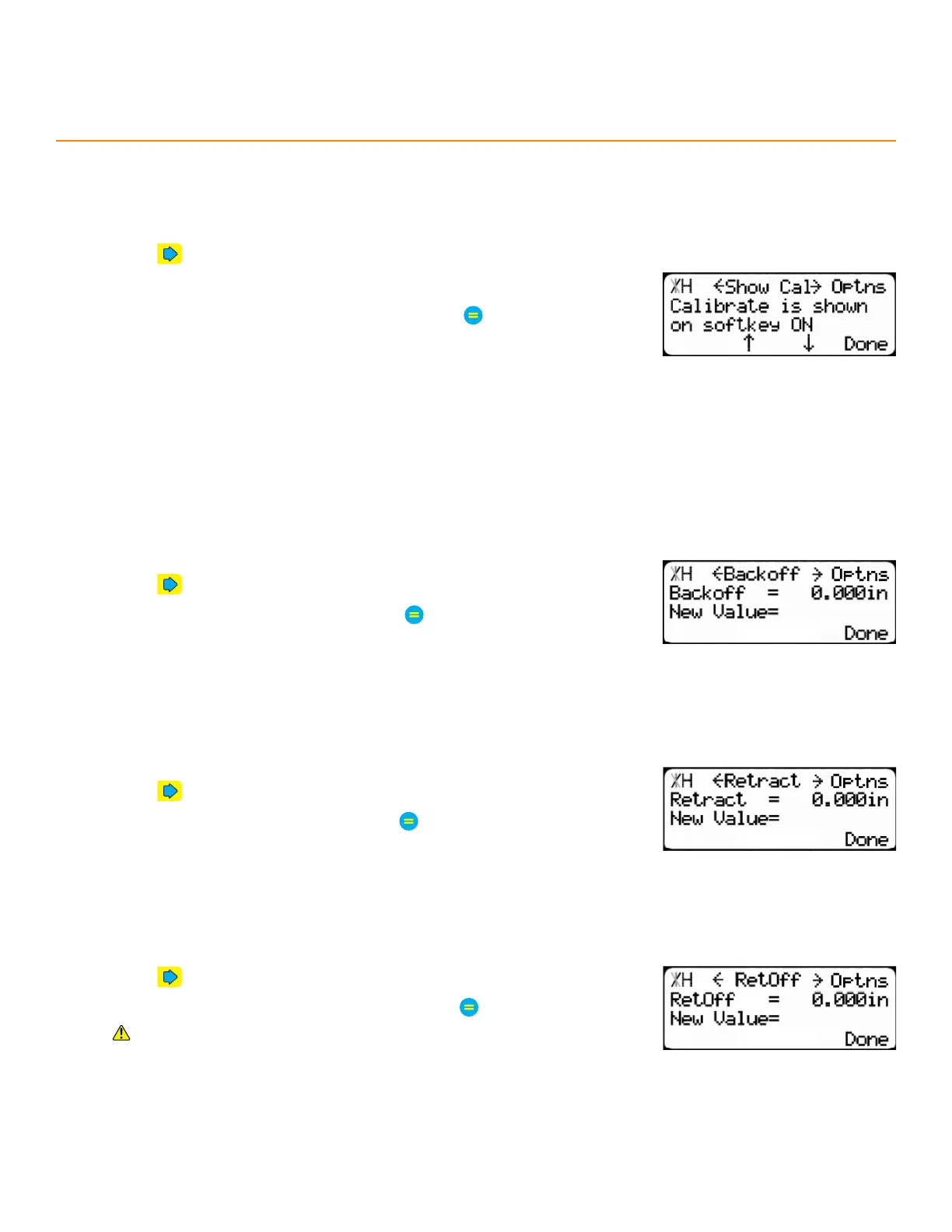

1. Press until reaching the Show Cal screen.
2. Press the [↓] or [↑] soft key.
3. Enter the TigerStop
®
’s password and then press
• By default, the TigerStop
®
’s password is the serial number.
4. Press the [↓] or [↑] soft key to toggle the setting.
Removing the quick calibration button from the Ready Screen prevents operators from changing the
calibration without a password.
diSable Quick calibRation
Options Menu
backoFF
The minimum safe distance for the TigerStop
®
to be clear of moving parts. If the TigerStop
®
moves
closer than the set distance, it backs o once the tool cycle initiates. Applies to pusher and pattern
part lists by default. Also applies to manual moves when an interconnect kit is installed. 40” (1016 mm)
maximum.
1. Press until reaching the Backo screen.
2. Enter a backo distance and then press
RetRact
The distance the TigerStop
®
retracts after moving material to position. Applies to pusher and pattern
part lists by default. Also applies to manual moves when an interconnect kit is installed.
1. Press until reaching the Retract screen.
2. Enter a retract distance and then press
RetRact oFFSet
Modifies the distance the TigerStop
®
moves to reconnect with the material after retracting.
1. Press until reaching the RetO screen.
2. Enter the retract oset distance and then press
This should equal how far the part moves during a tool cycle.
