TigerStop Standard Controller 5 User Manual

3

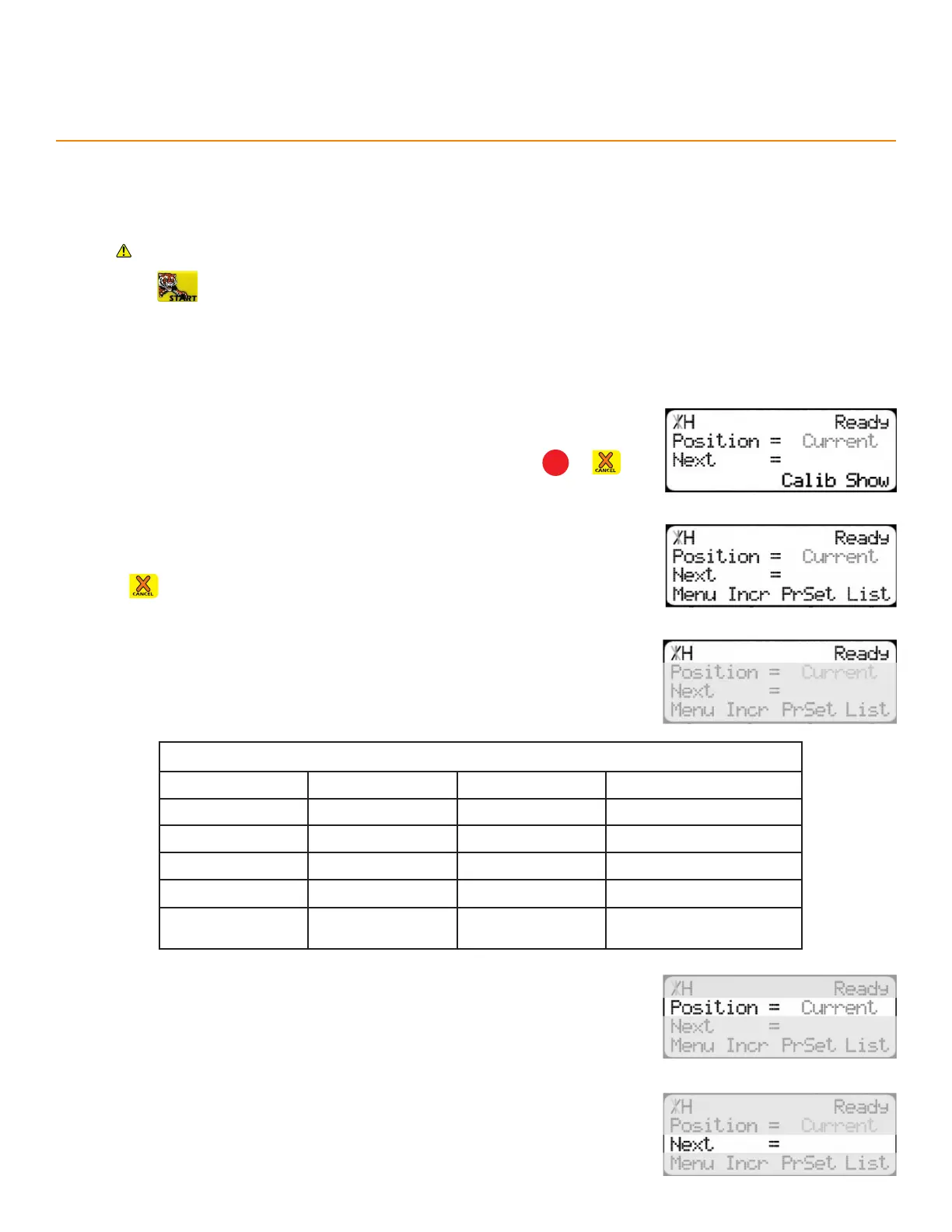

Ready Screen Functions
Home Routine
Every time a TigerStop
®
powers-on, it requires the ‘Home Routine’. The Home Routine is a three-step process in
which the TigerStop
®
moves to its farthest possible position.
Ensure the area is clear. The TigerStop
®
moves automatically during this routine.
1. Press to run the Home Routine.
2. When movement stops, the TigerStop
®
controller displays the Ready Screen.
Line 1 displays the “heartbeat”. The heartbeat is a line that rotates and
indicates that the TigerStop
®
is functioning normally. The letter next to
the heartbeat is the drive indicator. The drive indicator communicates the
motor’s status.
Line 2 shows the current position of the TigerStop
®
. The position ends with
either ‘in’ or ‘mm’ depending on measurement system.
Drive Indicator
H
Holding Still
W
Waiting
A
Accelerating
X
Drive Disabled
C
Constant Speed
N
Communication Error
D
Decelerating
S
Stopping
L
Lash
J
Jog
T
Waiting for Text
Entry
--- ---
Ready ScReen
Line 3 shows the next position of the TigerStop
®
. This is also where user
input appears.
The Ready Screen is the starting point for all TigerStop
®
functions.
The Ready Screen is always accessible by repeatedly pressing
STOP
or
The Ready Screen has two forms. From the basic Ready Screen, press the
[Show] soft key to display the expanded options.
Press to return to the basic Ready Screen.
