TigerStop Standard Controller 5 User Manual

20

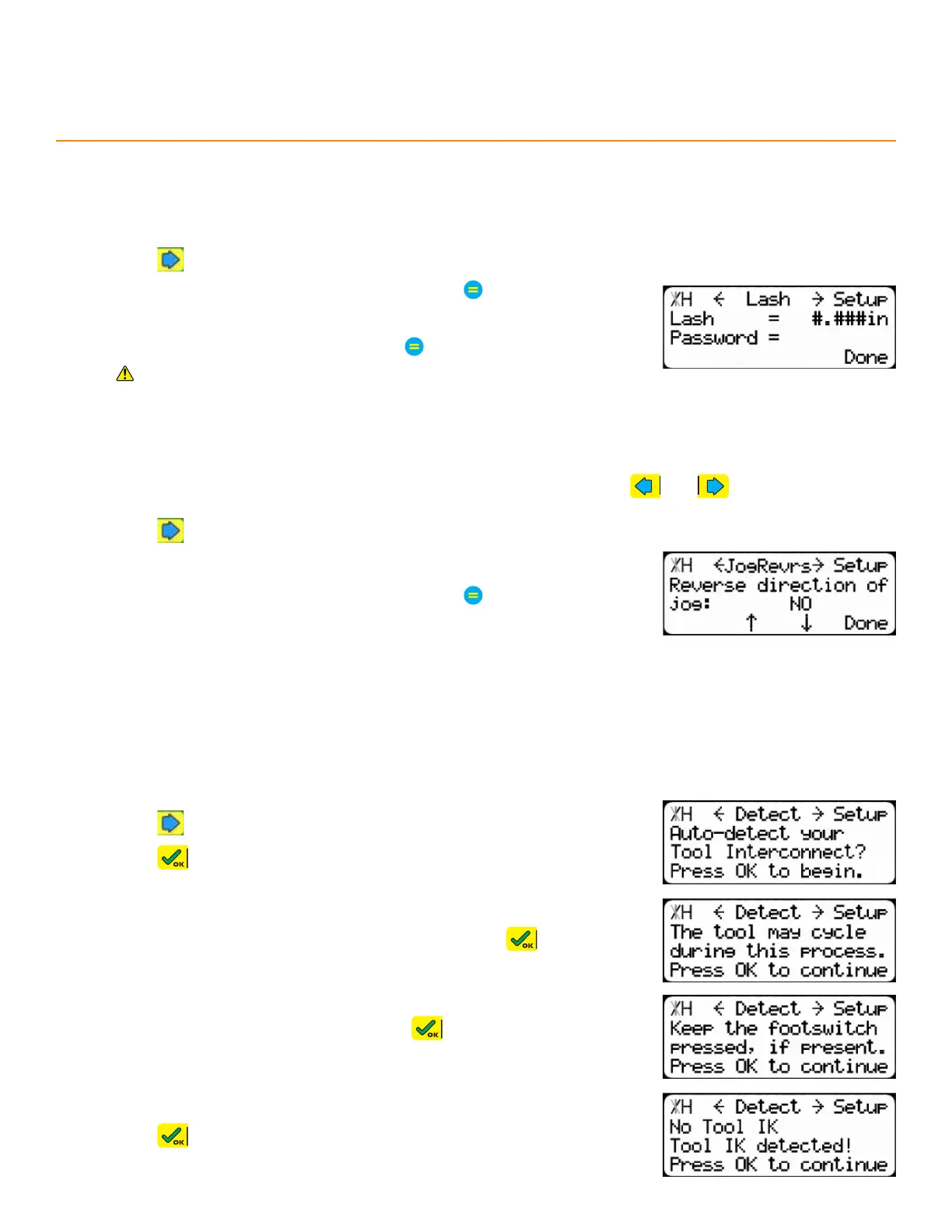

Setup Menu
laSH
Lash sets the backlash compensation.
1. Press until reaching the Lash screen.
2. Enter the TigerStop
®
’s password and then press
• By default, the TigerStop
®
’s password is the serial number.
3. Enter the new lash value and then press
An improper lash setting reduces accuracy.
Jog ReveRSe
Jog Reverse sets the direction the TigerStop
®
moves when jogging with the and buttons.
1. Press until reaching the Jog Reverse screen.
2. Press the [↓] or [↑] soft key.
3. Enter the TigerStop
®
’s password and then press
• By default, the TigerStop
®
’s password is the serial number.
4. Press the [↓] or [↑] soft key to toggle the jog direction.
auto detect
The Auto Detect routine detects which, if any, interconnect kit is installed and sets the type (page 43).
1. Press until reaching the Detect screen.
2. Press to begin the routine.
3. Clear the tool area of any obstructions and then press twice.
4. If present, depress the foot switch, press and then release the
switch.
5. Check the results of the routine against the installed interconnect kit.
Press to return to the menu. If the result was incorrect, run the
routine again.
