Toro 03678 User Manual

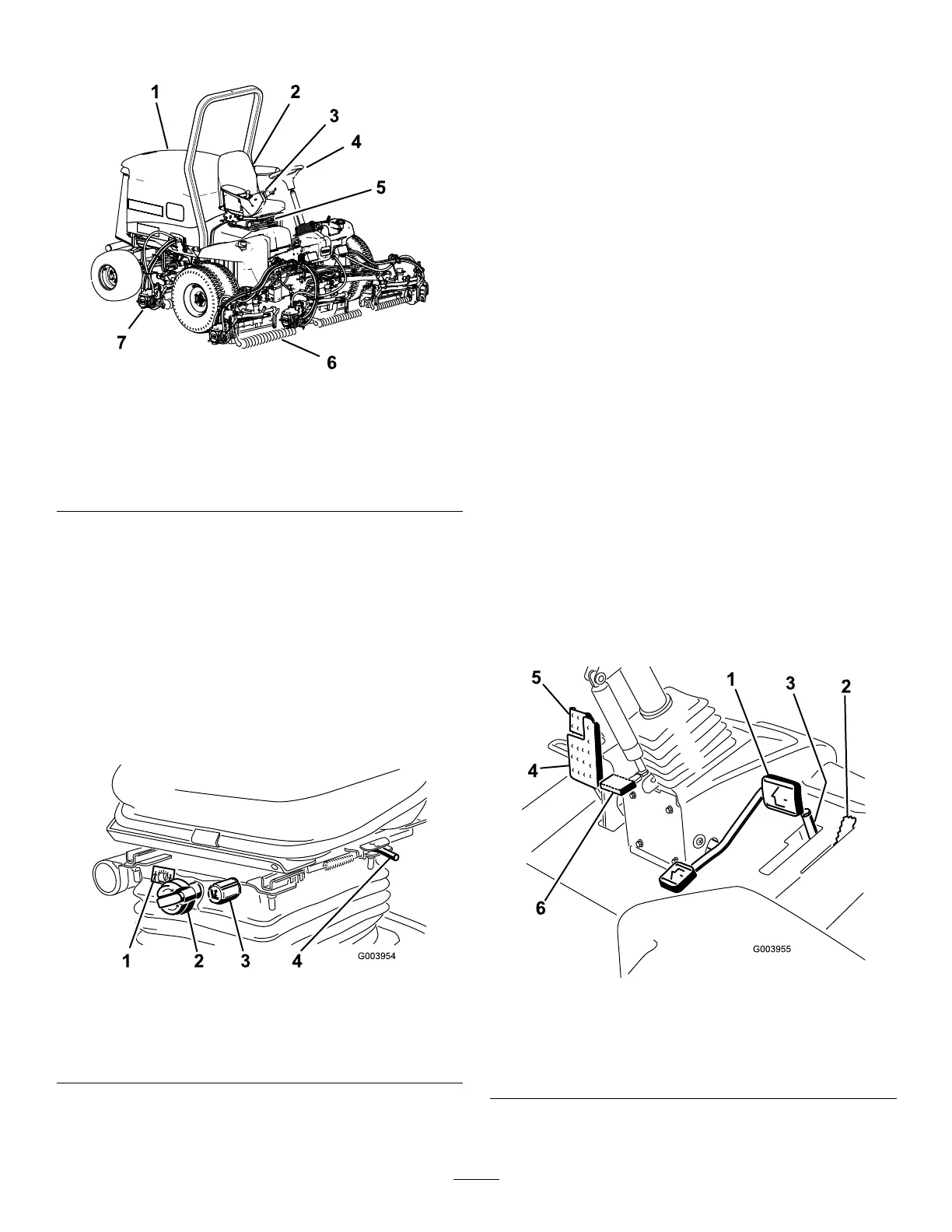

ProductOverview
g216864
Figure41
1.Enginehood
5.Seatadjustments
2.Seat
6.Frontcuttingunits
3.Controlarm
7.Rearcuttingunits
4.Steeringwheel
Controls
Seat-AdjustingKnobs
Theseat-adjustinglever(Figure42)allowsyouto
adjusttheseatforwardandrearward.Theweight
adjustingknobadjuststheseatforyourweight.The
weightgaugeindicateswhentheseatisadjustedto
yourweight.Theheight-adjustingknobadjuststhe
seatforyourheight.
g003954
Figure42
1.Weightgauge3.Height-adjustingknob
2.Weight-adjustingknob
4.Adjustinglever(forward
andrearward)
TractionPedal
Thetractionpedal(Figure43)controlstheforwardand
reverseoperation.Pressthetopofthepedaltomove
forwardandthebottomtomoverearward.Ground
speeddependsonhowfaryoupressthepedal.For
noload,maximumgroundspeed,fullypressthepedal
whilethethrottleisintheFASTposition.
Tostop,reducefootpressureonthetractionpedal
andallowittoreturntothecenterposition.
Mow-SpeedLimiter
Whenthemow-speedlimiter(Figure43)isipped
up,itcontrolsthemowspeedandallowsthecutting
unitstobeengaged.Eachspaceradjuststhemowing
speedby½mileperhour.Themorespacersyou
haveonthetopofthebolt,thesloweryouwillgo.For
transport,ipbackthemow-speedlimiterandyouwill
havemaximumtransportspeed.
BrakePedal
Pressthebrakepedal(Figure43)tostopthemachine.
ParkingBrake
Toengagetheparkingbrake,(Figure43)pushdown
thebrakepedalandpressthetopforwardtolatch.To
releasetheparkingbrake,pressthebrakepedaluntil
theparkingbrakelatchretracts.
g003955
Figure43
1.Tractionpedal4.Brakepedal
2.Mow-speedlimiter5.Parkingbrake
3.Spacers
6.Tilt-steeringpedal
24
