ReplacingaFuse-Block

Fuse

Thefuseblockisinthecontrolarm.

1.Preparethemachineformaintenance;referto

PreparingforMaintenance(page40).

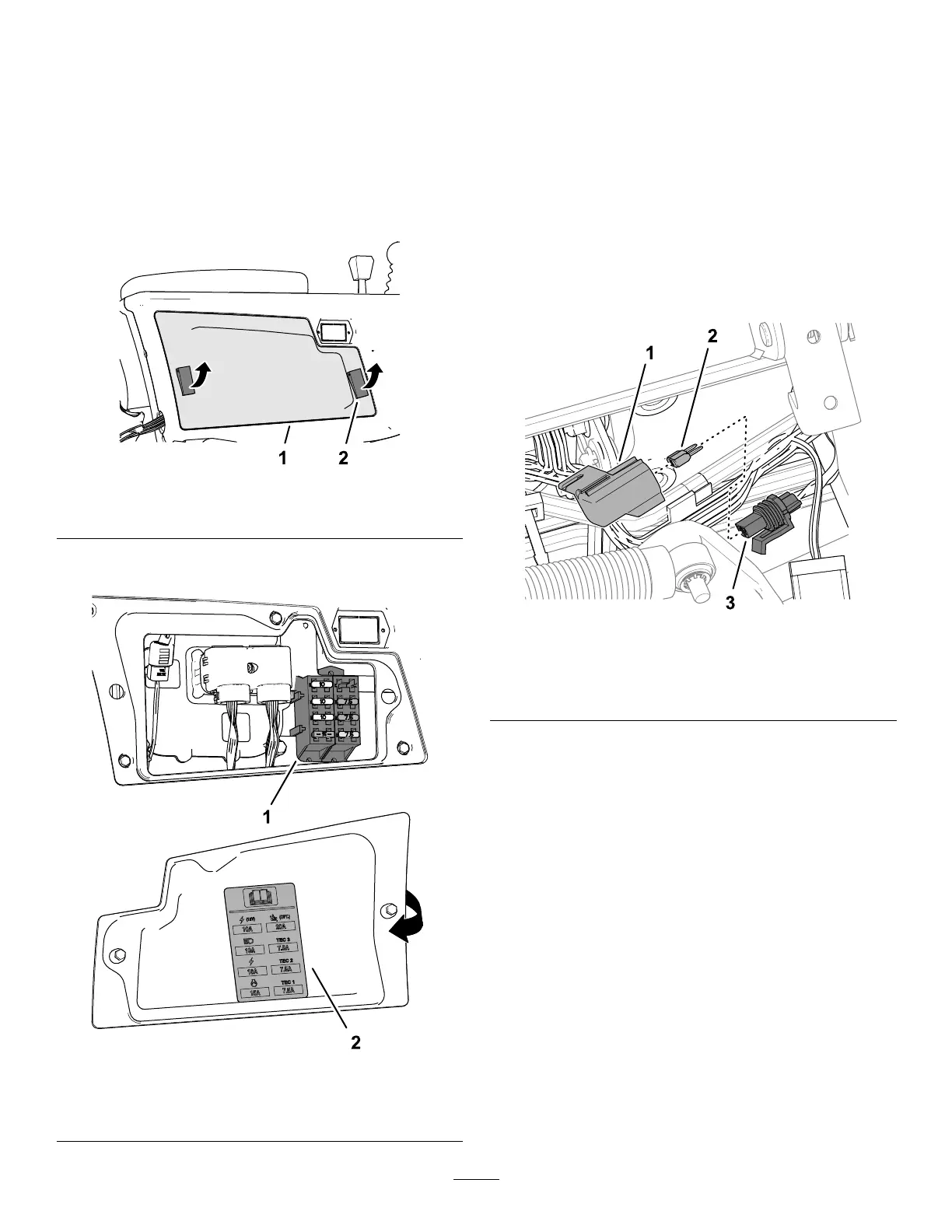

2.Openthe2latchesthatsecurecontrol-armcove

tothecontrolarm,andremovethecover(Figure

87).

g375760

Figure87

1.Control-armcover

2.Latch

3.Replacetheopenfuse(Figure88)withthesame

fusetypeandamperagerating.

g375761

Figure88

1.Fuseblock

2.Fusedecal(insidethe

control-armcover)

4.Assemblethecontrol-armcovertothecontrol

arm,andsecurethecoverwiththe2latches.

ReplacingtheTelematic

Fuse

1.Preparethemachineformaintenance;referto

PreparingforMaintenance(page40).

2.Unlatchandtiltseat;refertoTiltingtheSeat

(page41).

3.Removethecapfromthein-linefuseholder

labeled10AFUSETELEMATICPWR(Figure89).

g378242

Figure89

1.Cap3.Fuseholder(labeled10A

FUSETELEMATICPWR)

2.Fuse

4.Removethefusefromthefuseholder.

5.Insertafuseofthesametypeandamperage.

6.Assemblethecapontothein-linefuseholder.

7.Lowerandlatchtheseat;refertoLoweringthe

Seat(page41).
