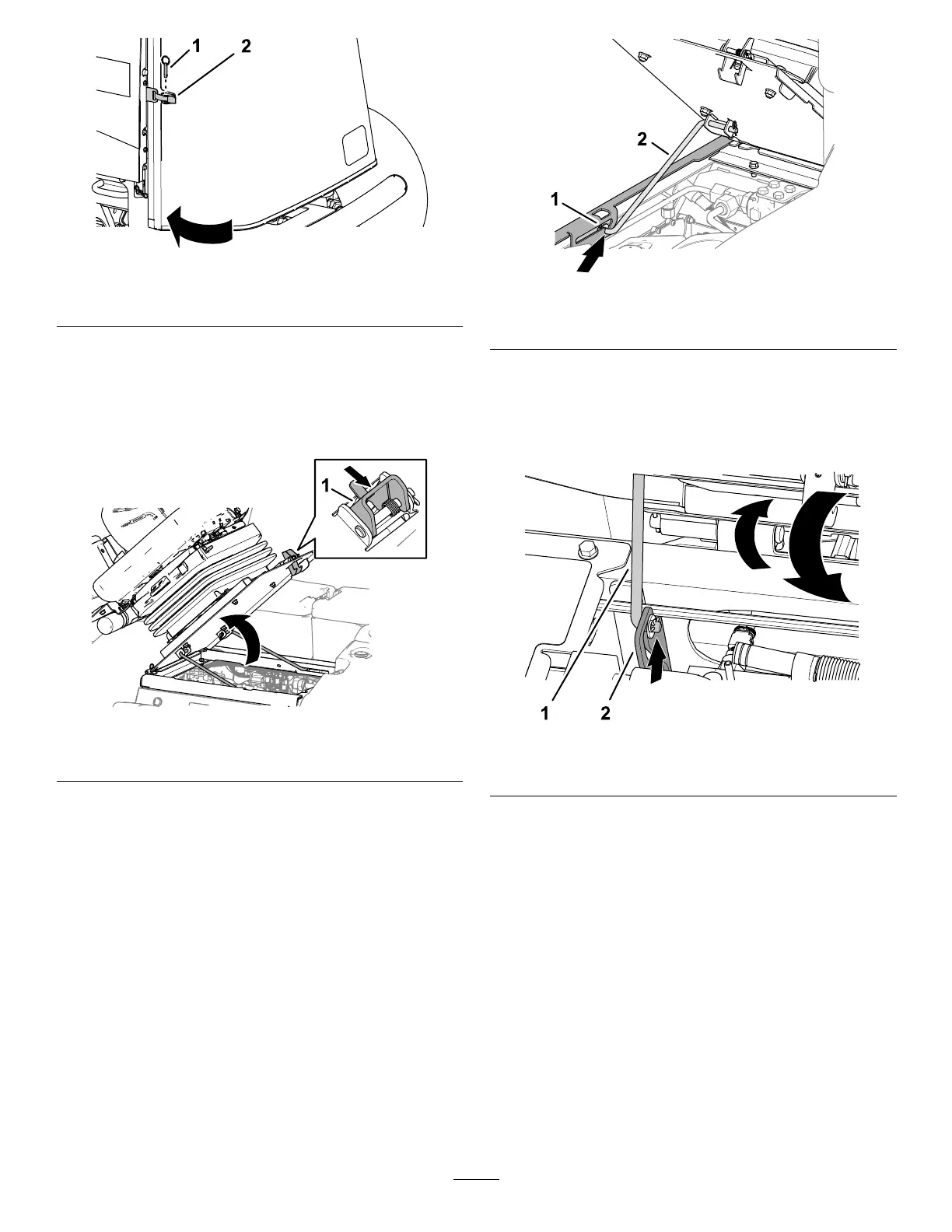

Figure61
1.Ballpin
2.Screenlatch
2.Inserttheballpinthroughthescreenlatch.
TiltingtheSeat
1.Movetheseatlatchoutward(Figure62).
g369007
Figure62
1.Seatlatch
2.Carefullyrotatetheseatup.
3.Ensurethattheforwardproprodseatsinthe
slotdetentoftherod-guideplate(Figure63).
g369008
Figure63
1.Proprod2.Rod-guideplate
LoweringtheSeat
1.Rotatetheseatslightly,andlifttheproprodout
ofthedentoftheseatsupportslot(Figure64).
g375779
Figure64
1.Proprod2.Rod-guideplate
2.Carefullylowertheseatuntilitlatchessecurely.
JackingPointLocations
Note:Supportthemachinewithjackstands
wheneveryouworkunderthemachine;referto
JackingPointLocations(page41).
Usethefollowingasmachine-liftpoints:
41
