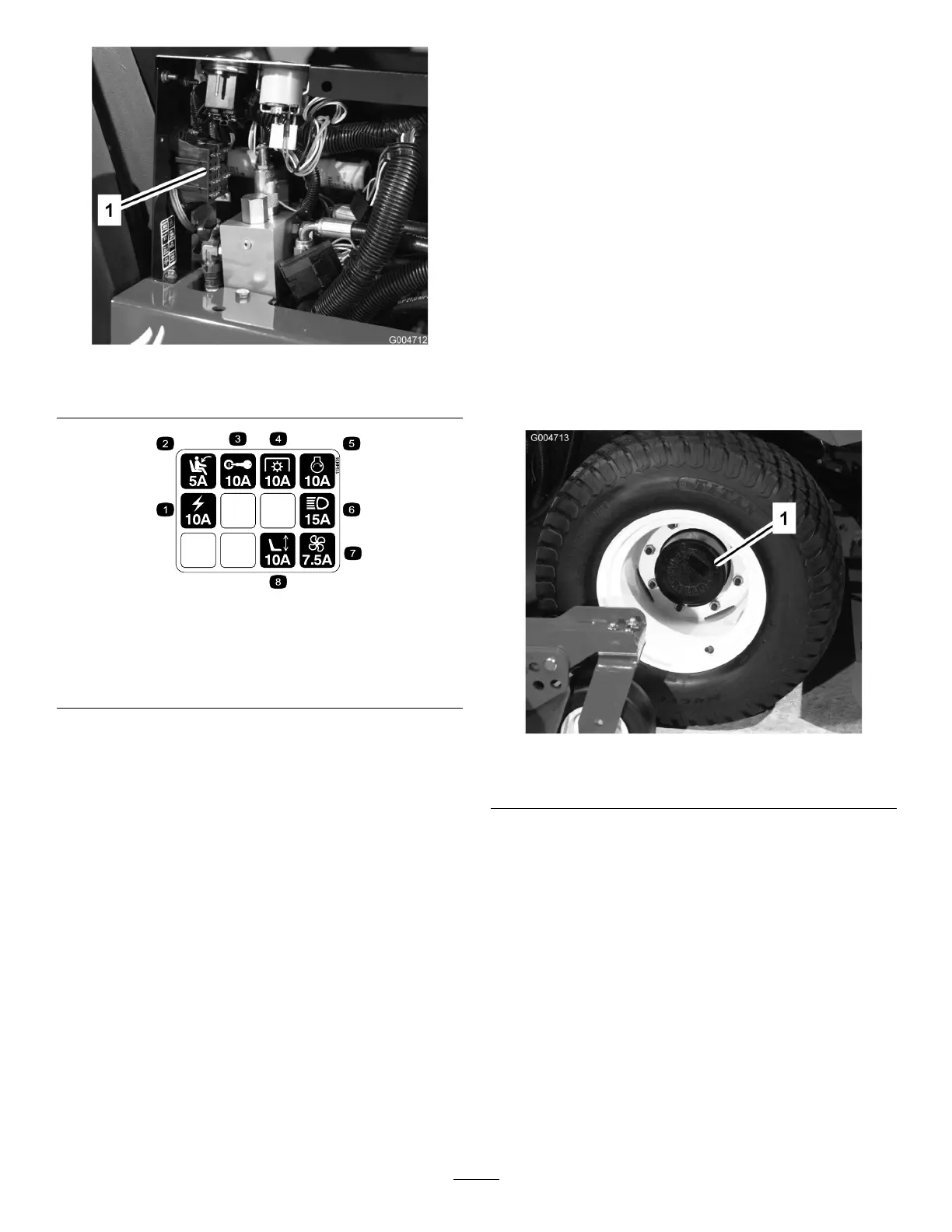

Figure55
1.Fuses
Figure56
1.Poweroutlet
5.Startersolenoid
2.Seatswitch
6.LightKit
3.Ignitionswitch7.Fan
4.PowerTakeOff(PTO)
8.Powerseat
DriveSystem
Maintenance
ChangingthePlanetaryGear
DriveOil
ServiceInterval:Aftertherst200hours
Every800hours
Changetheoilinitiallyafterrst200hoursofoperation.
Thereafterchangetheoilevery800hours,oryearly,
whicheveroccursrst.UseahighqualitySAE85W-140
gearlube.
1.Withthemachineonalevelsurface,positionthe
wheelsothatthecheck/drainplug(Figure57)isat
thelowestposition.
Figure57
1.Check/drainplug
2.Placeadrainpanunderthehub,removetheplug,
andallowtheoiltodrain.
3.Whenalloftheoilhasdrained,positionthewheel
sothattheplugholeisatthetenortwoo’clock
position.
4.Placeadrainpanunderthebrakehousingonthe
othersideofthewheel(Figure58).
5.Removetheplugfromthebottomofthehousing
andallowtheoiltodrain.
6.Whenalloftheoilhasdrained,installtheplugin
thehousing.
7.Addapproximately16oz(0.5l)ofhighqualitySAE
85W-140gearlubetotheplanetaryllhole(atthe
tenortwoo’clockposition)untilthelevelisupto
42
