AdjustingtheCuttingUnit
FlowControl
Theowcontrolvalve(Figure72)isusedtoadjustthe
rateatwhichthefrontcuttingunitlowers.

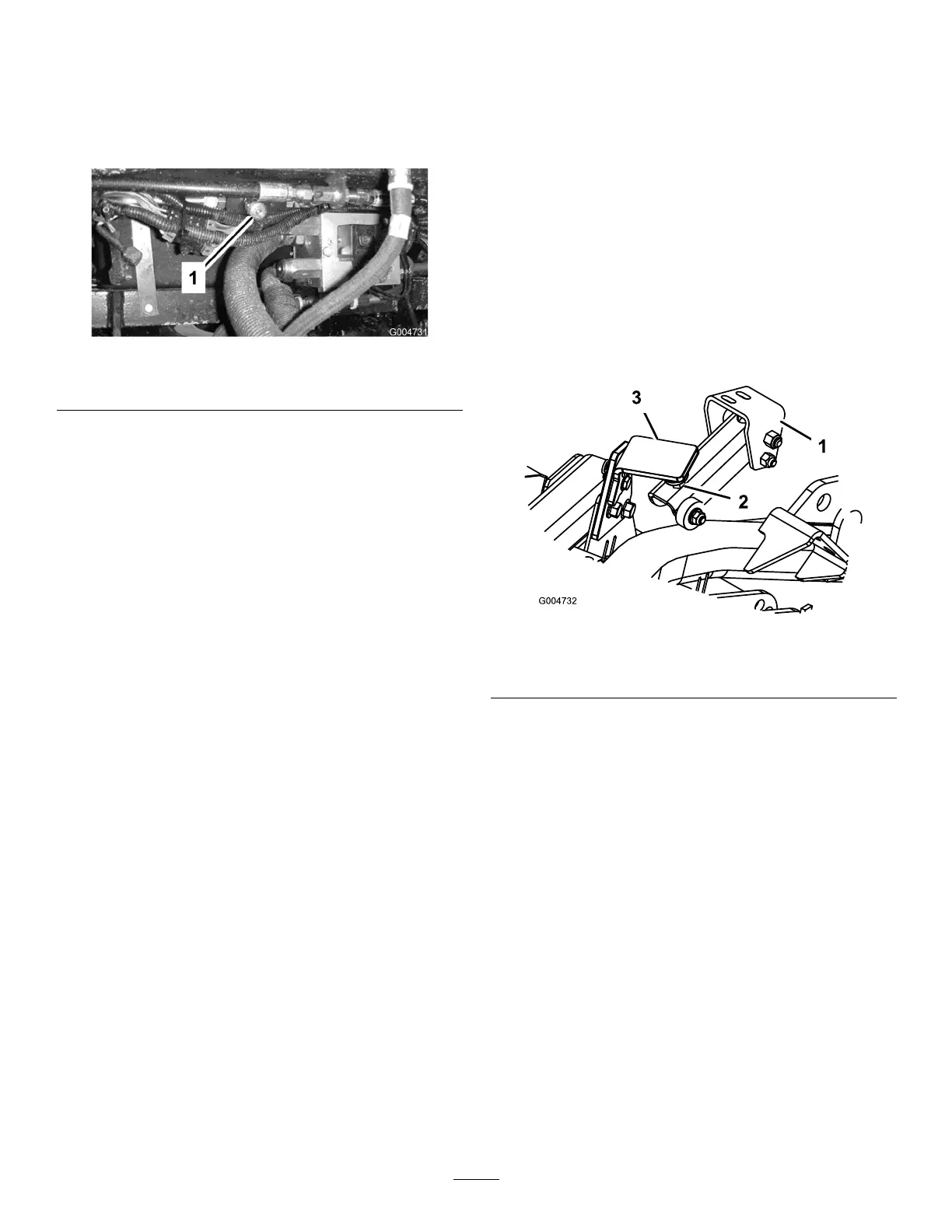

Figure72
1.Flowcontrolvalve
MowerMaintenance
AdjustingtheTransportLatch
Ifthetransportlatch(Figure73)hastobeadjusted,
adjustasfollows:
1.Raisethefrontcuttingunitfullyoffoftheoor,set
theparkingbrake,andstoptheengine.Removethe
ignitionkey.
2.Loosenangenutssecuringlatcharmpivotto
tractionunitframe.
3.Movelatcharmpivotinoroutuntilrubbercushion
ofadjustmentscrewiscenteredunderdecklatch.
Tightenangenuts.
Figure73
1.Latcharmpivot3.Decklatch
2.Adjustmentscrew
4.Clearancebetweenadjustmentscrewrubber
(Figure74)cushionanddecklatchshouldbe.125
inch.Ifanadjustmentisrequired,loosennut
onadjustmentscrew,adjustscrewuntilrequired
clearanceisattainedandtightennut.
50
