CHASSIS
3 - 2 TimeCutter
Z Service Manual

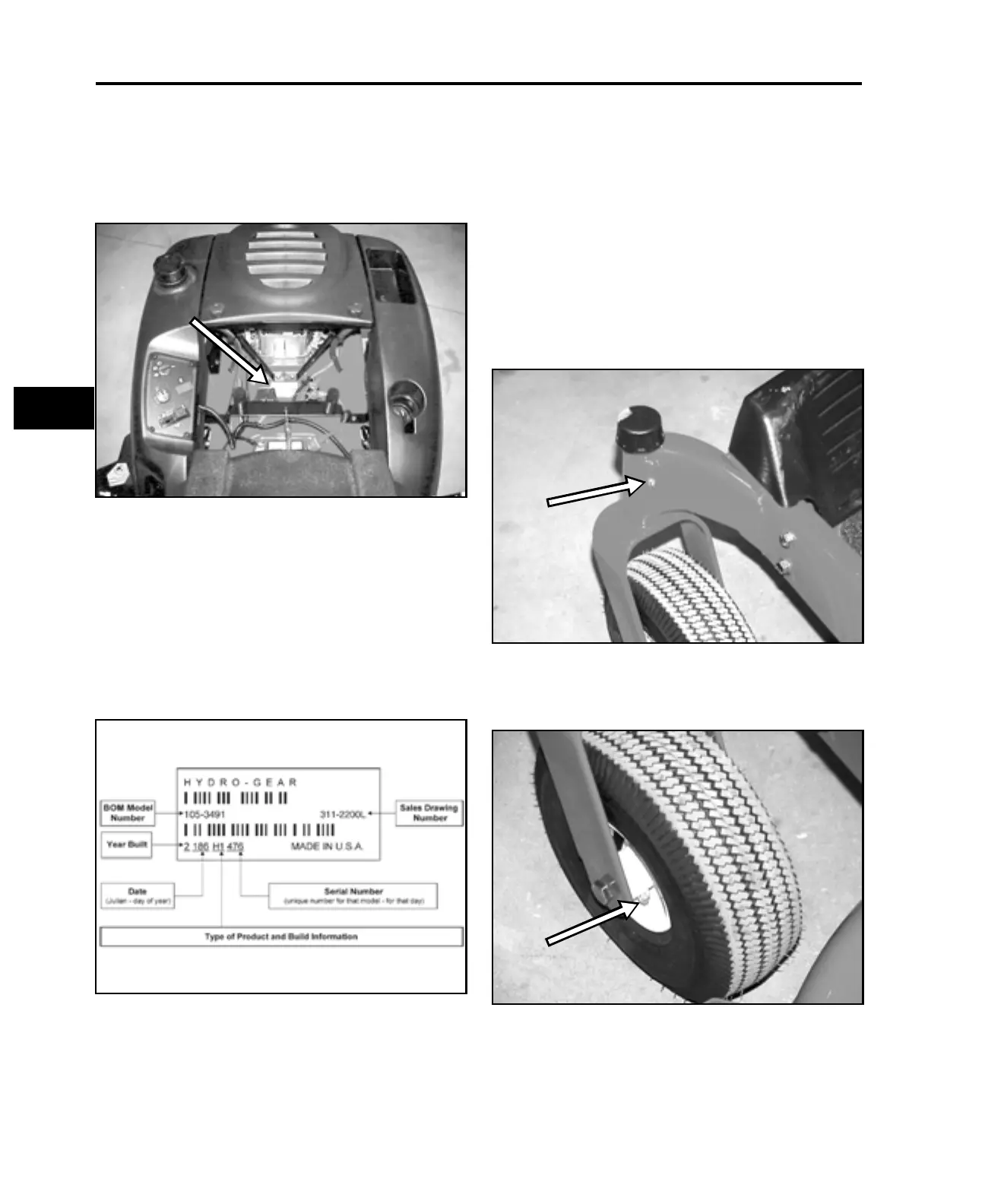

Model and Serial Number Location
The unit model and serial number plate is located on
the frame under the seat as shown in the illustration
(Figure 3).
Figure 3
mvc-049
Engine Model and Serial Number
Identification
Consult the appropriate engine manufacturer’s service
literature for the location and translation of the engine
model and serial number information (Figure 4).
Transaxle Model and Serial Number
Figure 4
Greasing and Lubrication
The unit should be greased every 25 hours or more
often when operated in dusty, dirty or sandy conditions.
Grease Type: No. 2 general purpose lithium base
grease.
There are four grease fittings located in the front wheel
area:
1. One grease fitting is located in each of the cast
iron pivot castor supports (Figure 5).
Figure 5
mvc-050
2. One grease fitting is located on each front wheel
hub on the front tire (Figure 6).
Figure 6
mvc-051
3
