CHASSIS
3 - 6 TimeCutter
Z Service Manual

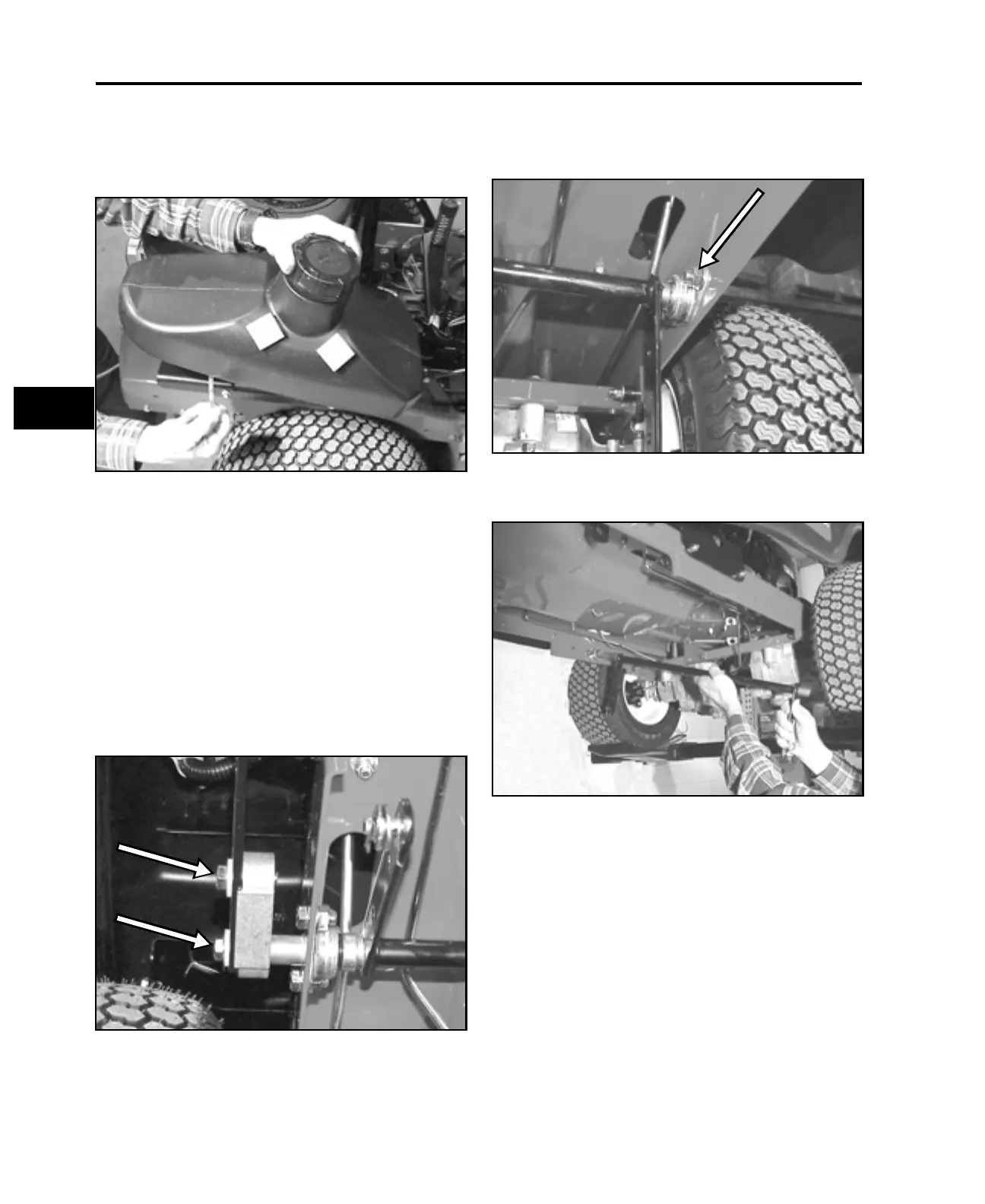

7. Disconnect the gas line at the carburetor.
Remove the two spring clips located at the bottom
of the gas tank, disconnect the gas line and
remove the tank (Figure 18).
Figure 18
mvc-068
Installation
Reinstall the gas tank and right side panel in reverse
order.
Lift Arm Assembly
Removal
1. Remove the two bolts and washers retaining the
lift lever to the lift block and remove them from the
lift arm assembly (Figure 19).
Figure 19
mvc-072
2. Unbolt the flange bearing from the left side of the
unit and remove from the end of the lift arm shaft
(Figure 20).
Figure 20
mvc-073
3. Remove the lift arm assembly (Figure 21).
Figure 21
mvc-074
Installation
Reverse the order of removal.
