ELECTRICAL SYSTEM
TimeCutter
Z Service Manual 5 - 9
Testing
1. Disconnect the switch from the wiring harness.
2. Using a VOM or test light, check first to ensure
there is no continuity between either terminal,
plunger out.
3. With the plunger pushed in, there should be
continuity between the terminals.
Switch, Seat
Purpose
The switch is in the safety circuit. If the engine is
running and the operator vacates the seat with either
the PTO engaged or the parking brake off, the engine
will shut down.
Location

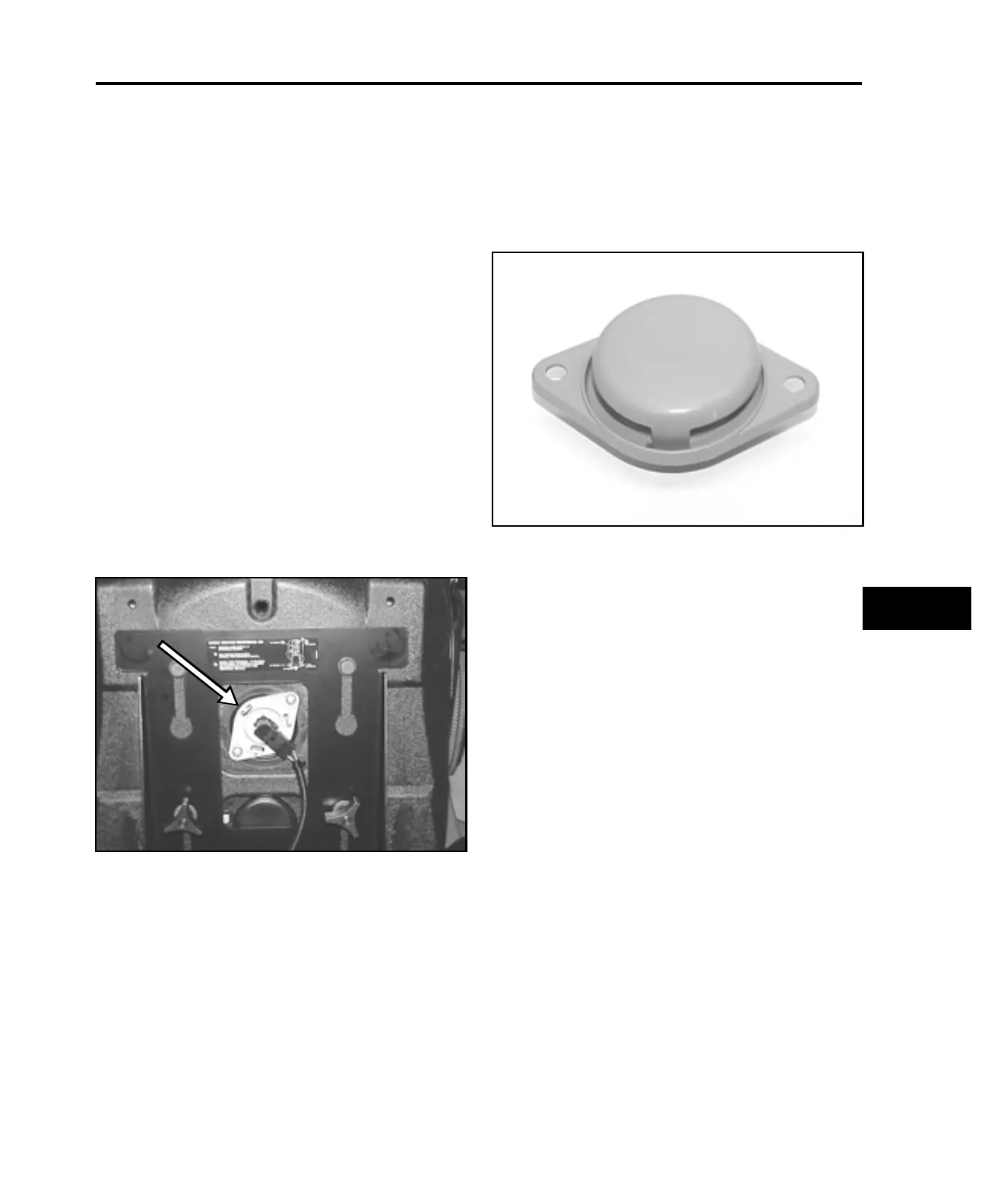

The seat switch is fastened to the bottom of the seat
base (Figure 92).
Figure 92
mvc-194
How it Works
When the seat is vacated, the switch is open and there
should be NO continuity between the two terminals.
When the seat is occupied, the switch closes and there
should be continuity between the two terminals (Figure
93).
Figure 93
mvc-390
Testing
1. Disconnect the switch from the wiring harness.
2. With a multimeter, check the continuity between
the two terminals of the switch. There should be
NO continuity.
3. With weight or pressure on the seat, check the
continuity again on the two terminals of the switch.
There should be continuity.
5
