38”/42” MOWER DECKS
6 - 6 TimeCutter
Z Service Manual
6
Removing the Mower
Note: Before removing the mower, make a note for
which holes are used in the leveling brackets (Figure
102).
1. Park the machine on a level surface and
disengage the blade control (PTO).
2. Move the motion control levers to the brake
position, stop the engine, remove the key, and
wait for all moving parts to stop before leaving the
operating position.
3. Lower the height-of-cut lever to the lowest
position.
4. Remove the hairpin cotter and clevis pin from the
front support rod on each side of the mower
(Figure 101).

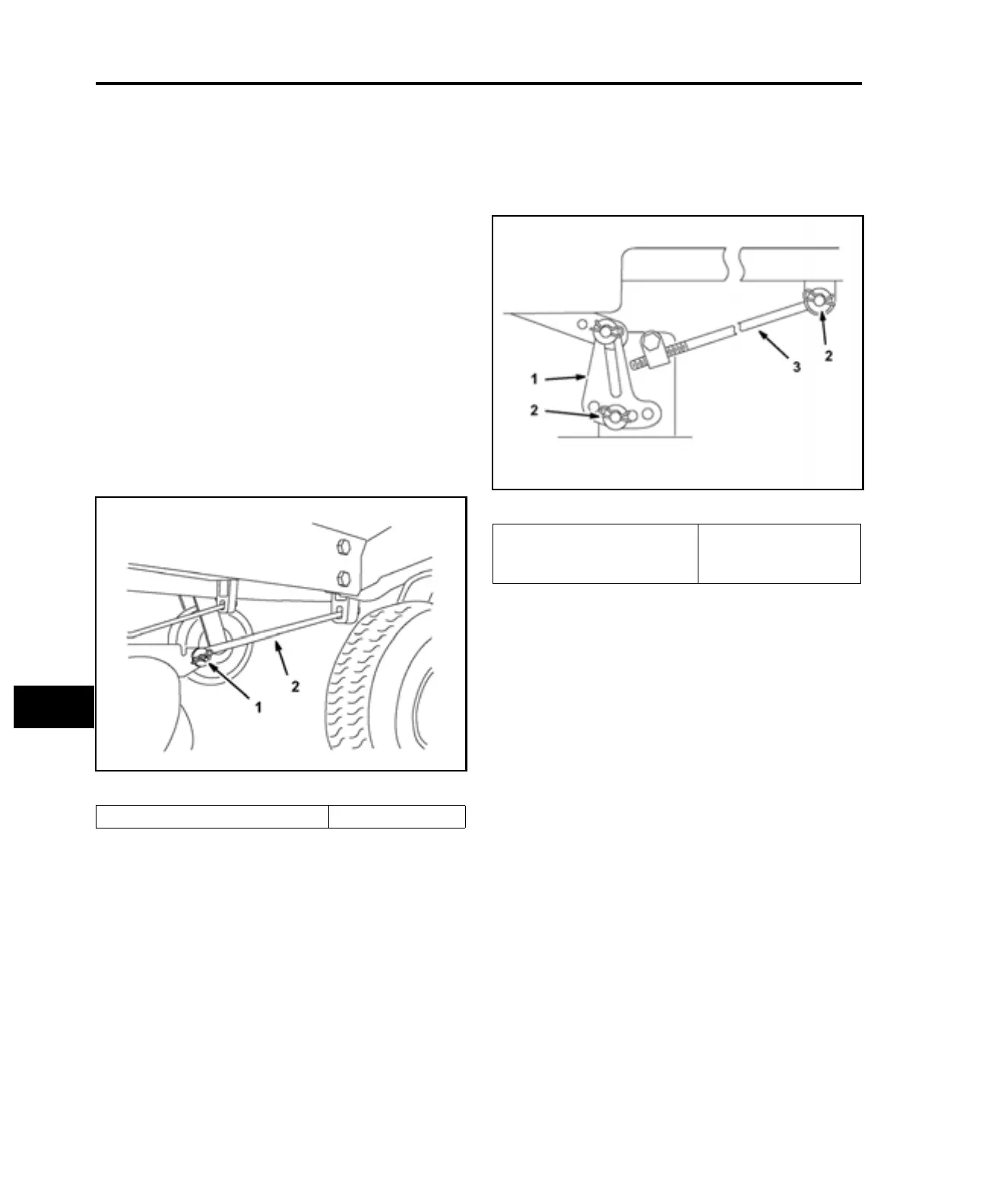

Figure 101
m-6431
5. Remove the hairpin cotter and washer from the
adjusting rod (Figure 102) on each side of the
mower.
6. Remove the hairpin cotter and washer at the
mower leveling brackets (Figure 102) on each
side of the mower. Note which hole the leveling
bracket is mounted in for future installation. Slide
the brackets off of the mounting pin.
Figure 102
m-6432
7. Slide the mower rearward to remove the mower
belt from the engine pulley.
8. Slide the mower out from underneath the tractor.
Note: Retain all parts for future installation.
(1) Hairpin cotter and clevis pin (2) Support rod
(1) Leveling bracket - 38 inch
model shown
(2) Hairpin cotter and
washer
(3) Adjusting rod
