CHASSIS
TimeCutter
Z Service Manual 3 - 7
Belt Replacement
Removal
1. Before removing or replacing the belt, disconnect
the negative battery cable and shut the fuel off at
the fuel valve, located under the fuel tank.
2. Remove the mower drive belt from the electric
PTO clutch.
3. Disconnect the plug connection to the electric
clutch (Figure 22).

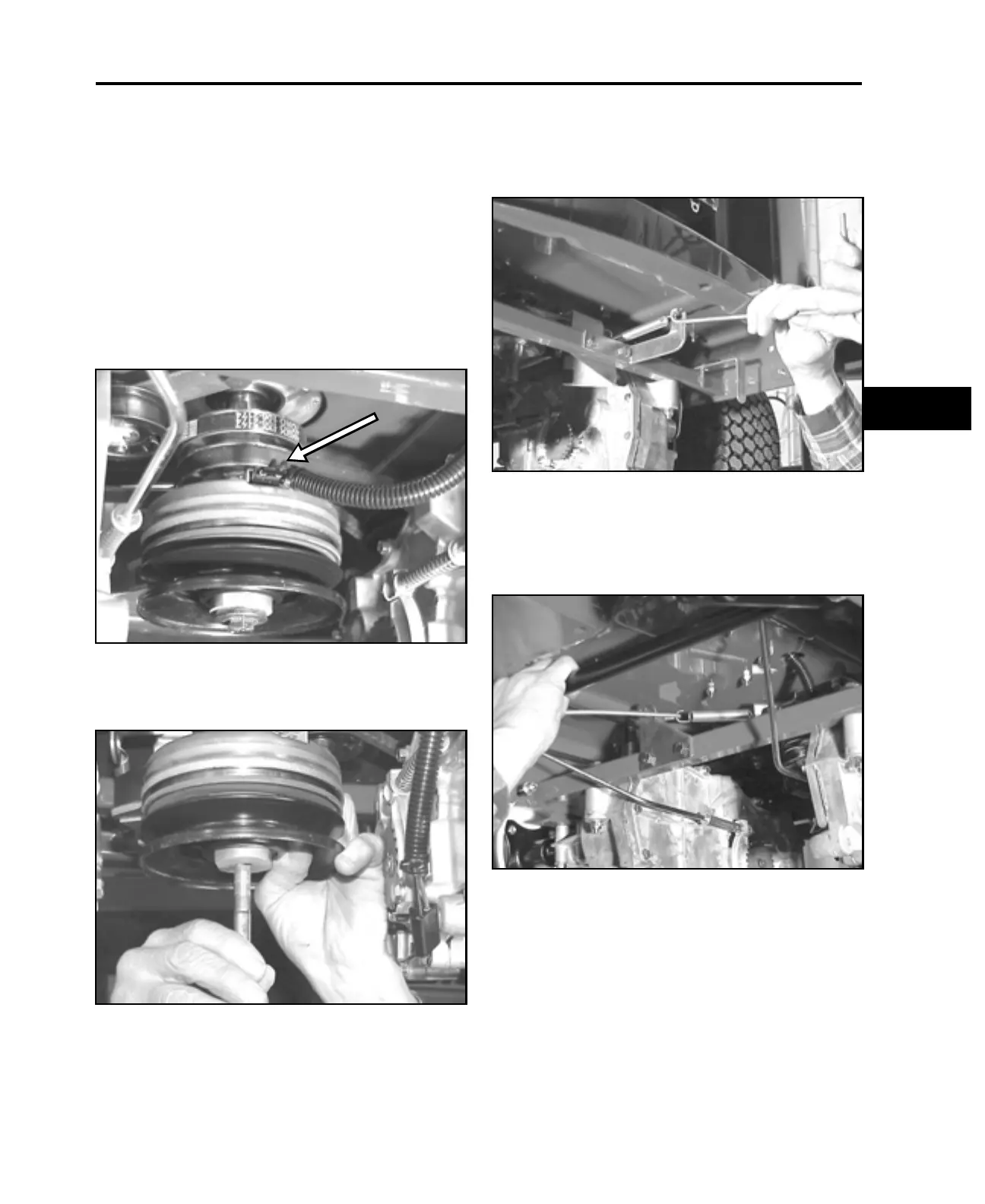

Figure 22
mvc-079
4. Remove the PTO clutch bolt and remove the
electric clutch (Figure 23).
Figure 23
mvc-081
5. Disconnect the spring connected to the rear idler
arm and remove the lower drive belt off the engine
pulley and around the left transaxle pulley (Figure
24).
Figure 24
mvc-083
6. Disconnect the front idler spring from the front
spring bracket and work the belt off the right
transaxle pulley, then off the engine pulley (Figure
25).
Figure 25
mvc-084
