A6-16 TimeCutter Z / Precision Z Service Manual
48” MOWER DECKS
6
1. Park the machine on a level surface and disengage
the blade control switch.
2. Move the motion control levers to the brake
position, stop the engine, remove the key, and
wait for all moving parts to stop before leaving the
operating position.
3. Lower the height-of-cut lever to the lowest position.
5. Remove the hairpin cotter and washer from the
adjusting rod (Fig. A6 007) on each side of the
mower.
6. Remove the hairpin cotter and washer at the mower
leveling brackets (Fig. A6 007) on each side of
the mower. Note which hole the leveling bracket is
mounted in for future installation. Slide the brackets
off of the mounting pin.
7. Slide the mower rearward to remove the mower belt
from the engine pulley.
8. Slide the mower out from underneath the machine.
Note: Retain all parts for future installation.

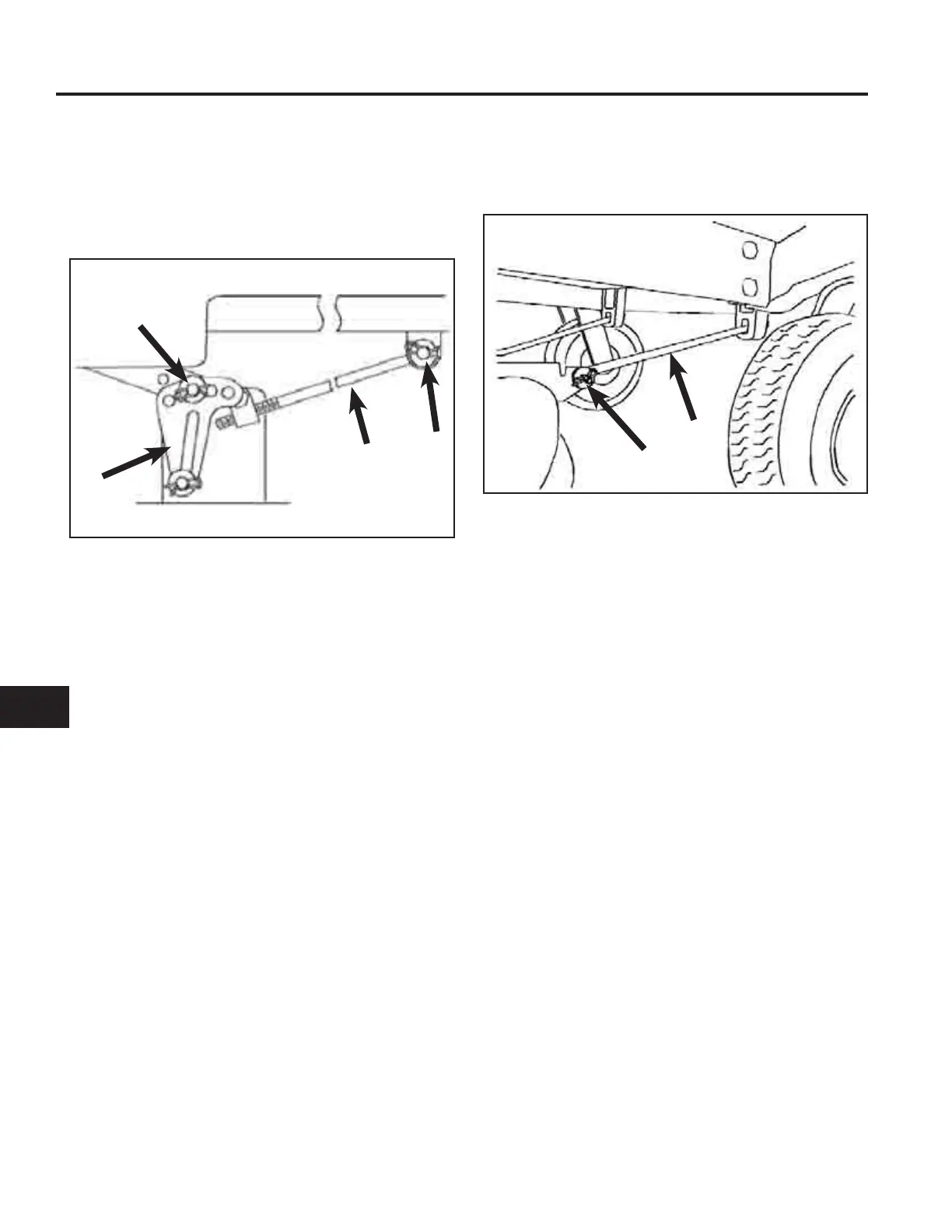

Fig A6 008 fi g. 46 G000547
Fig A6 007 fi g. 42 G000542
4. Remove the hairpin cotter and clevis pin from the
front support rod on each side of the mower (Fig.
A6 008).
Note: Before removing the mower, make a note of
which holes are used in the leveling brackets
(Fig. A6 007).
Removing the Mower
A. Leveling bracket C. Adjusting rod
B. Hairpin cotter and
washer
A
B
C
B
A. Hairpin cotter and B. Support rod
clevis
A
B
