HYDRO-GEAR TRANSAXLE
TimeCutter
Z Service Manual 4 - 9
Neutral Adjustment
Before making a neutral adjustment, the transaxles
must be warmed up, usually 5 to 10 minutes. Steps to
perform neutral adjustment:
1. Jack-up and support the rear end of the unit.
Place jack stands at the rear to stabilize the unit
(Figure 52).

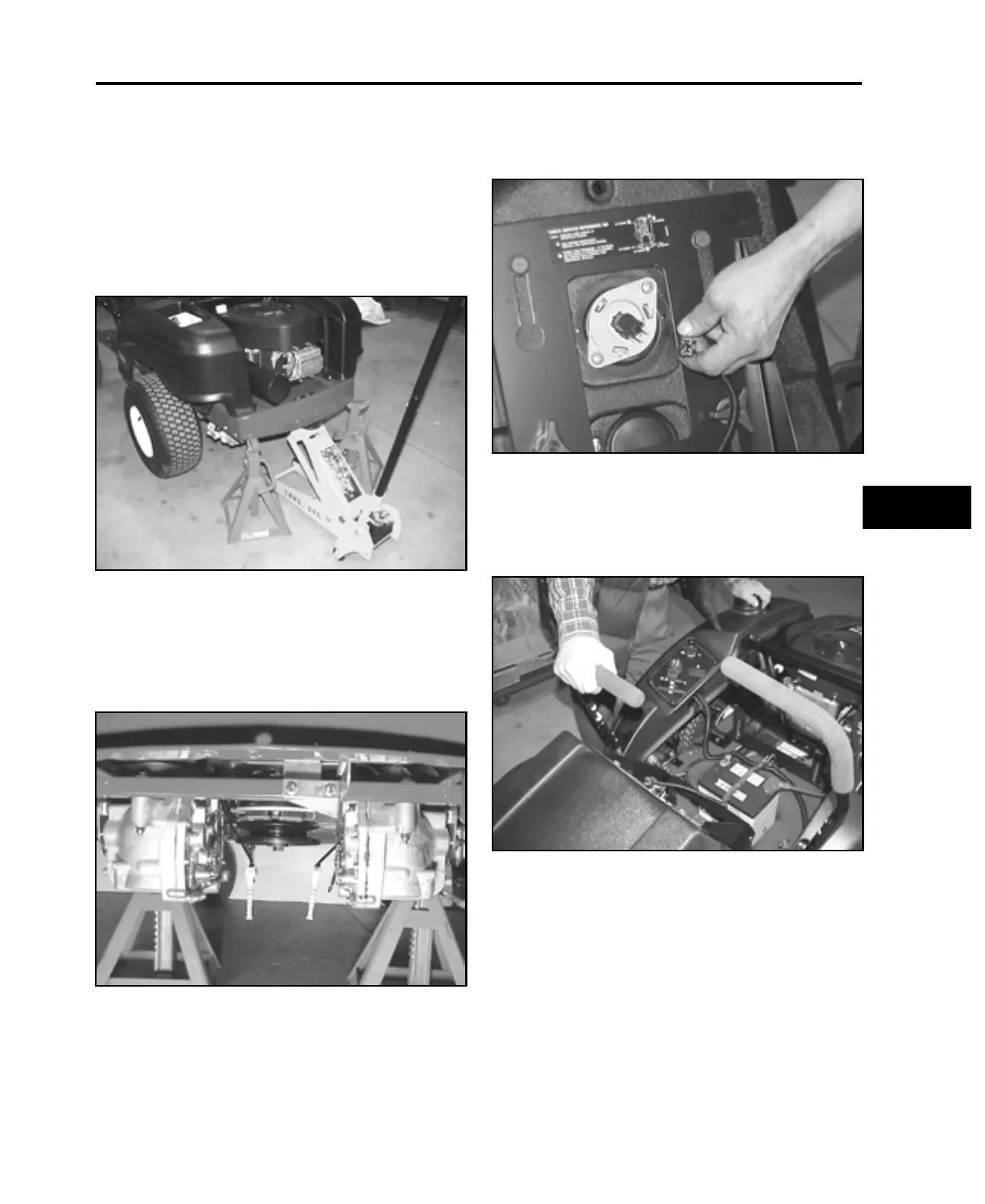

Figure 52
mvc-128
2. Remove the brake arm on the transaxle, you are
performing the neutral adjustment on. In this case,
we are performing a neutral adjustment on both
transaxles. Make sure the brake arms are clear of
the cog brake system disc (Figure 53).
Figure 53
mvc-735
3. Unplug the seat switch and temporarily connect a
jumper wire across the plug connector on the
harness (Figure 54).
Figure 54
mvc-130
4. Put the forward/reverse levers in the park position
and start the engine. Operate the lever of the
transaxle needing adjustment in forward and
reverse (Figure 55).
Figure 55
mvc-136
