CHASSIS
TimeCutter

Z Service Manual 3 - 3
Front Castor Fork Removal and
Installation
Removal
1. Park the machine on a level surface, disengage
the blade control (PTO), and turn the ignition key
to OFF to stop the engine. Remove the ignition
key.
2. Raise the front of the unit high enough so you
have enough room to lower the castor forks from
the pivot castor supports (Figure 7).

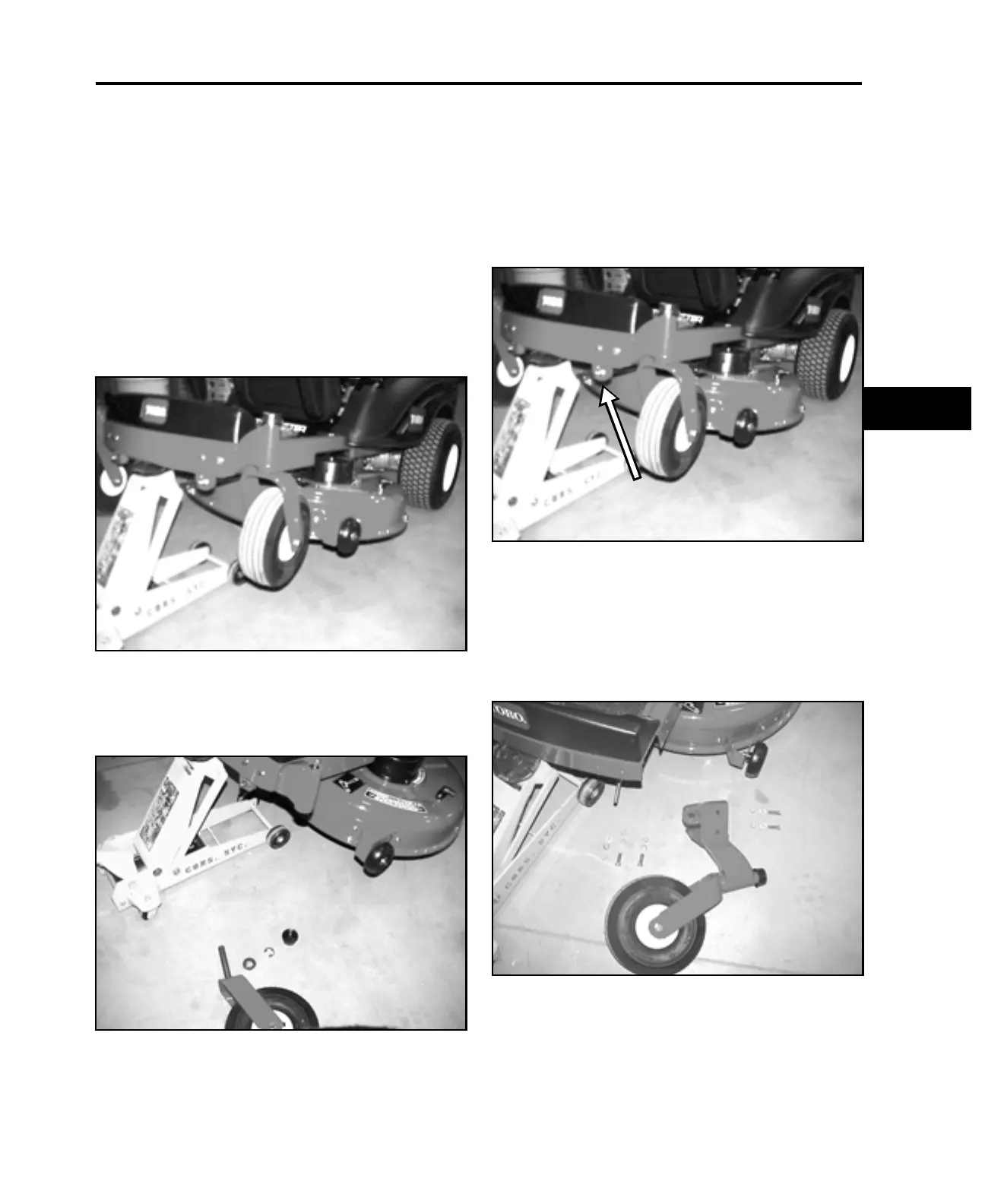

Figure 7
mvc-053
3. Remove the plastic dust cover, e-ring, and
washer. Slide the castor fork down out of the pivot
castor support (Figure 8).
Figure 8
mvc-070
Installation
Follow the removal procedure in reverse.
Castor Support Removal
1. Raise the front end of the unit (Figure 9).
Figure 9
mvc-053
2. Remove the locknut, nut, and washer from the
mower deck hanger rod (Figure 9).
3. Remove the (4) nuts, bolts, and washers holding
the castor support to the frame and remove the
castor support (Figure 10).
Figure 10
mvc-070
