Specifying Information—Network LTC Plus Satellites
LTCPXXX6XX
Configuration Stations Cabinet Output Communication Options
LTCP XX X 6 X X
LTCP—Network LTC Plus 16—16 Stations
24—24 Stations
32—32 Stations
40—40 Stations
48—48 Stations
56—56 Stations
64—64 Stations
P—Plastic, Green
S—Stainless Steel
(Painted)
T—Desert Sand
B—Tree Bark)
6—24 VAC
Electric
A—Stand-alone
M—2-Way Wire Modem
R—UHF Radio
0—No Options
1—Large-capacity Terminal Block w/Standard Surge
2—Large-capacity Terminal Block w/Additional Surge
3—Large-capacity Terminal Block & Switches
4—Large-capacity Terminal Block w/Additional Surge & Switches
Example: When specifying a 64-station Network LTC Plus Satellite with a plastic cabinet, electric output with a 2-way wire modem
and optional large-capacity terminal block, you would specify: LTCP64P6M1
Note: FIUs must be ordered separately.
Features
• Exclusive Toro Flowsafe™ protects flow-managed programs
in the event of a central or wireline interruption
• Transition from stand-alone to central control after
construction is complete
• 16 independent programs with up to eight running
simultaneously (The Network LTC with Electric-hydraulic
converters has 8 independent programs with up to 4
running simultaneously)
• Wireless, wireline and hybrid configurations allow you to
customize the communication network to meet site specific
needs.
• 16-64 stations in eight-station increments on the Network
• LTC Plus. The Electric-hydraulic converter models offer 12
to 24 stations in four-station increments
• Standard or large-capacity terminal connections (accepts
two 14-gauge wires)
• Standard or additional surge protection
• Manual On/Off station switches (optional)
• 14-day calendar or 1- to 29- day Interval scheduling by
program
• 0 to 3 repeats per program
• 0- to 59-minute soak time between repeats
• Up to 12 starts per program, per day
• Station run times from 1-minute to 8 hours and 59 minutes
• Global or independent program adjust at the satellite
• Percent adjust by program (10 to 250%)
• Syringe %, allows 10 to 99% operating adjustment.
• Up to 2 non-irrigation (switch) programs available with
central software
• Non-volatile memory saves program data for up to 10 years
without power
• Pump and Common control module with standard surge
protection
• Manual operation by program (normal or syringe),
independent station or multiple stations (up to 6)
• Patented Toro Hot Post for easy valve activation and
identification
• Maximum lightning protection with EHC’s
Central Control Compatibility
• The Toro® SitePro® Central Control System
Electrical Specifications
• Input power (Network LTC Plus):
• 115/230 V ac, 50/60 Hz
• 0,150 amps @ 115 V ac, 60 Hz (no load)
• 0,872 amps @ 115 V ac, 60 Hz (max load)
• 0,140 amps @ 230 V ac, 50 Hz (no load)
• 0,480 amps @ 230 V ac, 50 Hz (max load)
• Input power (Network LTC with Electric-hydraulic
Converters):
• 115/230 V ac, 50/60 Hz
• 0,15 amps @ 115 V ac, 60 Hz (no load)
• 1,09 amps @ 115 V ac, 60 Hz (max load)
• 0,15 amps @ 230 V ac, 50 Hz (no load)
• 0,59 amps @ 230 V ac, 50 Hz (max load)
• Output power:
• 24 V ac
• 3,15 amps (76 VA) total
Dimensions
• LTC Plus Plastic Cabinet:
43cm W x 101cm H x 38cm D (17” W x 40” H x 16” D)
• LTC Plus Stainless Steel (painted):
33cm W x 91cm H x 33cm D (13” W x 35.75” H x 13” D)
• LTC with Electric-hydraulic Converters:
41cm W x 99cm H x 38cm D (16” W x 39”H x 16” D)
Warranty
• 1 Year

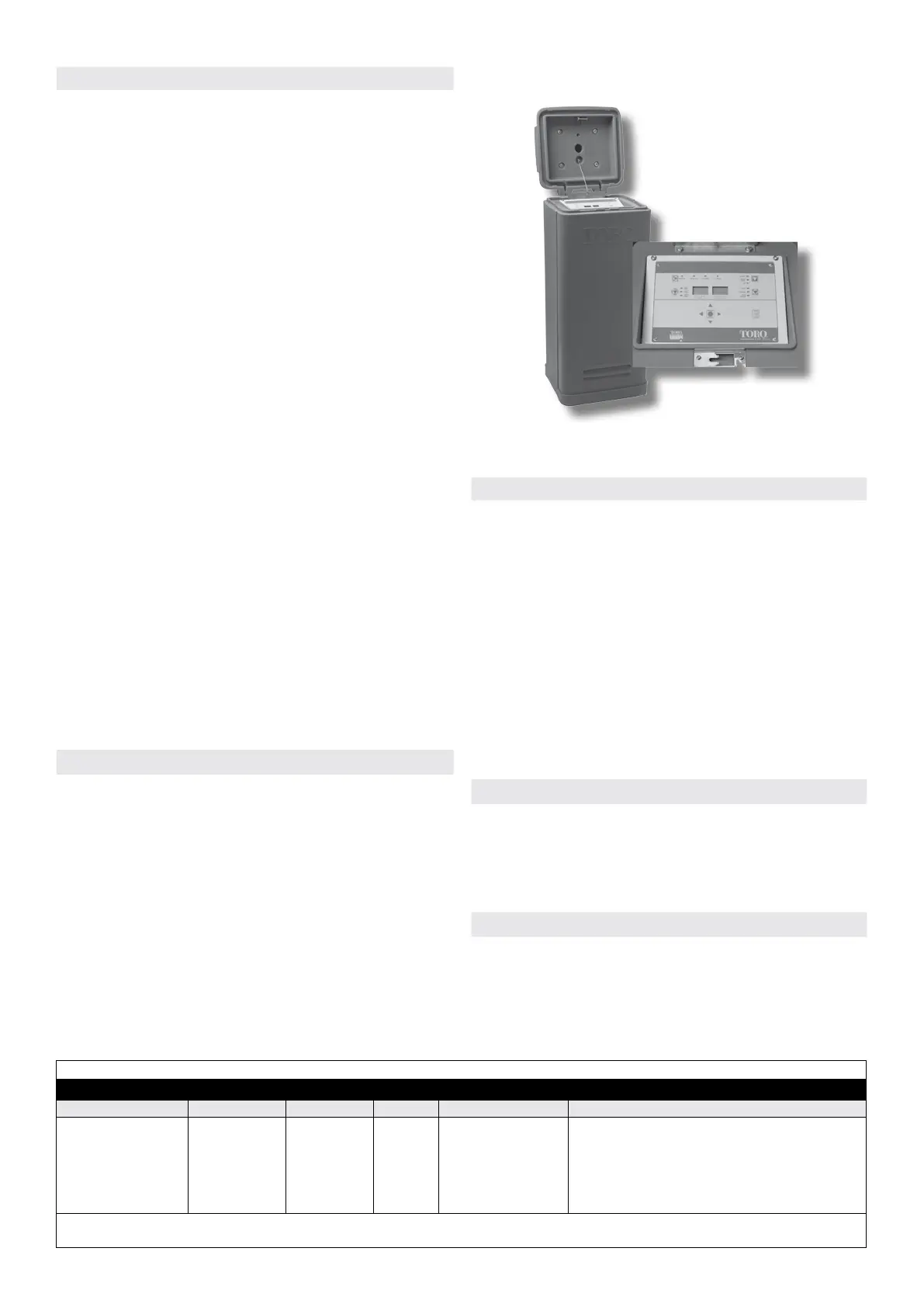

Network LTC
®
Plus Satellites
Pedestal available in
standard Green, Desert
Sand and Tree Bark
