16
835S Conversion Assemblies
Models Description
835S-3134
835S-3537
835S-3134E
835S-3537E
835S w/31–34 Nozzles
(33 Nozzle Installed)
835S w/35–37 Nozzles
(35 Nozzle Installed)
835S w/31–34 Nozzles
(33 Nozzle Installed), Effluent
835S w/35–37 Nozzles
(35 Nozzle Installed), Effluent
855S Conversion Assemblies—(Ribbed Body)
Models Description
855S-5154
855S-5558
855S-59
855S-5154E
855S-5558E
855S-59E
102-5011
855S w/51–54 Nozzles
(53 Nozzle Installed)
855S w/55–58 Nozzles
(55 Nozzle Installed)
(59 Nozzle installed)
855S w/51–54 Nozzles
(53 Nozzle Installed), Effluent
855S w/55–58 Nozzles
(55 Nozzle Installed),
Effluent
(59 Nozzle installed),
Effluent
690 Adapter allows you to upgrade any
690 with 855S conversions
855S Conversion Assemblies—(Ribless Body)
Models
Description
855S-5154R
855S-5558R
855S-59R
855S-5154RE
855S-5558RE
855S-59RE
855S w/51–54 Nozzles
(53 Nozzle Installed)
855S w/55–58 Nozzles
(55 Nozzle Installed)
(59 Nozzle Installed)
855S w/51–54 Nozzles
(53 Nozzle Installed), Effluent
855S w/55–58 Nozzles
(55 Nozzle Installed), Effluent
(59 Nozzle installed, Effluent)

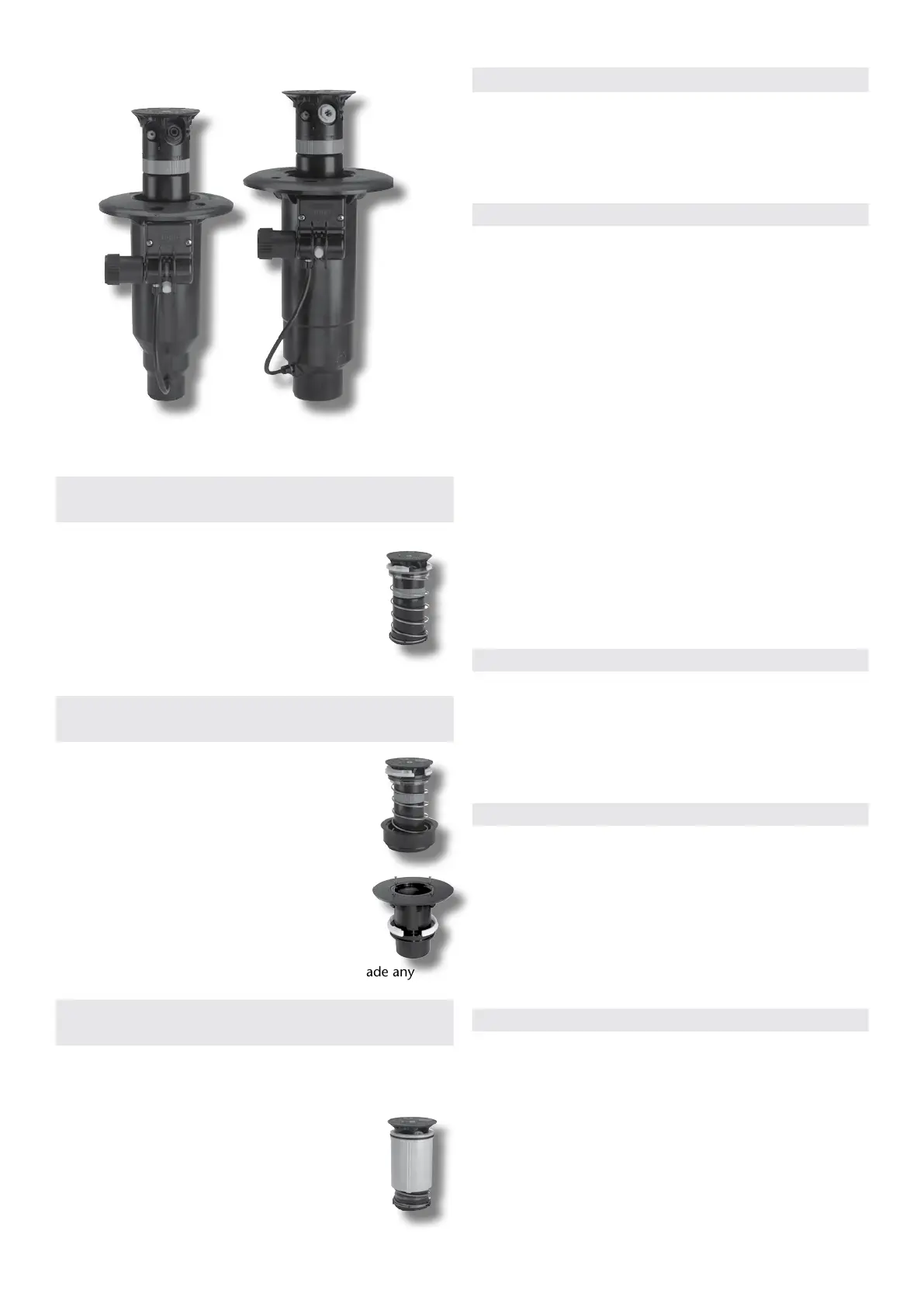

835S
855S
835S/855S Series
Features
• Trajectory 24 positions from 7 to 30 degrees in 1 degree
increments.
• Spike-guard solenoid with 20,000 volt lightning rating.
• Arc adjustment - 40 - 330 degrees and true full-circle in
one.
• Ratcheting riser allows adjustment with no disassembly.
Operating Specifications
• Inlet:
• 835S: 25mm (1”) NPT, BSP or ACME
• 855S: 38mm (1.5”) NPT, BSP or ACME
• Radius:
• 835S: 12,8 – 28,0m (42’ – 92’)
• 855S: 15,9 – 30,5m (52’ – 100’)
• Flow Rate:
• 835S: 26,9-171,5 LPM (7.1 – 45.3 GPM)
• 855S: 52,6-231,3 LPM (13.9 - 61.1 GPM)
• Precipitation Rates:
• 835S: Minimum: 9mm/hr (.37”/hr);
Maximum: 13,5mm/hr (.53”/hr)
• 855S: Minimum: 11mm/hr (.43”/hr);
Maximum: 15mm/hr (.60”/hr)
• Pilot Valve: Selectable at 50, 65, 80 and 100 psi
• Recommended Operating Pressure Range:
4,5-6,9 Bar (65-100 psi)
Maximum: 10,3 Bar (150 psi)
Minimum: 2,8 Bar (40 psi)
• Electric Valve-in-Head Solenoid: 24V ac, 50/60 Hz
• Inrush: 50 Hz, 0,17 Amps; 60 Hz, 0.12 Amps
• Holding: 50 Hz, 0,15 Amps; 60 Hz, 0.10 Amps
• Trajectory: 24 positions from 7° - 30° in 1° increments
• Check-O-Matic maintains up to 11,2m (37’) elevation
Nozzle Selection
• 835S has eight nozzle variations (30, 31, 32, 33, 34, 35, 36
and 37)
• 855S has nine nozzle variations (51, 52, 53, 54, 55, 56, 57,
58 and 59)
• Four in-line nozzles, rotating stream pattern
• One back nozzle position
• Stator variations: 835S – 3 and 855S – 3
Dimensions
• Body diameter:
• 835S: 16,5cm (6.5”)
• 855S: 19cm (7.5”)
• Body height:
• 835S: 25cm (10”)
• 855S: 29cm (11.38”)
• Weight:
• 835S: 1,35kg (2.98 lbs.)
• 855S: 1,68kg (3.70 lbs.)
• Pop-up height to nozzle: 8,25cm (3.25”)
Warranty
• Two years
Note: Mainless and Back Nozzle Data Located on Page 29.
Apex Data Located on Page 18.
