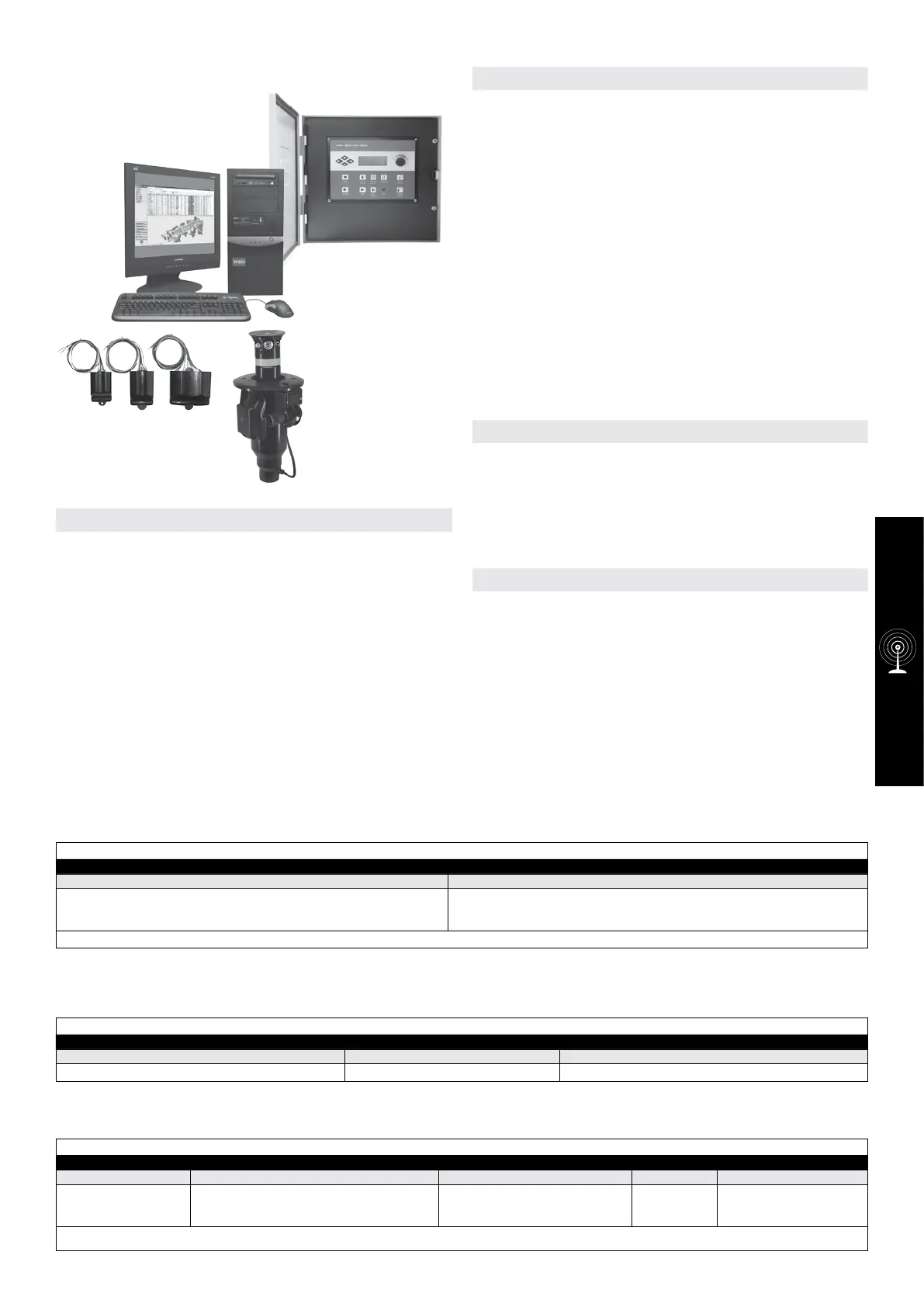

Toro
®
GDC System
1, 2 and 4-station Decoders
GDC 200
Specifying Information— Stand-alone Gateway
DEC-SA-200
Type Communication Sta. Count
DEC SA 200
DEC—Decoder SA—Stand-alone 200—200 Stations
Specifying Information—Decoder
DEC-ISP-X
Type Configuration
DEC XX
DEC-ISP—Decoder* 1—1-station
2—2-station
4—4-station
Example: A 2-station GDC Decoder would be specified as: DEC-ISP-2
*Refer to sprinkler pages for specifying information on Sprinkler Decoders
Specifications
• Maximum number of wire paths:
• 16 per gateway
• Maximum stations per gateway:
• 200 on stand-alone
• 1600 on Central Control System
• Maximum stations per system:
• 200 on stand-alone
• 6400 on Central Control System
• Simultaneous stations per output:
• 20 on stand-alone
• 100 on Central Control System
• Maximum distance from central to decoder (using 14
gauge wire): 4,18km (2.6 miles)
• Maximum distance from decoder to sprinkler (using 14
gauge wire): 121,9m (400 ft.)
• Solenoids per output: 2 DCLS-P
• Stations per decoder: 1, 2 or 4
• Operating temperature: 0°C to 60°C (32°F to 140°F)
• Storage temperature: -30°C to 100°C (-22°F to 212°F)
Electrical Specifications
• ISP decoders are rated at 20 KV surge protection—the
highest in the industry.
• Input Power:
• 100-240 V ac, 50/60 Hz
• Gateway output voltage: 42,5 V ac max
• Gateway output power: 98 VA max
• Decoder wiring: 14 gauge or 2.5mm
2
Warranty
• 1 Year
Features
• Operate with Lynx or SitePro® Central Control System or
use it as a stand-alone system with the GDC 200
• Station-based flow management
• Central Control System
• Mapping capabilities
• Remote hand-held operation
• Weather station integration
• Pump station integration
• Enhanced diagnostics
• Communication
• Electrical shorts/opens
• Solenoid check
• No holding power required to operate stations
• Decoder identification is a unique 5-character address
• Non-corrosive lockable wall mount cabinet, indoor/outdoor
installation
In addition to our
standard GDC
decoders, Toro®
offers most valve-in-
head sprinkler models
with an integrated
decoder.
Specifying Information—GDC System
XX-0X-X-X8
Type Computer Hardware Service Level Field Hardware
XX 0X X X 8
LX—Lynx
SP—SitePro
0—Budget Computer
1—Standard Computer
4—Premium Computer (Site Pro only)
1—1-year NSN
5—5-years NSN (Site Pro only)
2— SE
3— PE
4— CE
8— Network GDC
Example: A Lynx PE standard computer with 1-year of NSN and GDC System field hardware would be specified as: LX-01-1-38
