34
690

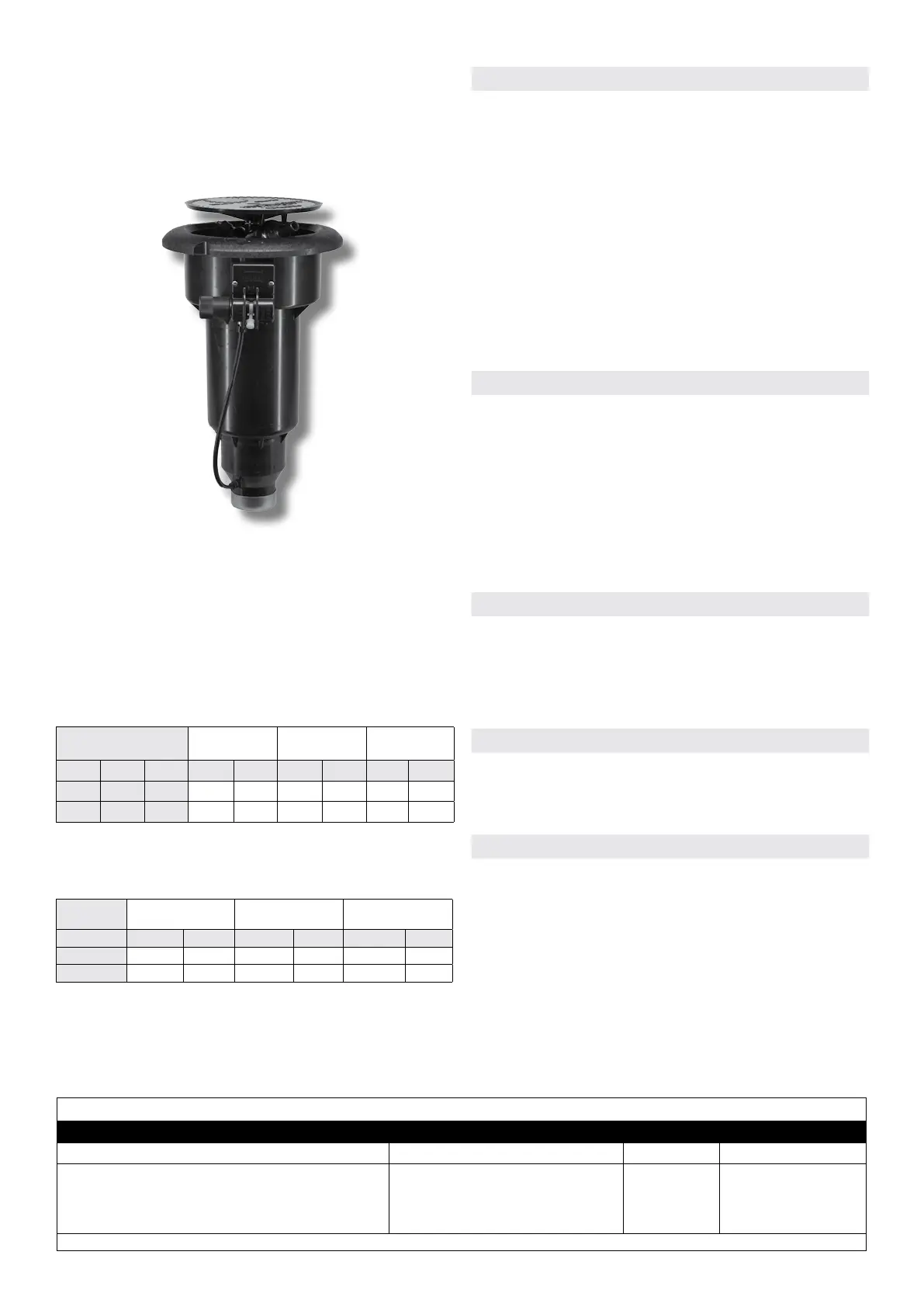

690 Series
690 Series Performance Chart—(U.S.)
Base
Pressure
Nozzle Set
90
Nozzle Set
91
Nozzle Set
92
psi Radius GPM Radius GPM Radius GPM
80 87 51.0 96 61.2 100 74.0
100 90 57.1 100 73.5 108 82.2
Radius shown in feet.
Sprinkler radius of throw per ASAE standard S398.1.
Specifying Information—690
69X-0X-XXX
Arc Valve-In-Head Type Nozzle Pressure Regulation*
69X 0X XX X
1—90°
2—180°
4—Full-circle
6—Full-circle, 2-speed (60°–120°)
8—Full-circle, 2-speed (180°–180°)
A—150°
B—165°
C—195°
D—210°
1—Normally Open Hydraulic
2—Check-O-Matic
6—Electric
90
91
92
8—80 psi
1—100 psi
Example: When specifying a 690 Series Sprinkler with a 180° arc, electric valve-in-head, #91 nozzle, and pressure regulation at 80 psi, you would specify: 692-06-918
*Electric models only.
690 Series Performance Chart—(Metric)
Base
Pressure
Nozzle Set
90
Nozzle Set
91
Nozzle Set
92
Bar kPa Kg/cm
2
Radius LPM Radius LPM Radius LPM
5,5 550 5,61 26,5 193,0 29,3 231,3 30,5 280,1
6,9 690 7,04 27,4 216,1 30,5 278,2 32,9 311,2
Radius shown in meters.
Sprinkler radius of throw per ASAE standard S398.1.
Features
• Used in single row applications the 696 2-speed models
operate at a slower speed over the 60 degree non-overlap
area and a faster speed over the 120 degree overlapped
areas to provide a balanced application rate
• Used in double row applications the 698 2-speed models
operate at a slower speed over the 180 degree non-overlap
area and a faster speed over the 180 degree overlapped
areas to provide a balanced application rate
• Radius and flow capabilities are perfect for cooling and
rinsing artificial playing surfaces such as football fields
• Manual control at the sprinkler, On-Off-Auto (electric)
• Time-proven, gear-drive design
• All internal components serviceable from the top of the
sprinkler
• Durable engineering plastic and stainless steel construction
• Nine arc selections
Operating Specifications
• Inlet: 3,8cm (1 .5”) NPT
• Radius: 26,5 – 32,9m (87’ – 108’)
• Flow Rate: 193,0 – 311,2 LPM (51,0 – 82,2 GPM)
• Recommended Operating Pressure Range:
• 5,5-7,0 Bar (80-100 psi)
• Maximum pressure: 10,3 Bar psi (150 psi)
• Minimum pressure: 2,8 Bar (40 psi)
• Electric Valve-In-Head Solenoid: 24V ac, 50/60 Hz
• Inrush: 60 Hz; 0,30 Amps
• Holding: 60 Hz; 0,20 Amps
• Check-O-Matic: Maintains 11,2m (37’) of elevation
Additional Features
• Manual control at the sprinkler, On-Off-Auto (electric)
• Time-proven, gear-drive design
• All internal components serviceable from the top of the
sprinkler
• Durable engineering plastic and stainless steel construction
• Nine arc selections
Dimensions
• Body diameter: 25,4cm (10”)
• Body height: 40,5cm (16”)
• Weight: 2,5 kg (5.6 lbs)
• Pop-up height to nozzle: 20mm (0.75”)
Warranty
• Two years
