ToroTwinCylinderEngineInstallation(continued)
Note:VerifyEnginespeedissettoproperRPMspecicationforthe
applicablemodel.
KawasakiEngineReplacement
KawasakiEngineRemoval
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Removetheengineguard.
4.Removethemufer.
5.Removethemowerbelt.
6.Removethehydrostaticdrivebelt.
7.Disconnectthechassiswireharnessfromthemainenginewireharness.
8.Disconnecttheredwirefromthestarter.

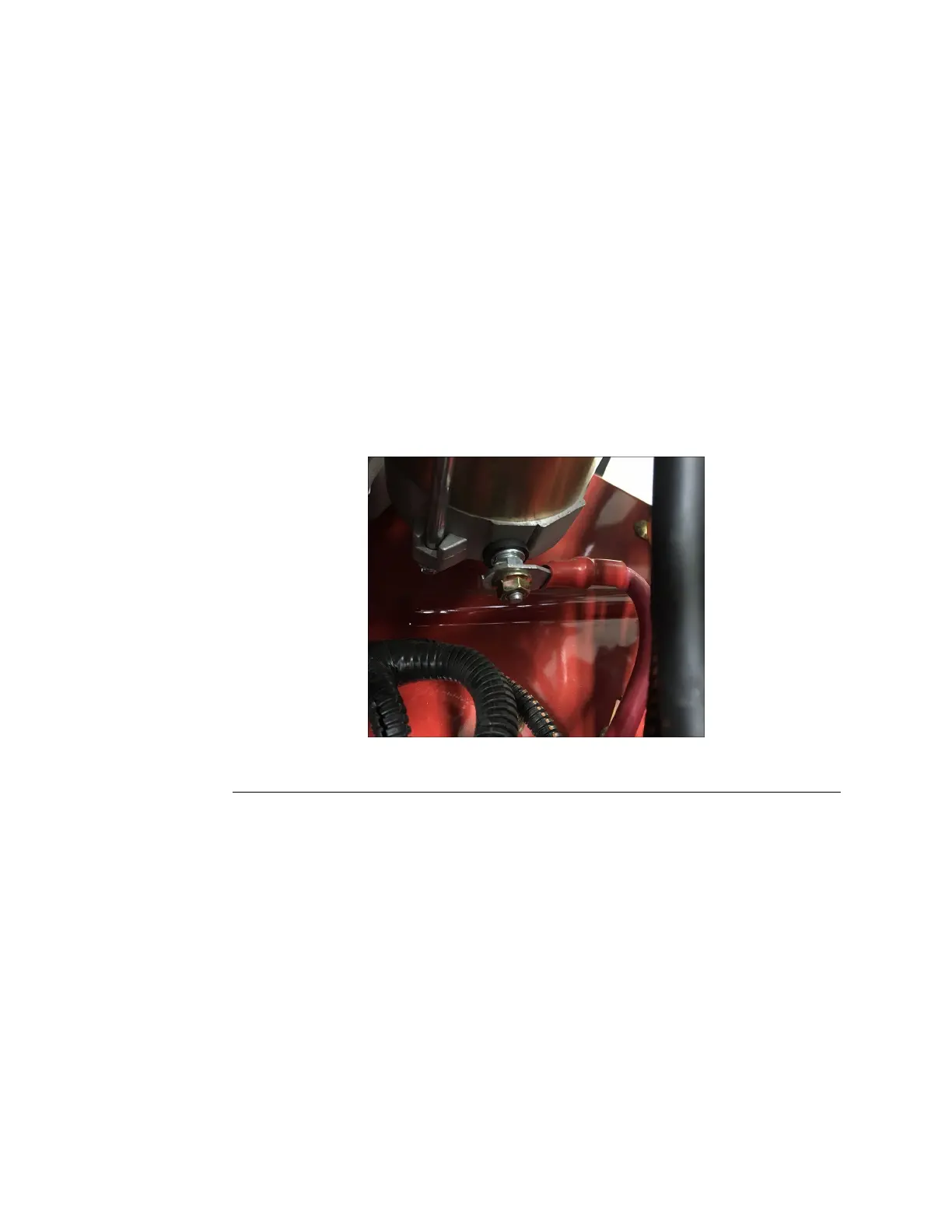

g321704
Figure15
9.Disconnecttheblackenginegroundwire.
10.Disconnectthefuelsupplylineatthefuellter.
11.RemoveventlineatsplicewithT orosuppliedhose.
12.Disconnectthethrottlecable.
13.Disconnectthechokecable.
14.Removetheclutchmountingboltandwasher.Slidetheclutchoffofthe
crankshaft.
15.Removetheenginepulley.
16.Removetheenginemountingbolts.
17.Lifttheengineawayfromtheframe.
KawasakiEngineInstallation
1.Preparetheframeandsecureanyfuellinesorwireharnesscomponents.
2.Lowertheengineontotheframe.
Engine:ServiceandRepairs
Page4–10
TitanServiceManual
3438-774RevA
