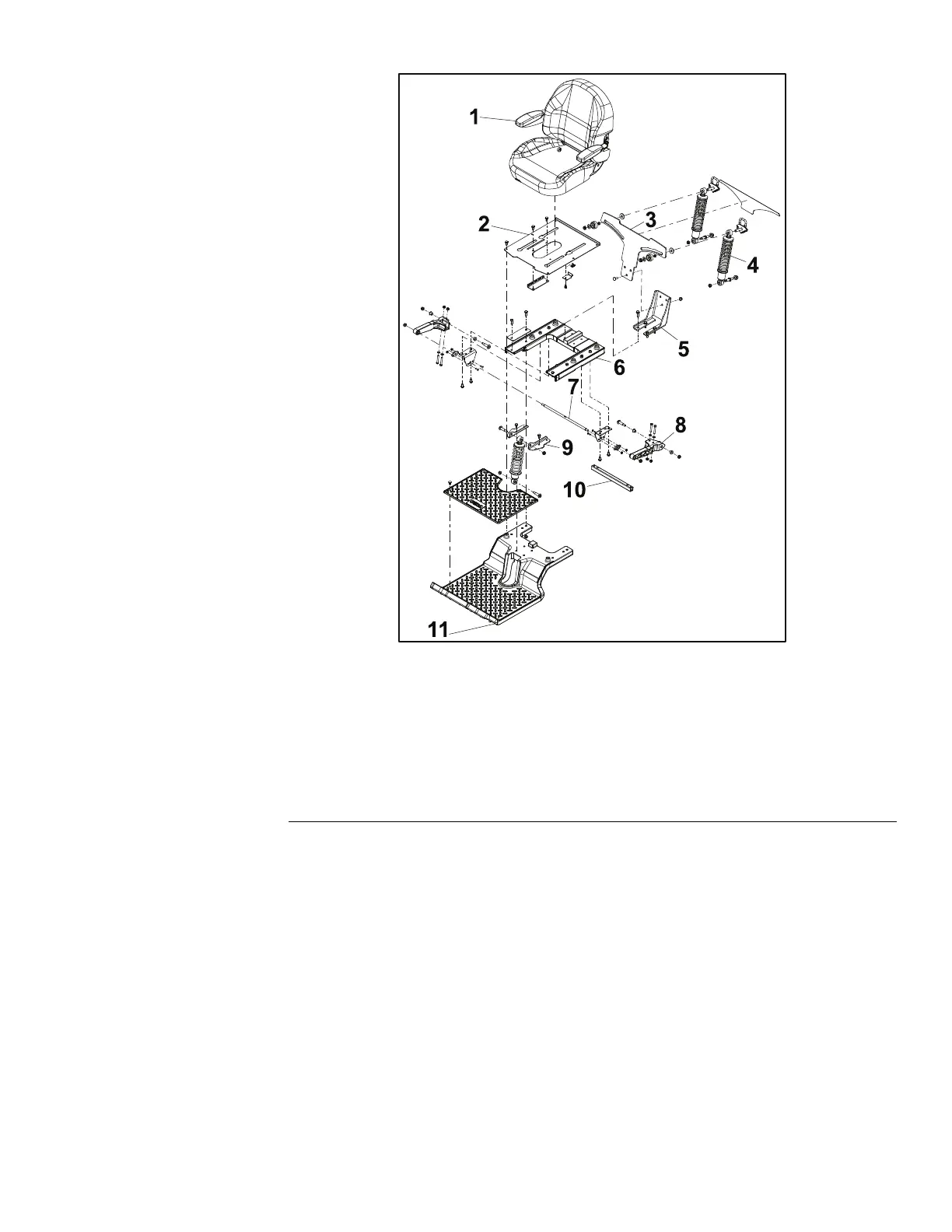

SeatandMyRIDE™PlatformReplacement(MRModelsOnly)
g334845
Figure29
1.SeatAsm
7.PivotRod
2.SeatPan
8.TrailingArm
3.ShockMountingBracket9.UpperShockMountBracket
4.Shock/SpringAsm
10.TrailingArmTube
5.LowerMountBracket
11.FrontSubframe
6.RearSubframe
TitanServiceManual
Page5–13
Chassis:ServiceandRepairs
3438-774RevA
