ThrottleControlAssemblyInstallation(continued)

8.Connectthebatterybyinstallingthepositivecablerst,thenthenegative

cabletothebattery.

ChokeControlAssemblyReplacement

ChokeControlAssemblyRemoval

1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,

waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake.

2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive

cablefromthebattery.

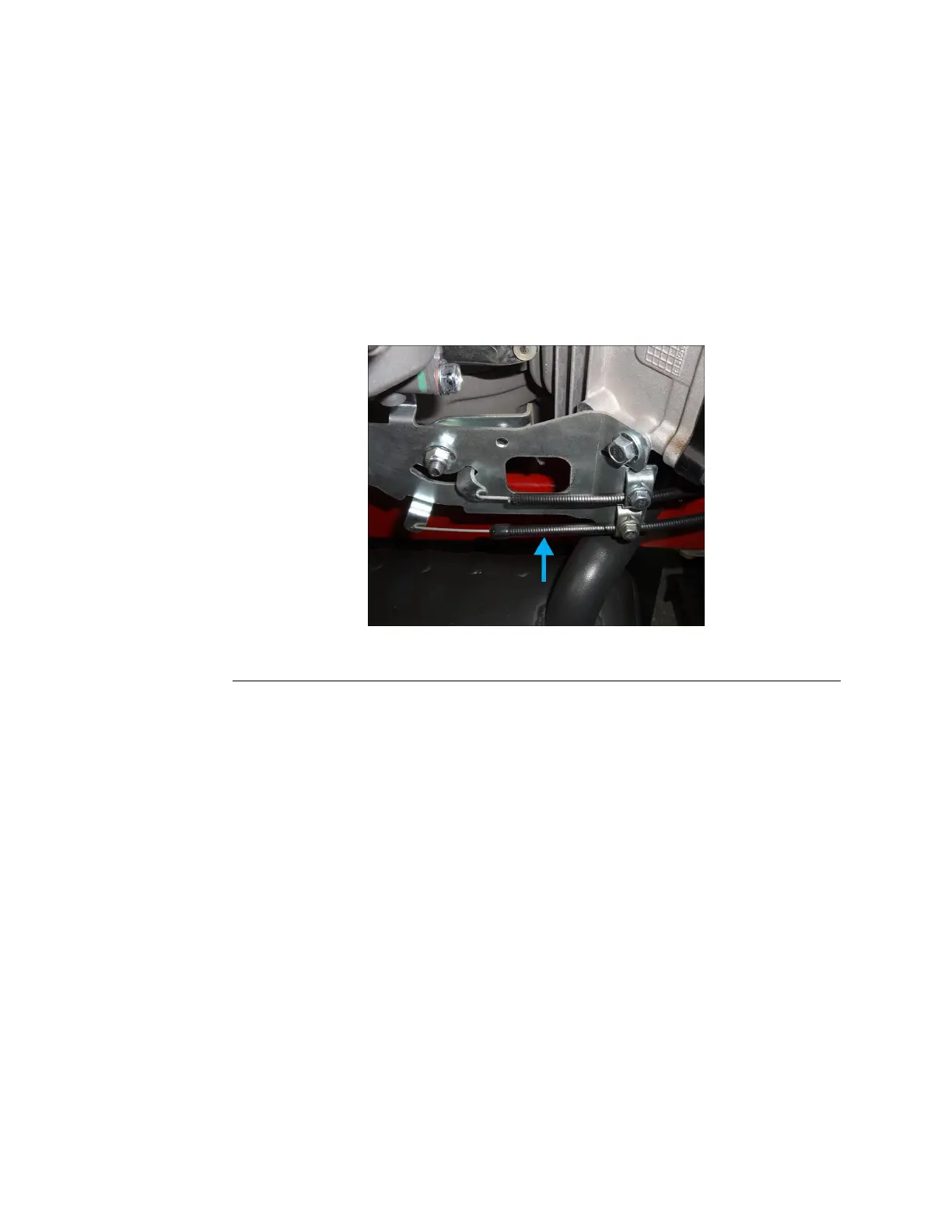

3.Loosentheclampsecuringthechokecabletothechokeplateontheengine.

g323084

Figure46

4.Removethechokecablefromtheplate,notingthepositionofthecable

intheplate.

5.Removethecontrolpanelassemblyfromtherightconsole.

6.Onthebottomsideofthecontrolpanelassembly,loosenthejamnut

securingthechokeleverinplace.Removethenutfromthechokecable.

7.Pullthechokecableassemblythroughthecontrolpanelassemblyandout

ofthemachine.

ChokeControlAssemblyInstallation

1.Routethechokecablethroughthecontrolpanelassembly

2.Threadthejamnutoverthechokecableuptothecontrolpanel.

Chassis:ServiceandRepairs

Page5–22

TitanServiceManual

3438-774RevA
