LeftConsoleInstallation(continued)
5.Installthe3(T30)shoulderscrewssecuringtheleftconsoletothemachine.
Torquescrewsto11N•m(100in-lb).
g321205

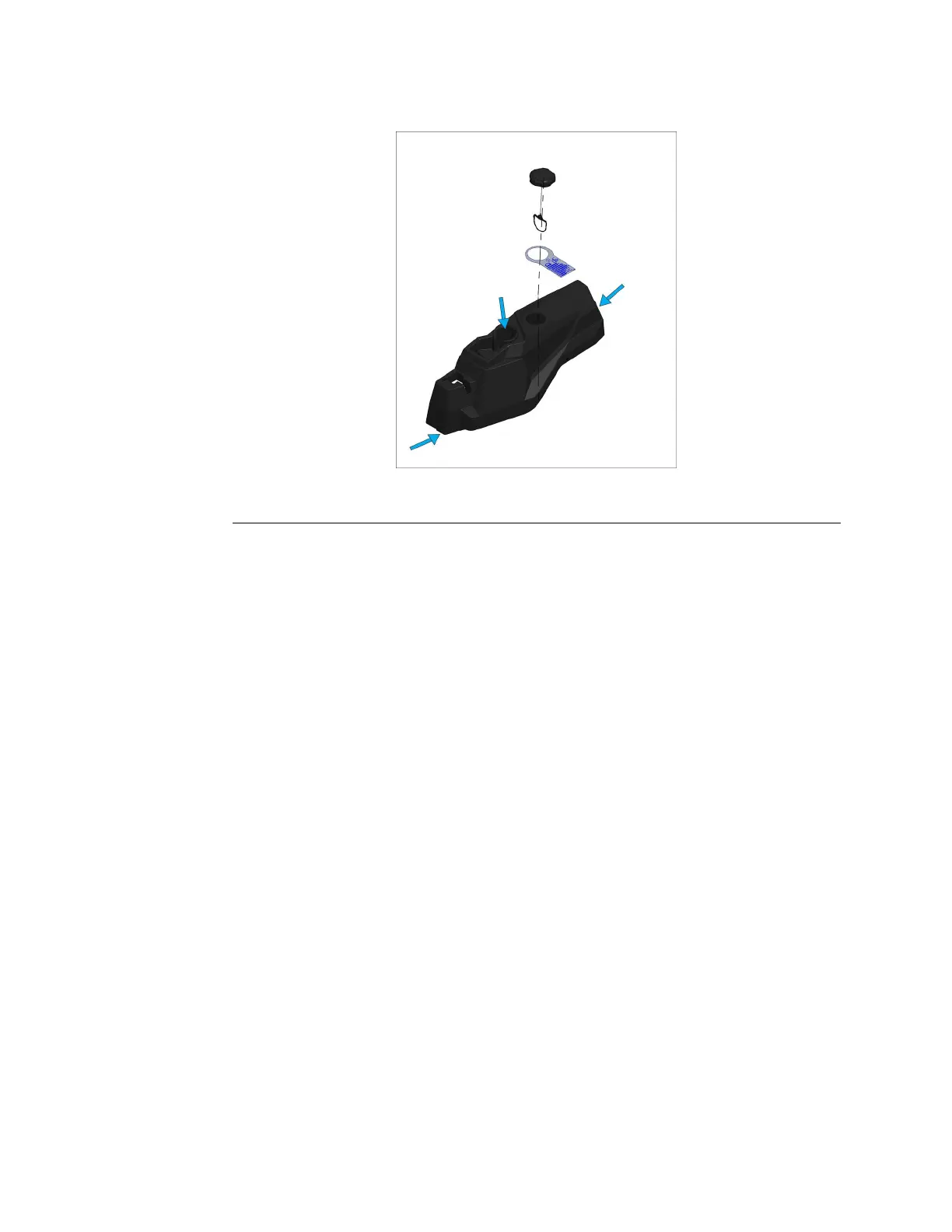

Figure22
6.Installthebatteryontothebatterytrayandsecurewiththebungeestrap
7.Connectthebatterybyinstallingthepositivecablerst,thenthenegative
cabletothebattery.
RightConsoleReplacement
RightConsoleRemoval
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stoptheengine,
waitforallmovingpartstostop,andremovekey.Engagetheparkingbrake.
2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive
cablefromthebattery.
3.Removethe3(T30)shoulderscrewsfromtherightconsole.
Chassis:ServiceandRepairs
Page5–8
TitanServiceManual
3438-774RevA
