34
Equipment
connections
Equipment connections

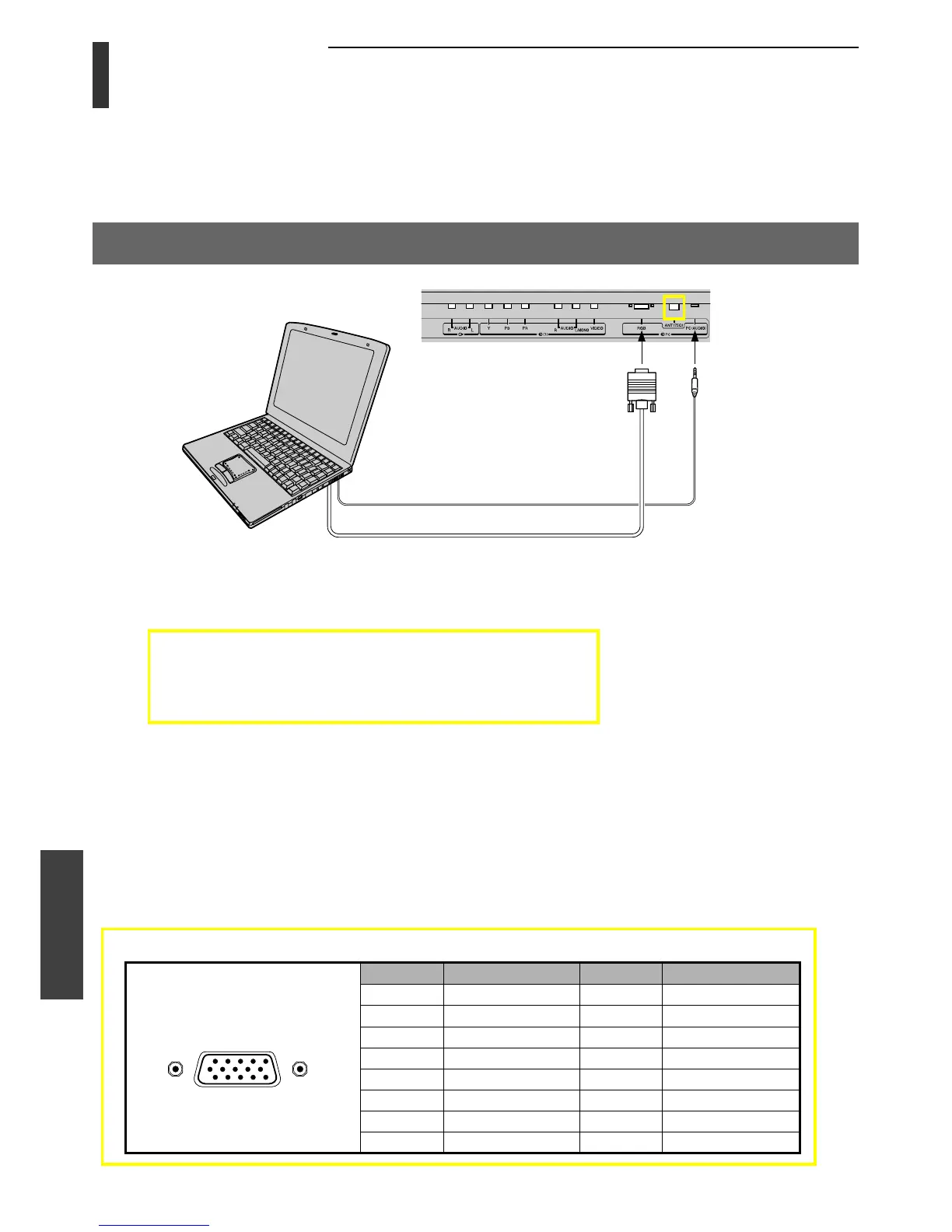

Connecting a computer
Before connecting PC and audio cables, remove the back terminal panel cover (see page 11).
An analogue RGB (15-pin) computer cable can be connected.
To connect a computer
Connect a PC cable from the computer to the RGB/PC input terminal on the back of the TV.
The following signal can be displayed:
20CL7A/20CL7E/20CL7T : • VGA: VESA 640 x 480 @ 60 Hz
15CL7A/15CL7E/15CL7T : • XGA: VESA 1024 x 768 @ 60Hz
• SVGA: VESA 800 x 600 @ 60 Hz
• VGA: VESA 640 x 480 @ 60 Hz
Other formats or non-standard signals may not be displayed correctly.
Note:
• The colour blur on the picture may occur according to input signals.
• Some PC models cannot be connected to this TV.
• Computers with a DOS/V compatible mini D-sub 15-pin terminal do not require an adapter.
• Some input signals may cause a bar to appear in the upper, lower, right, or left side of the screen, or may obscure
parts of the picture. This is not a malfunction.
• If the edges of the picture are stretched, readjust the picture position adjustments in the PC’s menu.
• Depending on the DVD’s title and the specification of the PC on which you are playing the DVD-Video, some
scenes may be skipped or you may not be able to pause during multi-angle scenes. This is not a malfunction.
Audio cable for PC-to-TV
connection (not supplied)
RGB PC cable
(not supplied)
Mini D-sub
15-pin
Computer
TV back panel
Signal names for mini D-sub 15 pin connector
Pin assignment for RGB/PC
terminal
Pin No. Signal name Pin No. Signal name
1R 9 NC
2 G 10 Ground
3B 11 NC
4 NC (not connected) 12 NC
5 Ground 13 H-sync
6 Ground 14 V-sync
7 Ground 15 NC
8 Ground
11
15
610
15
