10
INTRODUCTION
INTRODUCTION
Installation (Continued)
CAUTION: Before connecting any external equipment, turn off all main power switches.
Refer to the owner’s manual of the equipment to be connected as well.

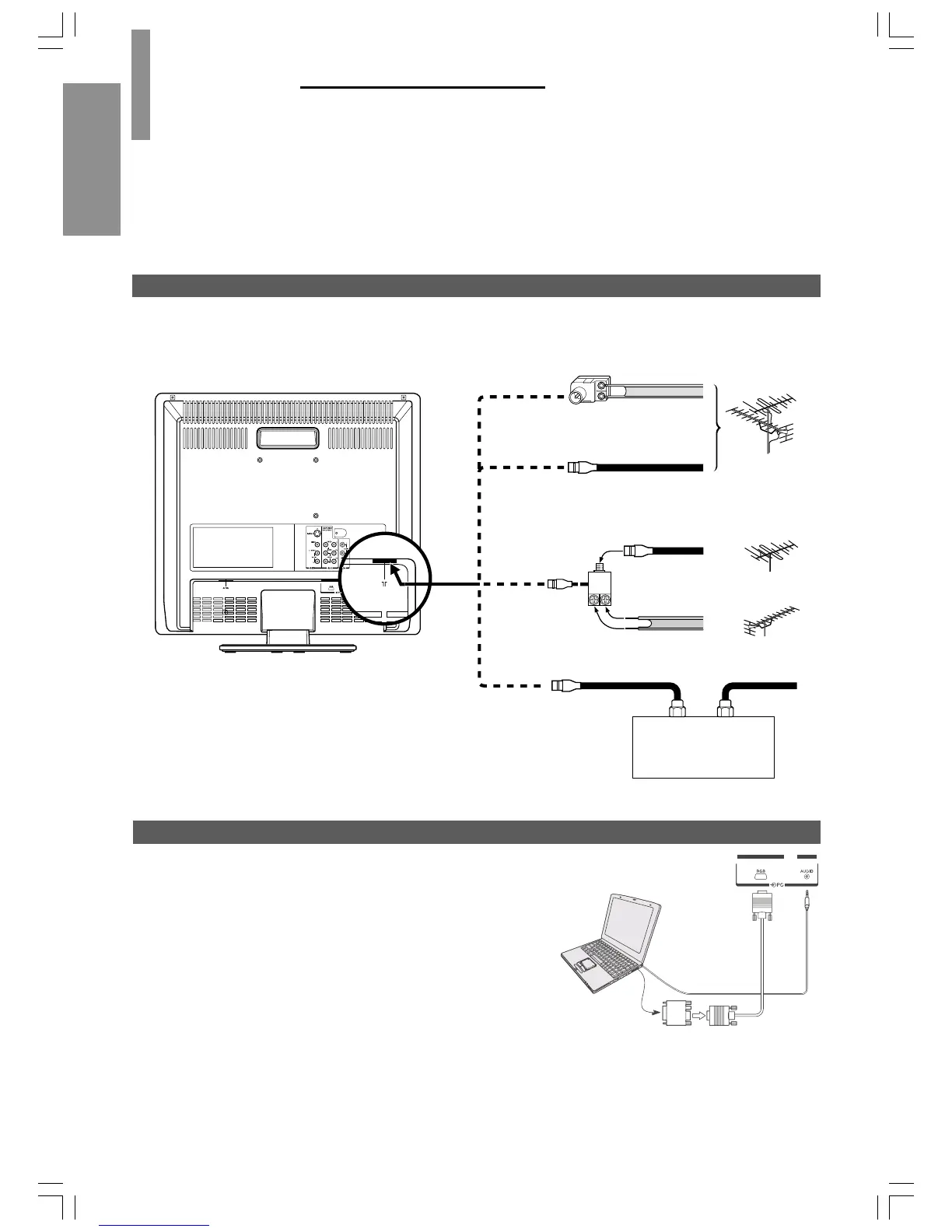

To connect an antenna
Optimum reception of color requires a good signal and will generally mean that an outdoor antenna must be used. The exact
type and positioning of the antenna will depend upon your particular area. Your Toshiba dealer or service personnel can best
advise you on which antenna to use in your area.
Back side
300-ohm twin-lead feeder
Antenna adapter (Not
supplied)
75-ohm coaxial cable
or
U/V mixer
(Not supplied)
Input
Output
Cable TV
Converter/Decoder
VHF/UHF
VHF
UHF
Cable TV
or
or
Notes
• It is recommended to use the 75-ohm coaxial cable to eliminate interference and noise.
• The antenna cable should not be bundled with the power cord and the like.
To connect a PC
This connection allows you to view the image of a personal
computer (PC) on the TV screen. When connecting a PC to the
TV, use an analog RGB (15-pin) computer cable and a PC auido
cable.
• To use a PC, set the monitor output resolution on the PC
before connecting it to the TV. The following signals can be
displayed.
SVGA: VESA 800 x 600 @ 60Hz
Other formats or non-standard signals may not be
displayed correctly.
• To display the optimum picture, use the PC setting feature.
See "Using the PC Setting Feature" on page 26 for details.
Notes:
• Some PC models cannot be connected to this TV.
• An Adapter is not needed for computers with a DOS/V compatible mini D-sub 15-pin terminal.
• Depending on the DVD’s title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be
skipped or you may not be able to pause during multi-angle scenes.
Back of TV
Computer
Audio
output
RGB/PC
output
Audio
cable
Conversion adapter
(if necessary)
20VL66E_En_09_12(1) 6/29/06, 5:20 PM10
