12
INTRODUCTION

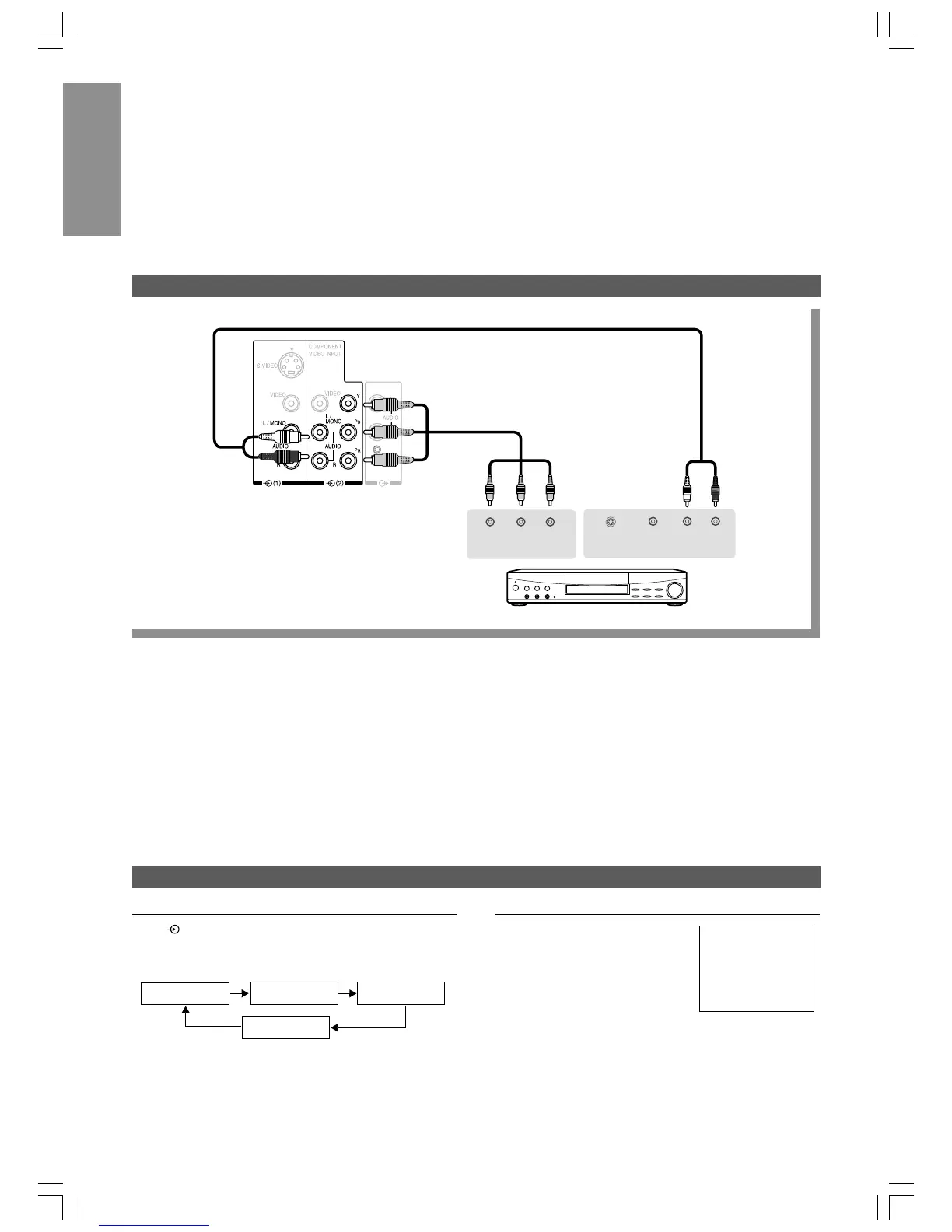

To connect video and audio equipment with component video terminals
When connecting video equipment to the TV:
• For good picture quality, use a standard yellow video
cable.
• For better picture quality, if your equipment has an S-video
output, use an S-video cable instead of a standard yellow
video cable. (You still must connect the standard red and
white audio cables for full system connection, but do not
connect the yellow video cable at the same time, or the
picture performance will be unacceptable.)
• For best picture quality, if your equipment has component
video outputs, use component video cables instead of a
standard video or S-video cable. You must connect the
standard red and white audio cables for full system
connection.
S-VIDEO
OUT
VIDEO
OUT
AUDIO OUT
L
R
Back side
Y
P
B
P
R
COMPONENT VIDEO
DVD player with component video
Video input source
To select the video input source
Press on the remote control or TV repeatedly to view a
signal coming from another device connected to your TV,
such as a VCR or video camera.
Notice item for when a DVD player is connected
COMPONENT VIDEO INPUT
When a plug is inserted in Y
terminal, the VIDEO2 display
changes to DVD.
VIDEO1
VIDEO2
TV (channel)
PC
DVD
20VL66E_En_09_12(1) 6/28/06, 2:25 PM12
