15

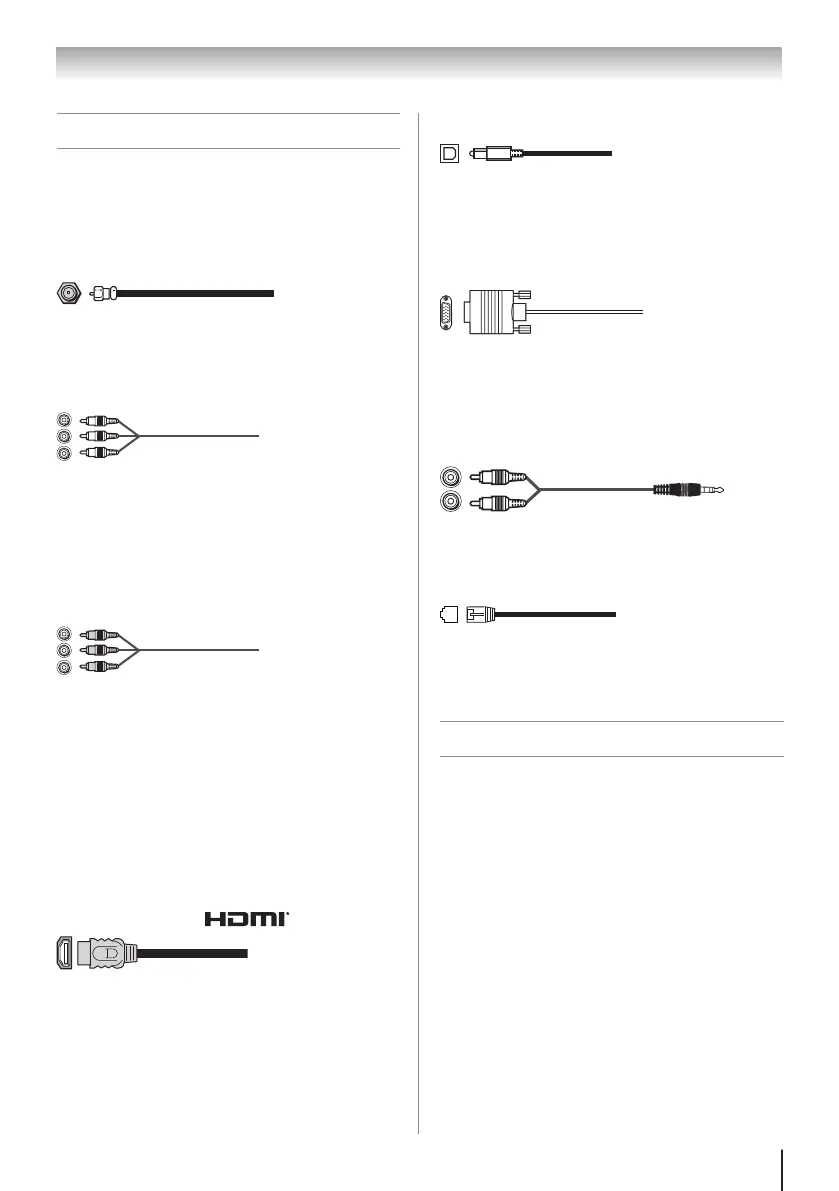

Overview of cable types
Cables can be purchased from most stores that sell audio/
video devices. Before purchasing any cables, be sure of
connector types required by your devices and the length
of each cable.
Coaxial cable (F-type)
(F-type) Coaxial cable is used for connecting your
antenna, cable TV service, and/or cable converter box
to the ANT/CABLE input on your TV.
Standard A/V cables (red/white/yellow)
Standard A/V cables (composite video) usually come
in sets of three, and are for use with video devices with
analog audio and composite video output. These cables
(and the related inputs on your TV) are typically color-
coded according to use: yellow for video, red for stereo
right audio, and white for stereo left (or mono) audio.
Component video cables (red/green/blue)
Component video cables come in sets of three and are
for use with video devices with component video output.
(ColorStream
®
is Toshiba’s brand of component video.)
These cables are typically color-coded red, green, and
blue. Separate audio cables are required for a complete
connection.
Note: Component video cables provide better
picture performance than a standard (composite)
video.
HDMI
®
cable
(with HDMI Logo “ ”)
Use it with devices built-in HDMI output. An HDMI
cable delivers digital audio and video in its native
format. Separate audio cables are not required
( pages 18-19).
Note: HDMI cables provide the best audio and
picture quality.
Optical audio cable
Optical audio cable is for connecting receivers with
Dolby Digital or PCM (pulse-code modulation) optical
audio input to the TV’s DIGITAL AUDIO OUT terminal
( page 20).
Analog RGB (15-pin) computer cable
Analog RGB (15-pin) computer cable is for connecting
a PC to the TV’s PC IN terminal ( page 20).
Note: Separate audio cables are required for a
complete connection.
3.5mm Stereo to RCA Y-cable
3.5mm Stereo to RCA Y-Cable is for connecting audio
signal from DVI device to TV.
LAN cable
Standard LAN cable is used to connect the TV to your
home network ( page 21).
Crossover LAN cable is used to connect the TV directly
to a PC ( page 21).
About the connection illustrations
You can connect different types and brands of devices to
your TV in several different configurations. The connection
illustrations in this manual are representative of typical
device connections only. The input/output terminals on
your devices may differ from those illustrated herein. For
details on connecting and using your specific devices, refer
to each device’s owner’s manual.
Chapter 2: Connecting your TV
