Toshiba 24SL415U User Manual

19

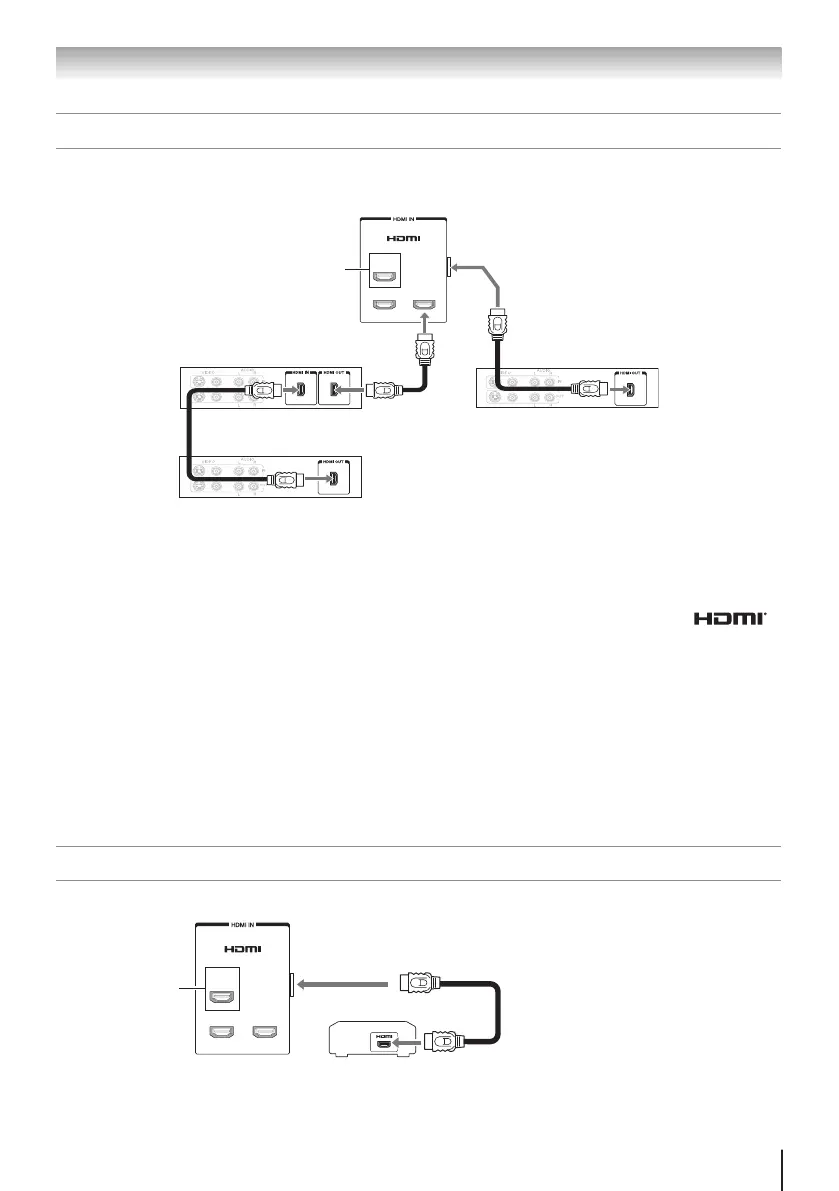

Chapter 2: Connecting your TV
HDMI cable
Using the TV remote and HDMI
®
CEC Control to control other devices
To control the basic functions of connected audio/video devices using the TV’s remote control, connect a
HDMI
®
CEC Control compatible audio receiver or playback device. The HDMI
®
CEC Control feature uses CEC
technology as regulated by the HDMI standard.
1
2
4
3
TV back panel
Audio receiver
Playback device
(HDMI
®
CEC DVD player, etc.)
Playback device
(HDMI
®
CEC DVD player, etc.)
To connect an audio receiver and playback devices, you will need:
•
HDMI cables ( page 15)
Note:
•
If several devices are connected, the HDMI
®
CEC Control feature may not operate properly.
•
For proper operation, it is recommended that you use HDMI cables with the HDMI Logo ( ).
Before controlling the devices:
•
For an explanation of setup and operations, see “Using HDMI
®
CEC Control” ( page 40).
•
Configure the connected devices. See each device’s operation manual.
Note: This feature is limited to models incorporating Toshiba’s HDMI
®
CEC Control feature. However,
Toshiba is not liable for those operations. See the individual instruction manuals for compatibility information.
When using an external AV amplifier:
The picture and sound may not be properly synchronized. In this case, adjust the delay time of the sound on the
AV amplifier.
Note: The control range of the delay time differs according to the device you use.
Connecting an HDMI audio system
If your HDMI amplifier supports ARC, audio from the TV can be sent to the amplifier via an existing HDMI cable.
You will need:
•
HDMI cable
1
2
4
3
HDMI’s ARC (Audio Return Channel) feature
This feature enables the audio signal of
the TV to be sent to an AV amplifier via
the HDMI cable. It will not be necessary
to connect a cable from the audio output
of the TV to the audio input of the AV
amplifier to reproduce the audio received
from the tuner of the TV through the AV
amplifier.
Note: Only HDMI 1 supports ARC.
24SL415U has no
HDMI 4 input
HDMI cable
AV amplifier that
supports ARC
24SL415U has no
HDMI 4 input

Toshiba 24SL415U Specifications

General

Display diagonal	24 \
Native refresh rate	60 Hz
Supported video modes	1080p
3D	No
Product color	Black
Panel mounting interface	100 x 100 mm
Analog signal format system	-
RMS rated power	10 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Smart modes	Energy saving
Package weight	8000 g

Weight and Dimensions

Depth (with stand)	233 mm
Height (with stand)	410 mm
Weight (with stand)	5502 g
Depth (without stand)	35 mm
Width (without stand)	583 mm
Height (without stand)	372 mm
Weight (without stand)	4800 g
