Toshiba 40" 1080p 60Hz LED TV
U.S.: http://support.toshiba.com Canada: http://support.toshiba.ca/support/ceg/
Component video (better)
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect a component video cable (not provided) to the Y/VIDEO, P
B, and PR jacks on the back of your TV and the
component video out jacks on the cable or satellite box.
4 Connect an audio cable (not provided) to the AUDIO L and R jacks on the back of your TV and to the audio out jacks
on the cable or satellite TV box.
5 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
6 Press INPUT to open the Input Selection list.
7 Press
S or T to highlight ColorStream HD, then press ENTER.
8 Set up the shared video jacks. See Setting up the Y/VIDEO, Pb, and Pr video jacks on page 34.
Note
Cables are often color-coded to match color-coded jacks.
Important
•The Y/VIDEO, P
B, and PR video jacks (used to connect a component
device) share the AUDIO L and R jacks with the Y/VIDEO jack (used to
connect an AV device). You can only connect one component video or
AV device at a time. We suggest upgrading to HDMI if your cable or
satellite box supports it.
• When you connect the audio using the AUDIO L and R jacks, the audio
output is analog.
Audio cable
Cable or
satellite box

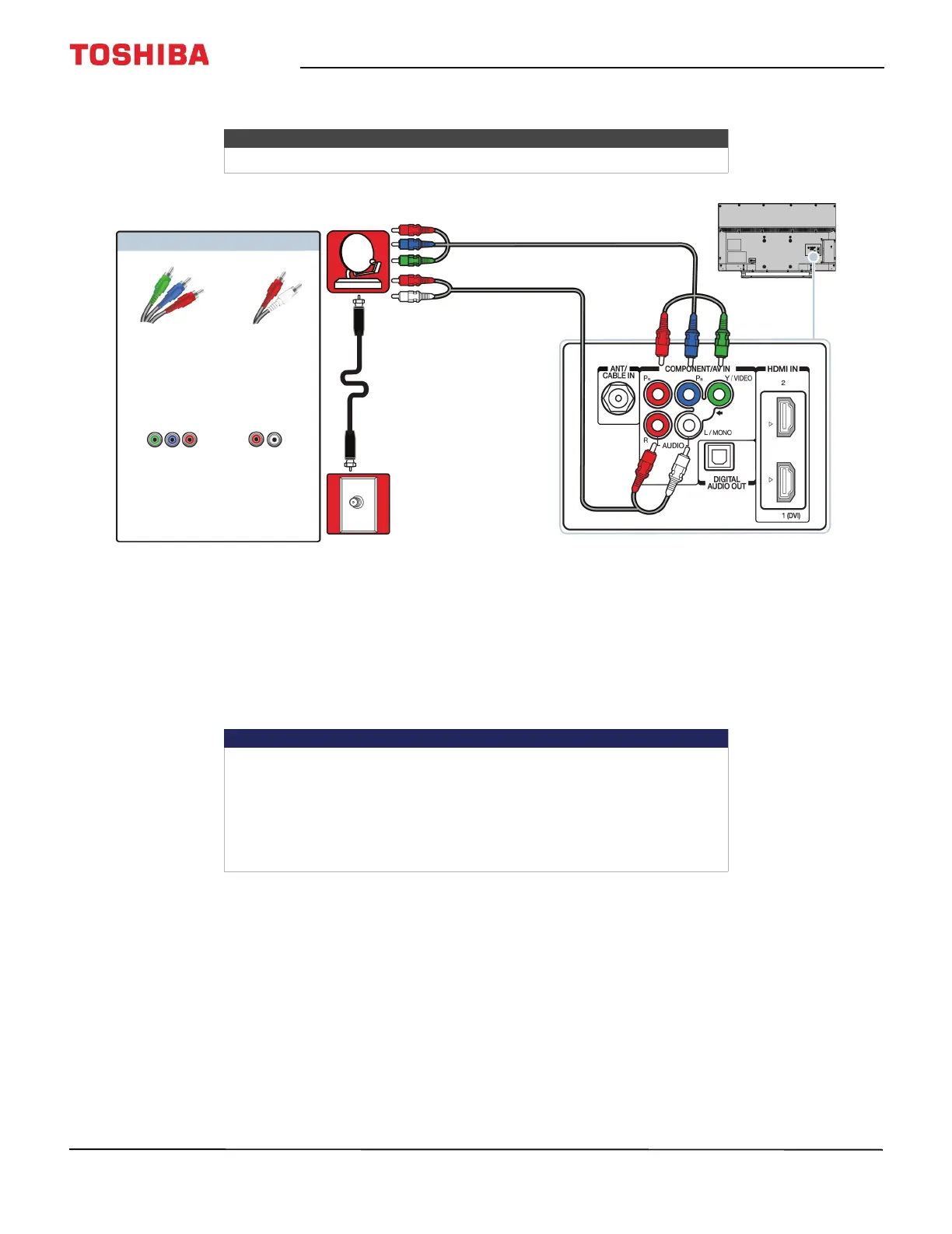

Component video cable
Back of TV
Component
video cable
connectors
Audio cable
connectors
Analog
audio jacks
Component
video jacks
On your TV
Cable
wall jack

Toshiba 40L310U Specifications

General

Screen Type	led
Wall Mount	200mm x 200mm
Screen Size	39.5 inches, 40 inches
Refresh Rate	60hz
Brightness	250 candela per square meter
Surround Sound	dts trusurround
Speakers Output	14 watts
Number Of Speakers	2
USB Ports	1
RF Antenna	yes
Network	none
Headphones Output	no
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	1
Composite Video Inputs	1
3D	no
Power Consumption	108 kilowatt hours
Depth with Stand	7.5 inches
Height with Stand	22.3 inches
Width with Stand	35.6 inches
Net Weight with Stand	21.8 pounds
Depth without Stand	2.7 inches
Height without Stand	20.2 inches
Net Weight without Stand	21.4 pounds
