25
40L310U Toshiba 40" 1080p 60Hz LED TV
U.S.: http://support.toshiba.com Canada: http://support.toshiba.ca/support/ceg/
AV (composite video) (good)
1 Make sure that your TV’s power cord is unplugged and the game console is turned off.
2 Connect the video and audio connectors on the game console’s AV cable (not provided) to the green Y/VIDEO jack
and AUDIO L and R jacks on the back of your TV and to the composite jack(s) on the game console.
3 Plug your TV’s power cord into a power outlet, then turn on your TV.
4 Turn on the game console, then set it to the correct output mode. For more information, see the documentation that
came with the console.
5 Press INPUT to open the Input Selection list.
6 Press
S or T to highlight Video, then press ENTER.
7 Set up the shared video jacks. See Setting up the Y/VIDEO, Pb, and Pr video jacks on page 34.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
Y/VIDEO jack.
Important
• Most game consoles come with a special AV cable. See the
documentation that came with your game console or check the
manufacturer’s Web site.
•The Y/VIDEO, P
B, and PR video jacks (used to connect a component
device) share the AUDIO L and R jacks with the Y/VIDEO jack (used to
connect an AV device). You can only connect one component video or
AV device at a time. We suggest upgrading to HDMI if your game
console supports it.
• When you connect the audio using the AUDIO L and R jacks, the audio
output is analog.

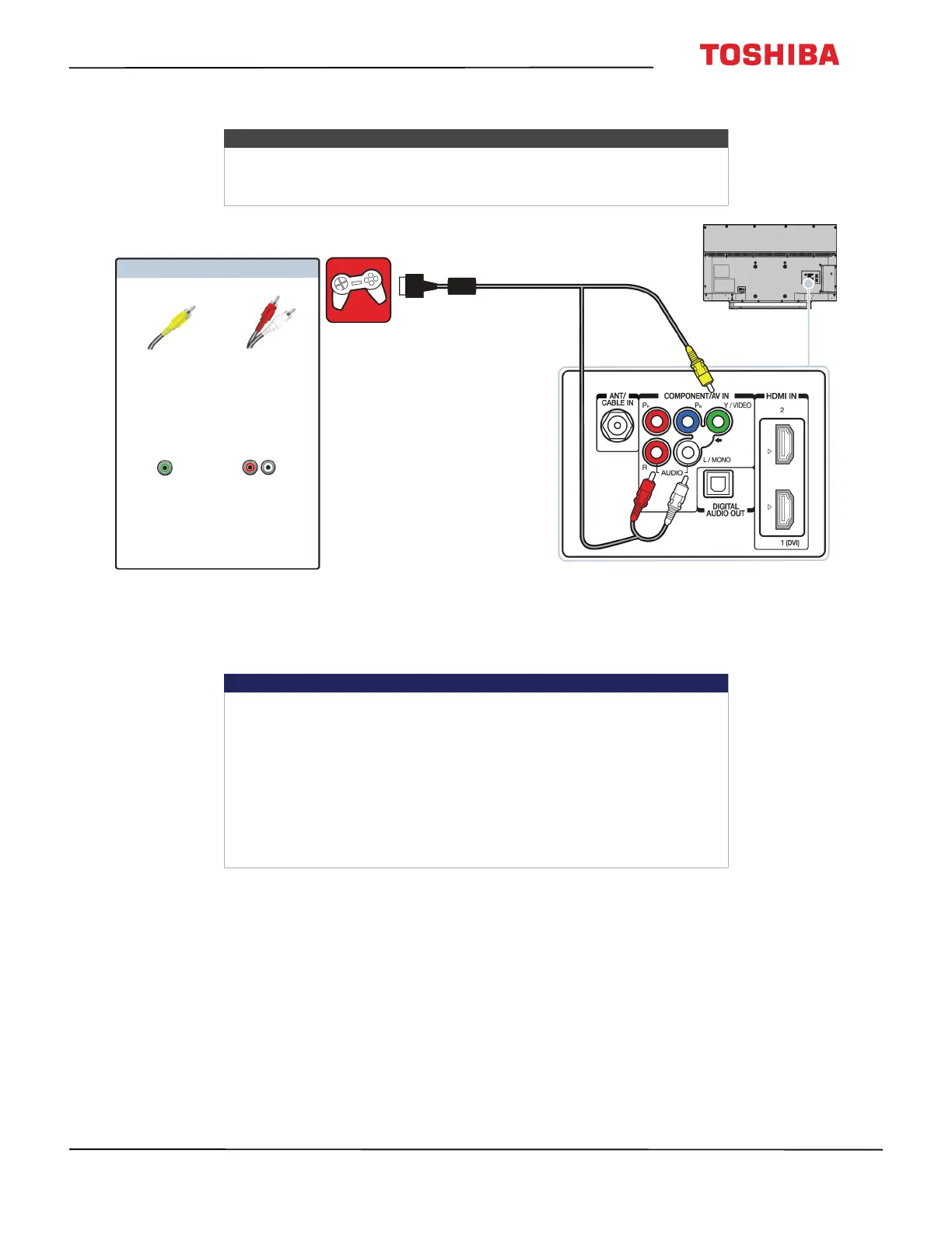

Game console
Console-specific AV cable
Back of TV
AV cable
connector
Audio cable
connectors
AV jack Analog
audio jacks
On your TV
