Toshiba 46PX200 series User Manual

31

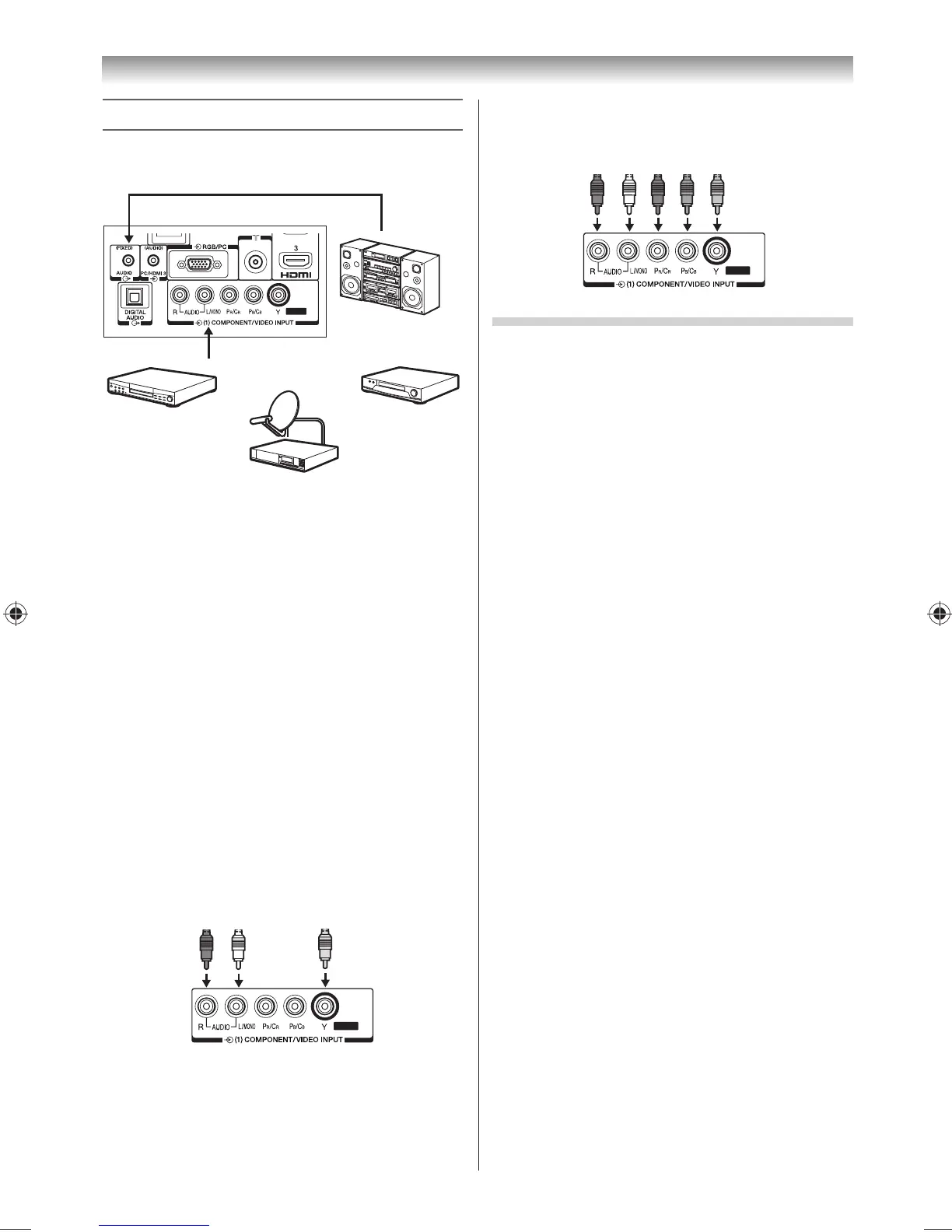

Connecting your TV
Back connections
Connection example
VCR (Normal)
DVD video player
(with component
video outputs)
Set Top Box
or
Audio system
TV back view
or
VIDEO
• Before connecting any external equipment, turn
o all main power switches.
• The unauthorized recording of TV programmes,
DVDs, video tapes and other materials may
infringe upon the provisions of copyright law.
• The COMPONENT VIDEO INPUT consists of three
component video signals (Y, PB/CB, PR/CR) and
provides the best picture performance. These
terminals can only be used with the component
video compatible equipment e.g. DVD video
player, etc.
• If you connect to COMPONENT VIDEO for the
COMPONENT / VIDEO INPUT terminals, screen
display will appear changes to COMPONENT.
• Additional equipment and cables shown are not
supplied with this TV.
Note:
o (1) COMPONENT / VIDEO INPUT terminals
Standard video mode:
Use terminals Y, L and R.
Red
Yellow
White
VIDEO
Component video mode:
Use terminals Y, PB/CB, PR/CR, L and R.
Red
(Audio)
White GreenBlueRed
VIDEO
Connecting an audio system
You can enjoy high quality dynamic sound by
connecting the TV to an audio system.
Notes:
• DO NOT connect the DIGITAL AUDIO output
terminal to the AC-3 RF input of a Dolby Digital
Receiver with a built-in Dolby Digital decoder.
• Connect the DIGITAL AUDIO output terminal to the
OPTICAL input of a receiver or processor.
• Refer to the owner’s manual of the connected
equipment as well.
• When you connect the TV to other equipment, be
sure to turn o the power and unplug all of the
equipment from the wall outlet before making any
connections.
• The output sound of the TV has a wide dynamic
range. Be sure to adjust the audio ampli er’s volume
to a moderate listening level before turning on the
power. Otherwise, the speakers and your hearing
may be damaged by sudden high volume audio.
• Turn o the ampli er before you connect or
disconnect the TV’s power cord. If you leave the
ampli er power on, the speakers may be damaged.
Warning:
When you are connecting (via the DIGITAL AUDIO
output terminal) an AV decoder that does not have
Dolby Digital decoding function, be sure to set PCM for
Digital Audio Output menu (- page 24). Otherwise,
the speakers and your hearing may be damaged by
sudden high volume audio.
324046PX200SeriesEn.indd31 2012/06/0413:21:50
