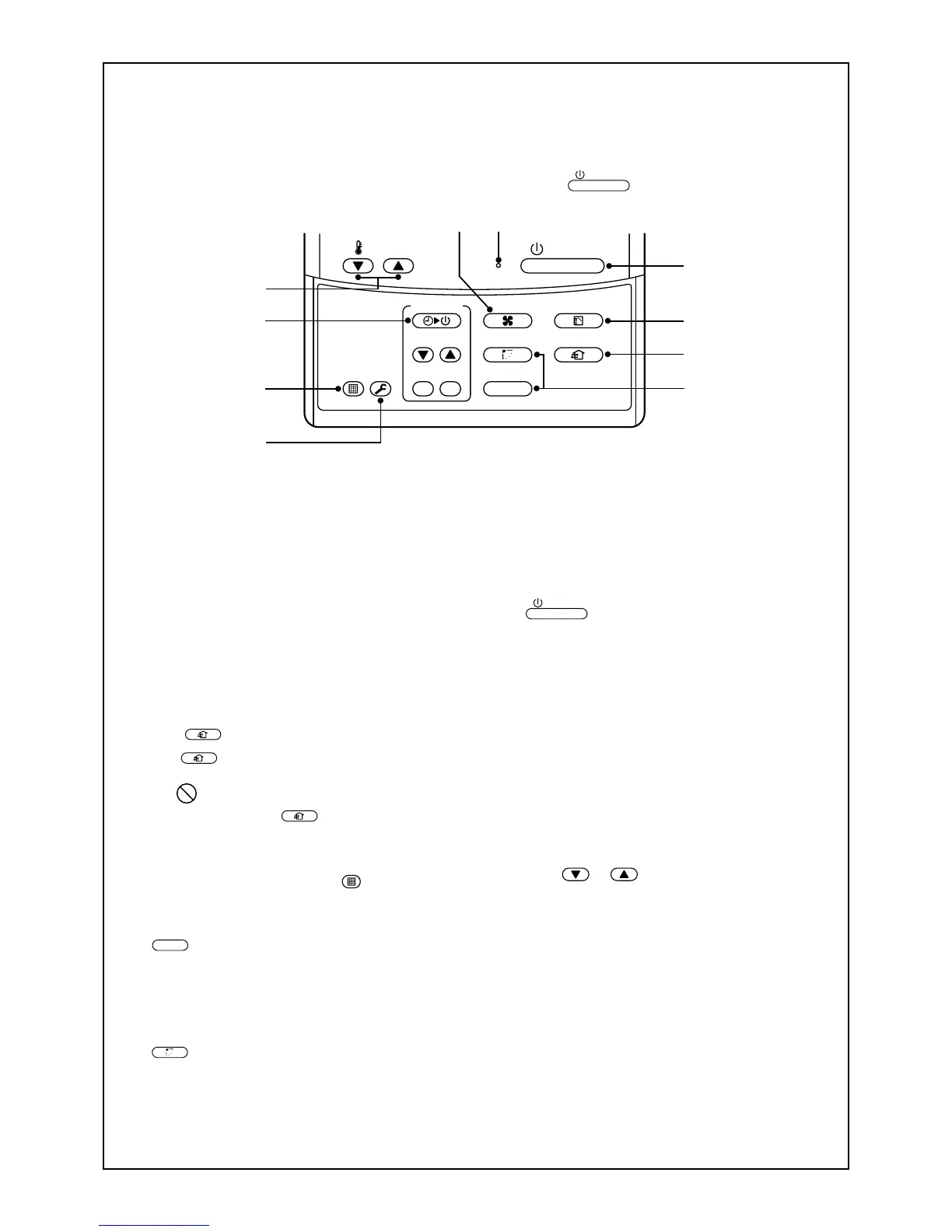

Operation section
Push each button to select a desired operation.
This remote controller can operate a maximum of 8 indoor units.
• Before the unit can begin operation, it is firstly necessary to set the units operating parameters. After this
has been completed the air conditioner can be used by pushing the
ON / OFF
button only.
1 Air volume select button
Selects the desired air volume mode.
For the Concealed Duct High Static Pressure
type models this function is unavailable.
2 Timer set button
The TIMER SET button is used when the timer
is set up.
3 Check button
The CHECK button is used to check the units
operation. During normal operation, do not use
this button.
4 Fan
VENT
button
The
VENT
button is used when a fan which is
sold on the market is connected.
• If is displayed on the remote controller
when pushing the
VENT
button, a fan is not
connected.
5 Filter reset button
Resets (Erases) the “FILTER ” display.
6 Air flow direction and Swing function
UNIT
:
If there are multiple indoor units that are con-
trolled by a single remote controller, simply
select each unit in turn for which you wish to
adjust the air flow direction.
SWING/FIX
:
Set up the auto swing and the angle of the flap.
• This function is not provided on the Concealed
Duct Standard Type, High Static Pressure
Type, Floor standing Cabinet Type, Floor
Standing Concealed Type, or Slim Duct Type.
7 Operation lamp
The light will be ON when the unit is in opera-
tion and OFF when the unit is not being used.
Note) The light will flash if a protective device
has been operated or if the timer function has
an error.
8
ON / OFF
button
When the button is pushed, the operation
starts. If the button is pressed again, the unit
operation will stop.
When the unit operation has stopped, the
operation lamp and all of the displays will
disappear.
9 Operation select button
Selects the desired operation mode.
10 Set up temperature button
Adjusts the room temperature.
Set the desired set temperature by pushing
the or buttons.
OPTION :
Remote controller sensor
In normal installations the temperature of the room
is sensed by a temperature sensor on the indoor
unit. However it is possible to have the sensor
within your remote controller. For further details
please contact your local dealer.
• In cases where one remote controller controls the
multiple indoor units, the setup operation is
unavailable in group control.
