2-4 User’s Manual
The Grand Tour
Right side

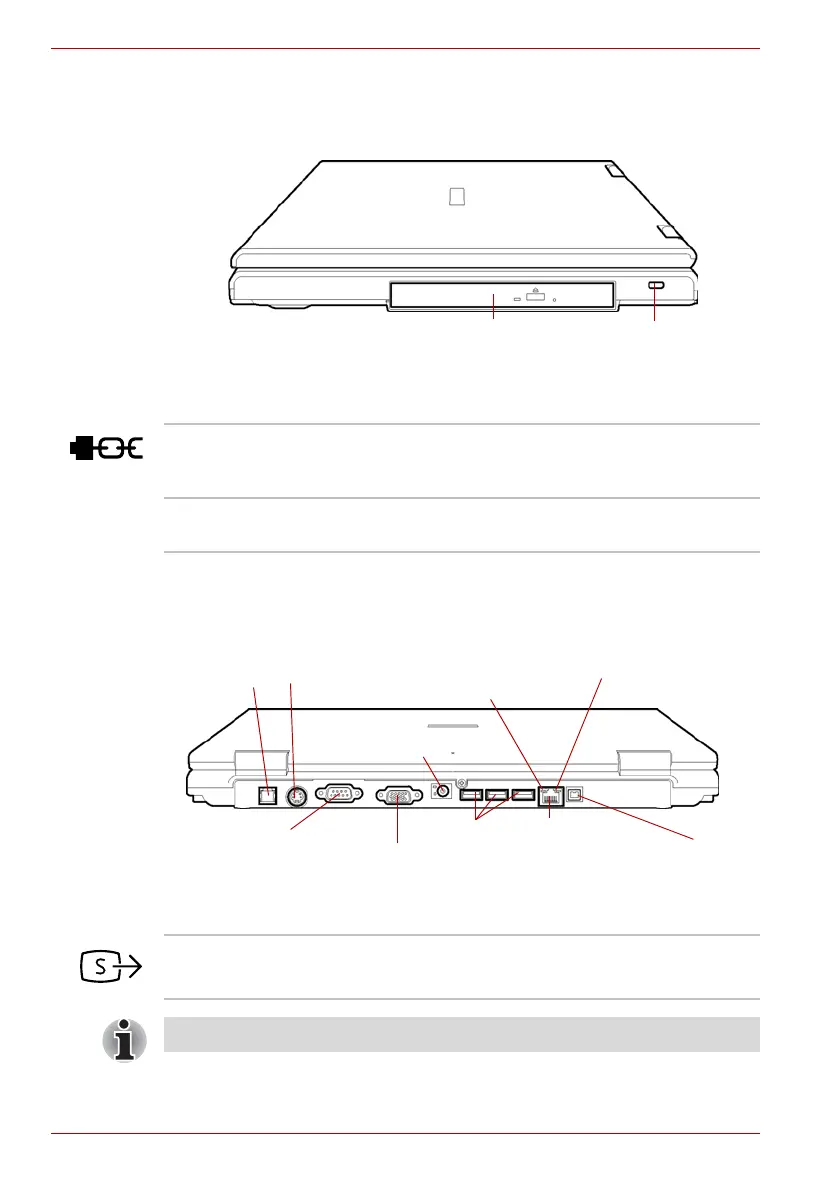

Figure 2-3 shows the computer’s right side.
Figure 2-3 The right side of the computer
Back side
Figure 2-4 shows the computer’s back side.
Figure 2-4 The back side of the computer
Optical disk drive
Security lock slot
Security lock slot A security cable attaches to this slot. The
optional security cable anchors your computer to
a desk or other large object to deter theft.
Optical disk drive A CD-ROM, DVD-ROM, DVD-ROM&CD-R/RW
drive or DVD Super Multi is installed.
DC IN 15V jack
Link indicator (green)
Video-out jack
Modem jack
LAN jack
LAN active indicator
(orange)
USB ports
Serial port
External monitor port
i.LINK (IEEE1394)
port
Video-out jack Plug an S-Video cable into this jack for video-out.
The S-Video cable carries video signal.
Depending on the model, a Video-out jack is not present.
