E6581595
F-1
6
6. Other parameters
Extended parameters are provided for sophisticated operation, fine adjustment and other special purposes. Modify
parameter settings as required. Refer to section 11 tables of extended parameters.
6.1 Input/output parameters
6.1.1 Low-speed signal
: Low-speed signal output frequency
Function
When the output frequency is f100 or more, an ON signal will be generated. This signal can be
used as an electromagnetic brake excitation/release signal. (Refer to “Motors with a brake” in
section 1.4.1 for application.)
This signal can also be used as an operation signal when is set to 0.0Hz, because an ON
signal is put out if the inverter is in output state.
Output from the open collector output terminal OUT. (Default)
Output from relay output FLA-FLB-FLC is possible depending on the parameter settings.
[Parameter setting]
Title Function Adjustment range Default setting
Low-speed signal output frequency 0.0 - (Hz) 0.0

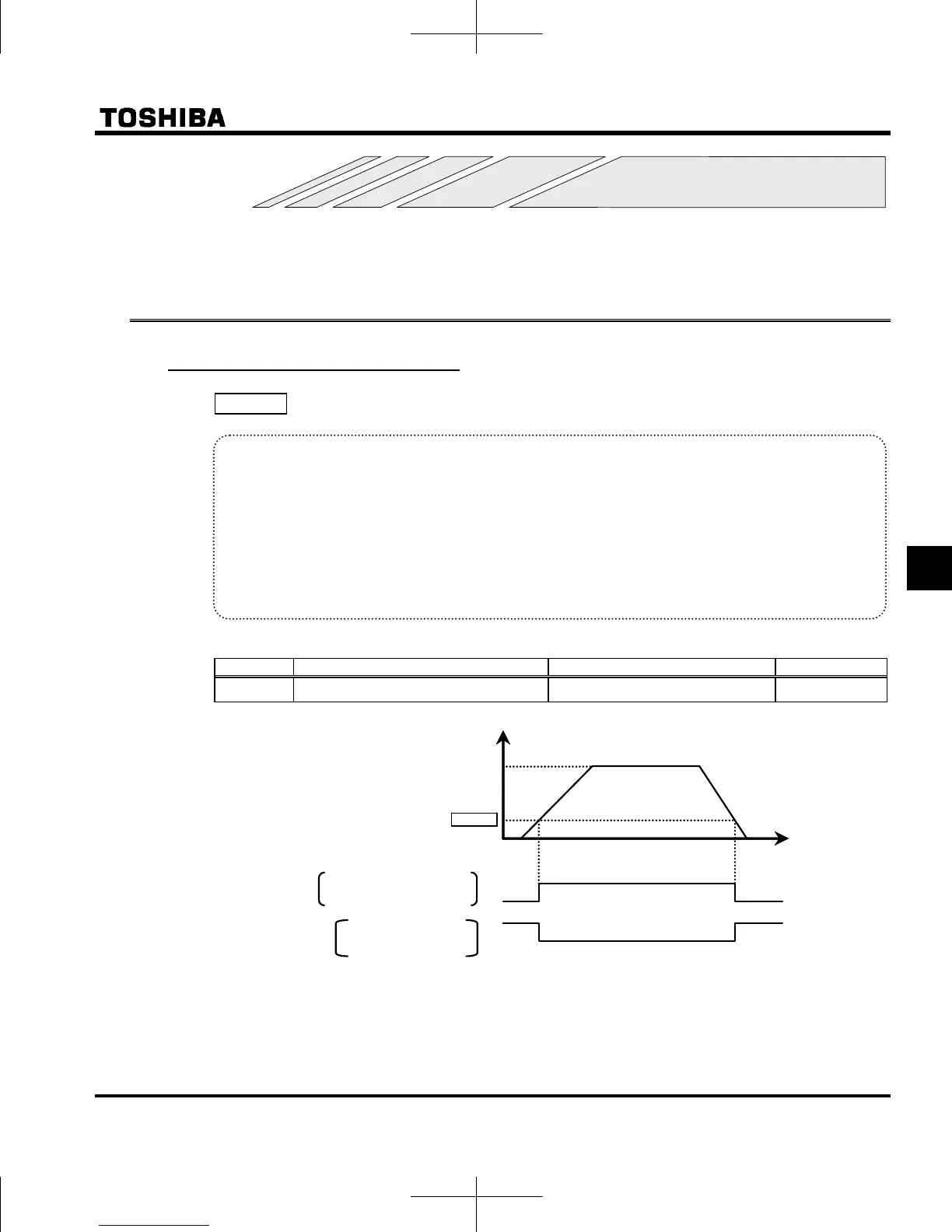

Output frequency
Time [s]
Low-speed detection signal :
OUT-NO terminals
ON
OFF
Inversion of low-speed
detection signal
ON
OFF
[Hz]
0
Setting frequency
