E6581595
C-2
3

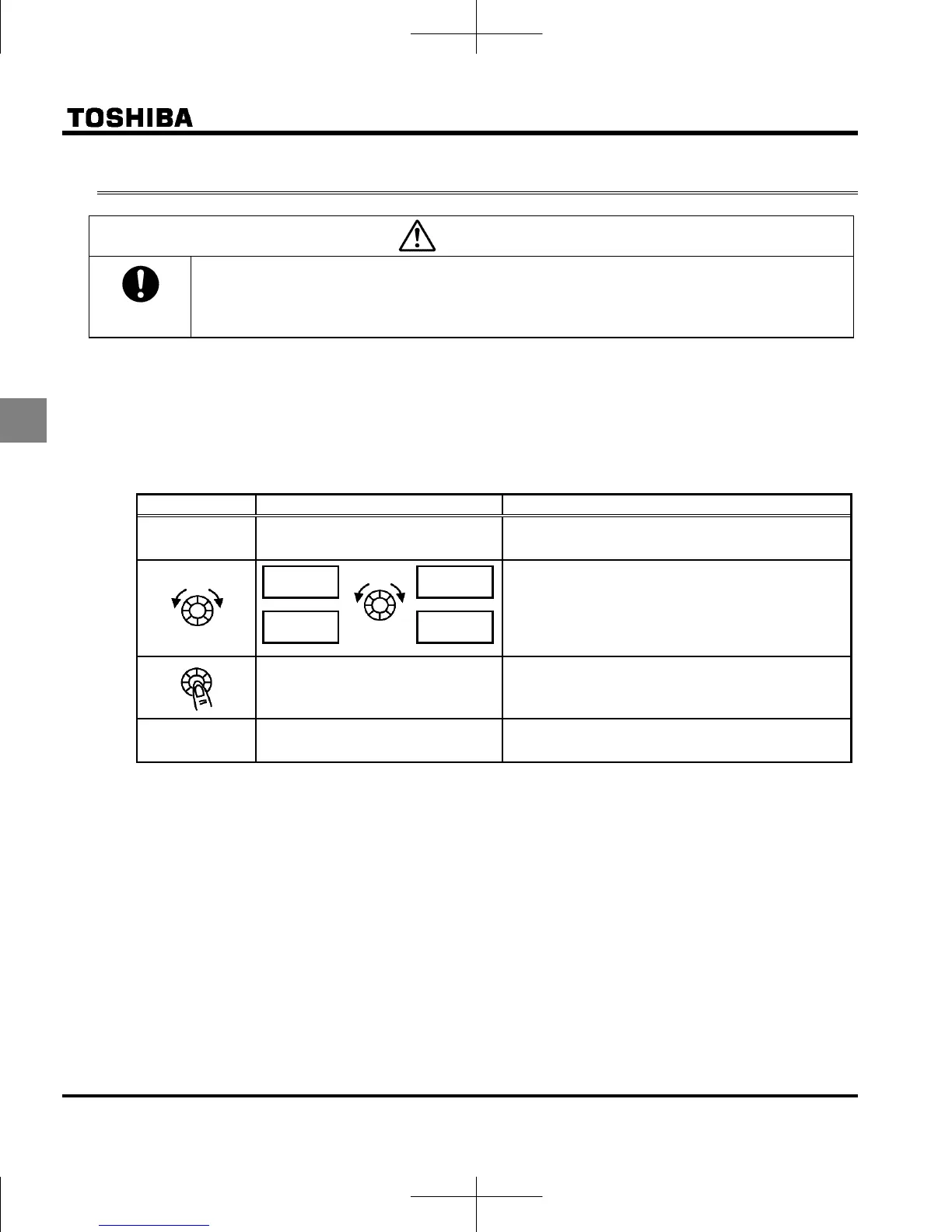

3.1 How to Set the Setup Menu
Warning
Mandatory
action
If incorrect setting, the drive may has some damage or unexpected movement. Be sure to set the
setup parameter correctly.
Set the setup menu according to the logic for control input signals used and the base frequency of the motor
connected. (If you are not sure which setup menu should be selected region codes and what values should be
specified, consult your distributer.)
Each setup menu automatically sets all parameters relating to the logic for control input signals used and the base
frequency of the motor connected. (See the table on the following page.)
Follow these steps to change the setup menu [Example: Selecting a region code to ]
Panel operated LED display Operation
Power on. (set is blinking)
Turn the setting dial, and select region code ""
(Europe).
Press the center of the setting dial to determine the
region.
The output frequency is displayed (Standby).
☆ When changing the region selected in the setup menu, the setup menu can be called again by the following
method. However, please note that all parameters will return to the default setting and the trip history data will
clear.
Set parameter to "".
Set parameter to "".
☆ The parameter settings in the table on the following page can be changed individually even after they are
selected in the setup menu.
eu
asia
jp
usa
