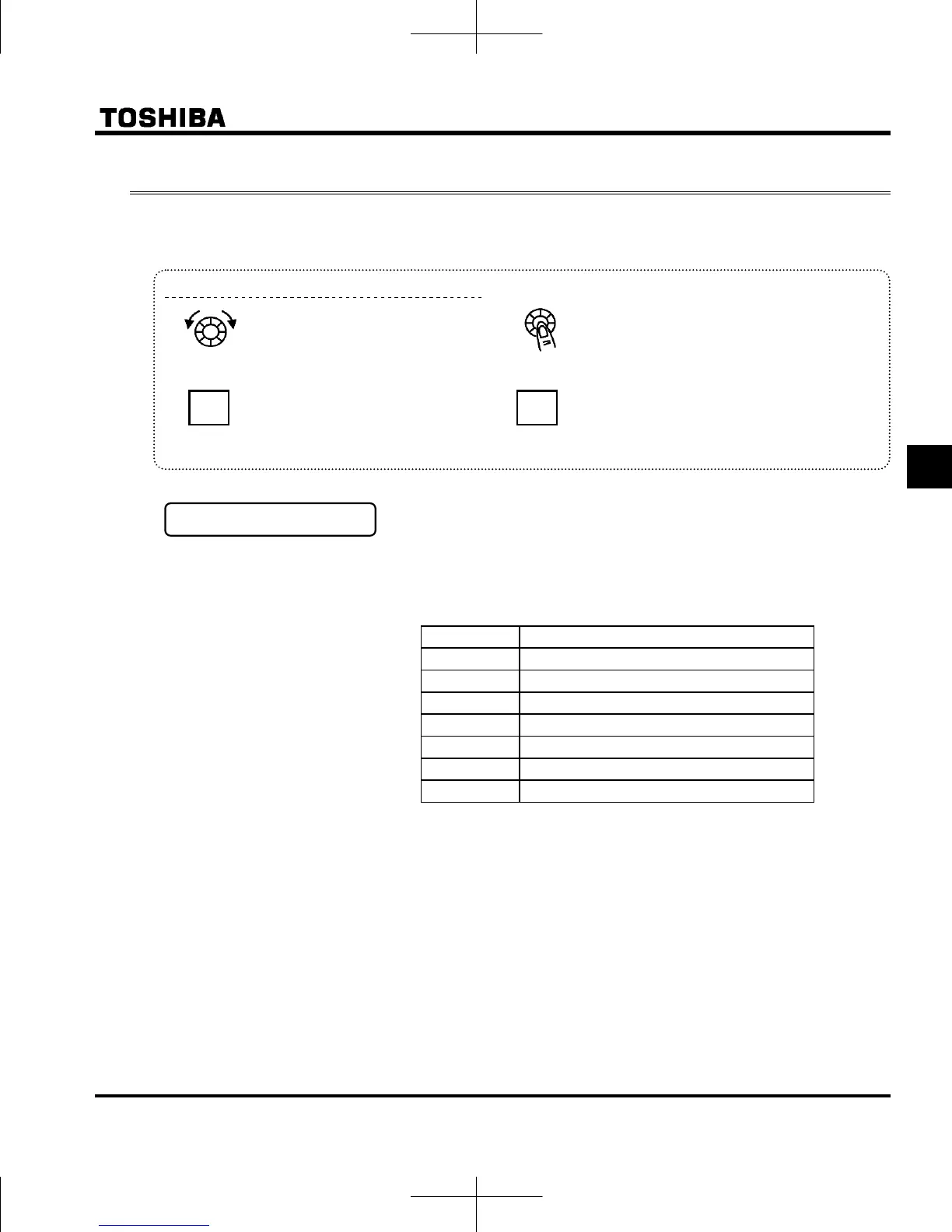

4.2 How to set parameters
There are two types of setting monitor modes: Easy mode and Standard setting mode. The mode active when power is
turned on can be selected at (EASY key mode selection), and the mode can be switched by the EASY key. Note,
however, that the switching method differs when only the Easy mode is selected. Refer to section 4.5 for details.
Setting dial and panel key operations are as follows:
Easy setting mode : The mode changes to the Easy setting mode when the
EASY key is pressed and "" is displayed.
Only the most frequently used 7 basic parameters are
displayed. (standard default)
Easy setting mode
Title Function
Command mode selection
Frequency setting mode selection
Acceleration time 1
Deceleration time 1
Motor overload protection level 1
Meter adjustment
EASY key mode selection
☆ In the Easy setting mode, the PRG lamp blinks.
☆ If the EASY key is pressed while the setting dial is being turned, values continue to be incremented or decremented
even if you release your finger from the setting dial.
This feature is handy when setting large values.
Note) Of the available parameters, number value parameters ( etc.) are reflected in actual operation when the
setting dial is turned. Note, however, that the center of the setting dial must be pressed to save values even when
the power is turned off.
Note, also, that item selection parameters ( etc.) are not reflected in actual operation by just turning the
setting dial. To reflect these parameters, press the center of the setting dial.
Pressing the center of the setting dial
Used for executing operations and determining
values. Note)
Turning the setting dial
Used to select items and incrementing/
decrementing values. Note)
EASY MODE
Used to switch between the Easy and Standard
setting modes.
Each press alternately switches between the two
modes in the standard monitor mode.
Used to select the mode and return to
the previous menu
To Next Page
