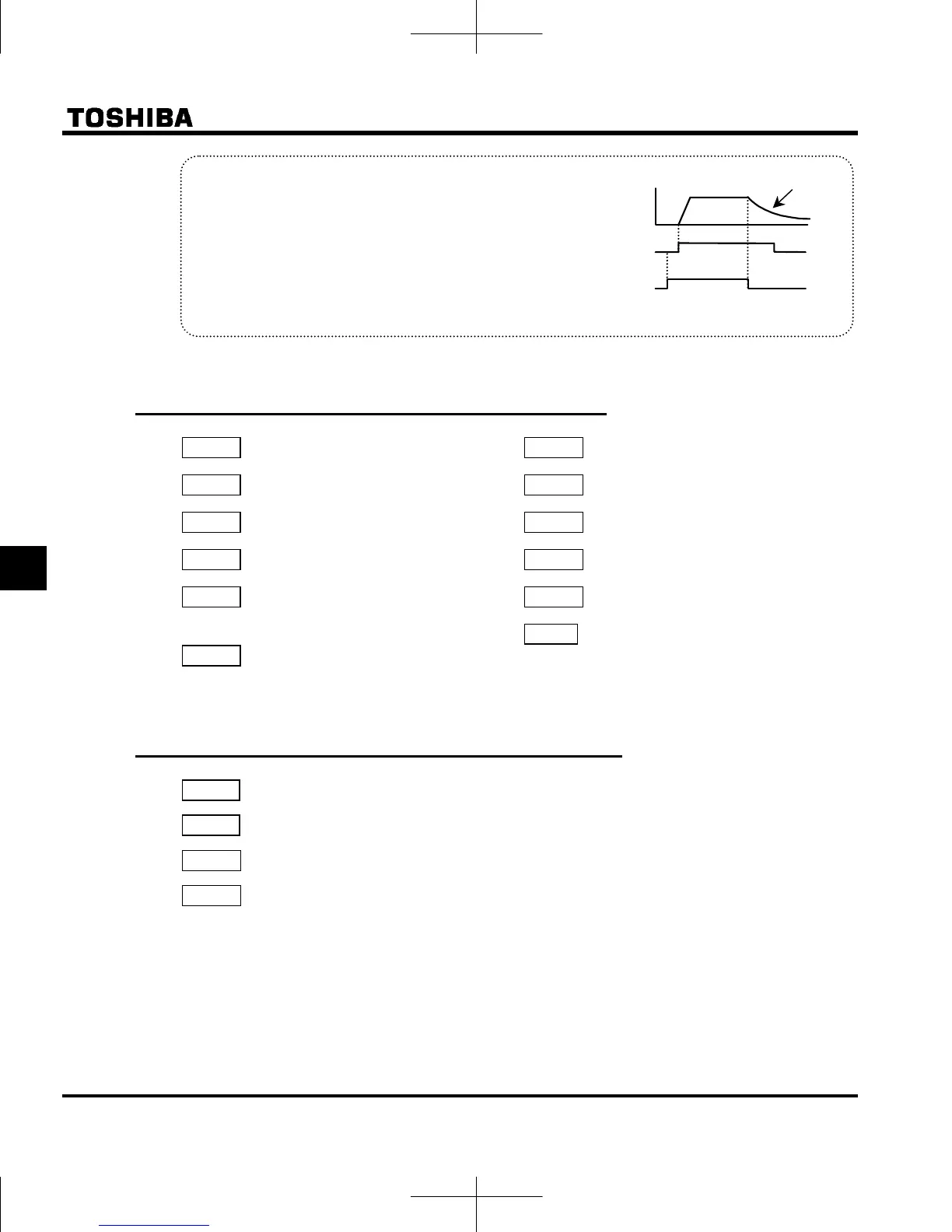

Explanation of the coast stop function
When ST (Standby) is OFF, coast stops.
The default setting for ST (Standby) is ON, change the
following settings.
 
(no function)

Assign open input terminal 6: ST (Standby).
Coast stops if terminal set for ST (Standby) is set to
OFF. The monitor on the inverter at this time displays

Motor
speed
ON
OFF
ON
OFF
F-CC
ST-CC
Coast stop
6.3.3 Modifying input terminal functions
 : Input terminal selection 1A (F)
 : Input terminal selection 2A (R)
 : Input terminal selection 3A (S1)
 : Input terminal selection 4A (S2)
 : Analog/logic input selection (VI
Terminal)
 : Input terminal selection 5 (VI)
 : Input terminal selection 1B (F)
 : Input terminal selection 2B (R)
 : Input terminal selection 3B (S1)
 : Input terminal selection 4B (S2)
 : Input terminal selection 1C (F)
 : Input terminal selection 2C (R)
 Refer to section 7.2.1 for details about input terminal functions.
6.3.4 Modifying output terminal functions
 : Output terminal selection 1A (OUT)
 : Output terminal selection 2 (FL)
 : Output terminal selection 1B (OUT)
 : Output terminal logic selection (OUT)
 Refer to section 7.2.2 for details about output terminal functions.
